1986 Suzuki GS1150EF Rear Calipers Diagram

← All diagrams

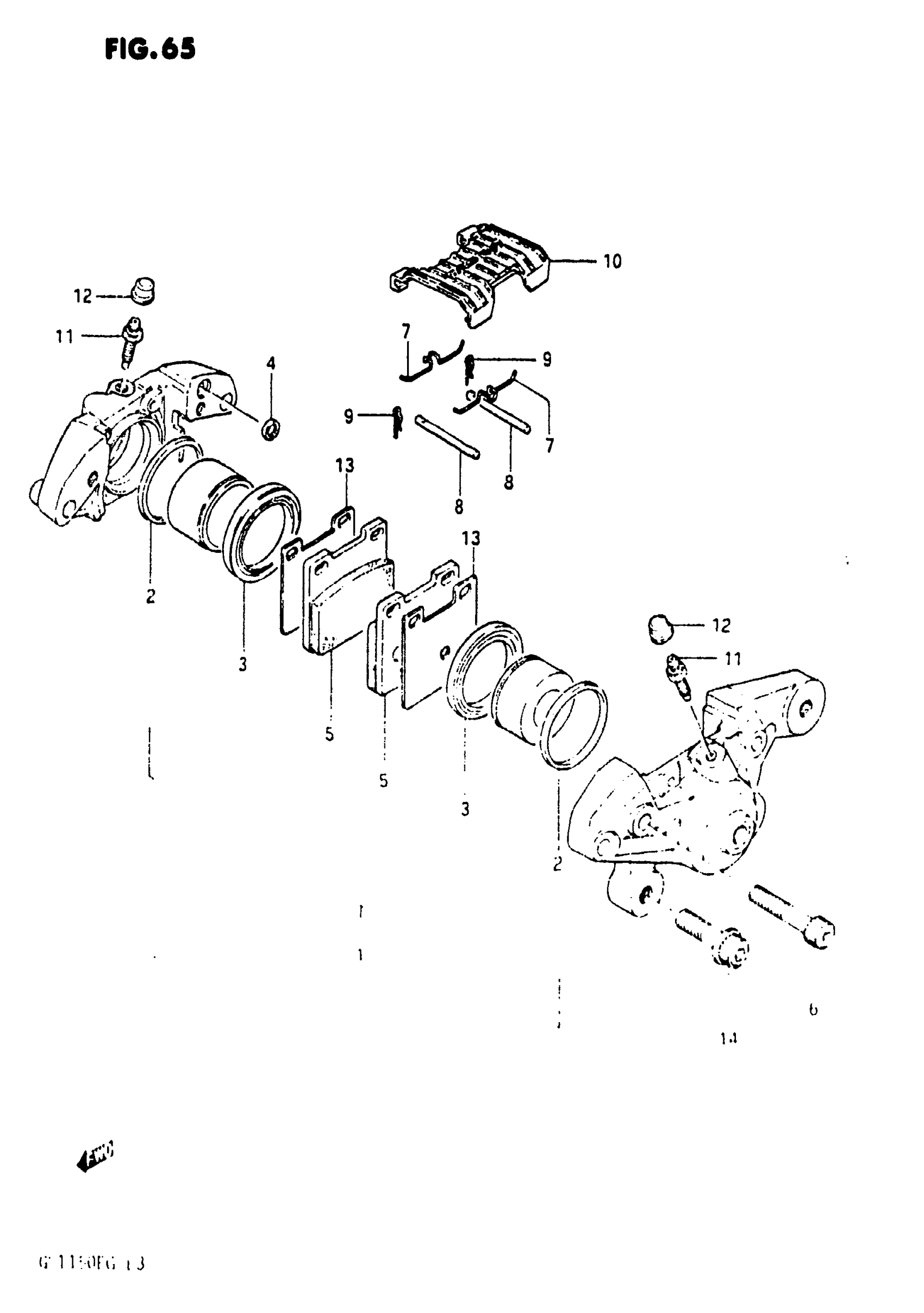

Find the part on the Rear Calipers diagram for your 1986 Suzuki GS1150EF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Suzuki GS1150EF Rear Calipers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 13 This part replaces 69100-00A00.

69100-00A10

1
Out of stock

1

PISTON SET This part replaces 69100-00810.

69100-34851

1
Out of stock

2

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

2
Out of stock

3

BOOT

69108-45000

2
Out of stock

4

SEAL

69107-34200

1
Out of stock

5

PAD SET This part replaces 59130-00A00.

59100-00810

2
Out of stock

6

BOLT, HOUSING

59145-00A00

2
Out of stock

7

SPRING

59143-16700

2
Out of stock

8

PIN

69141-45000

2
Out of stock

9

.CLIP, PAD PIN

69142-45000

2
Out of stock

10

COVER This part replaces 59151-00A00.

59151-00A01

1
Out of stock

11

BREATHER

59121-18410

2
Out of stock

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

2
Out of stock

13

SHIM

59371-33410

2
Out of stock

14

NO DESCRIPTION AVAILABLE This part replaces 09106-10026.

09106-10026-XC0

2
Out of stock
