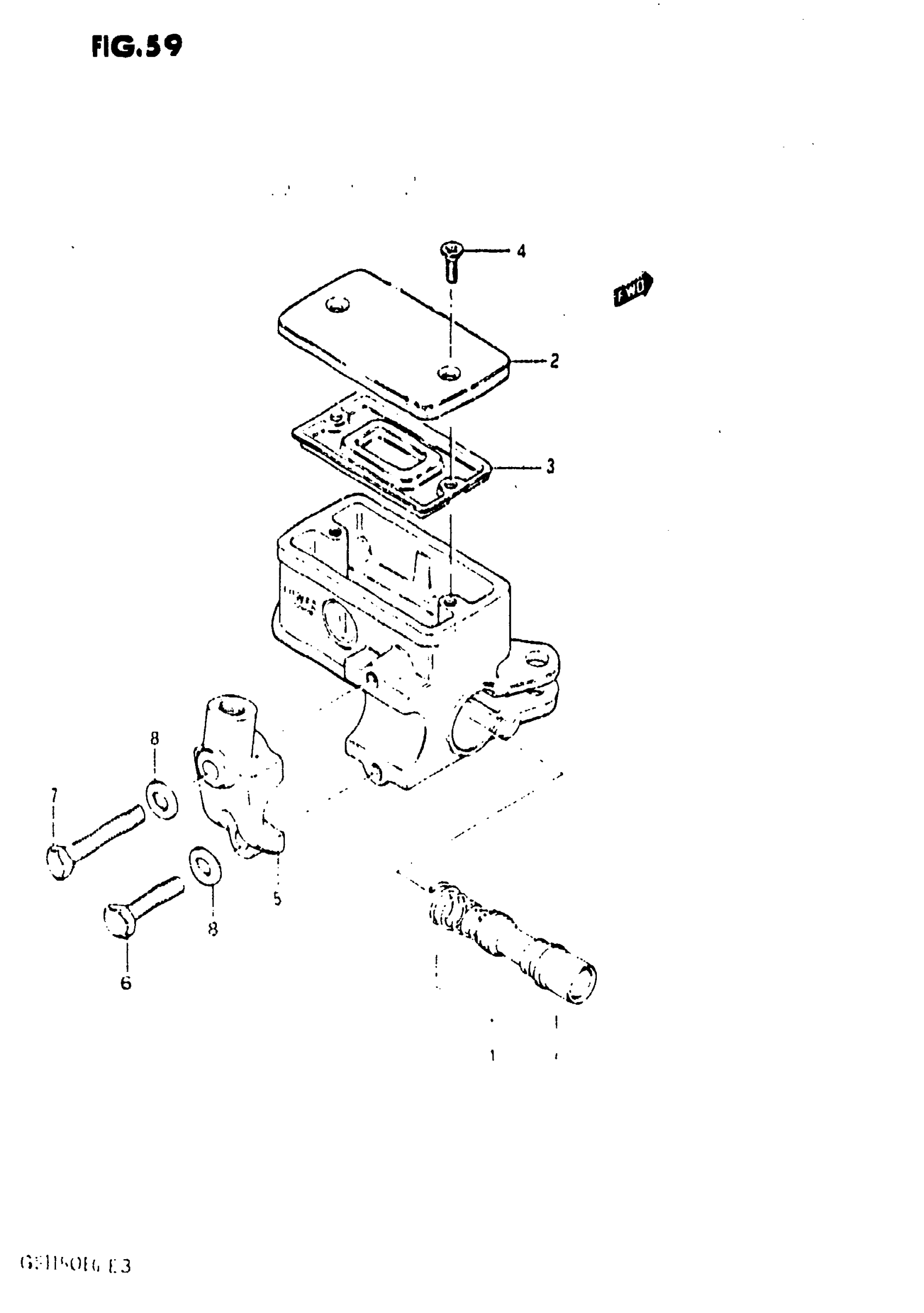

Suzuki GS1150EF (1986) FRONT MASTER CYLINDER (GS1150EF/EF2/EG) Diagram

#

Description

Price

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 8 This part replaces 59600-45420.

59600-45X51

Unavailable

1

PISTON / CUP SET

59600-45831

Unavailable

2

CAP This part replaces 69669-49350.

59669-41C00

$30.66

3

DIAPHRAGM This part replaces 69667-49300.

59667-49460

$8.95

4

SCREW, CAP

69689-49300

$1.81

5

HOLDER

59671-44300

$19.60

6

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.77

7

BOLT This part replaces 01107-06405.

01500-0640B

$2.64

8

.WASHER This part replaces 08322-21064.

08322-0106B

$2.24
