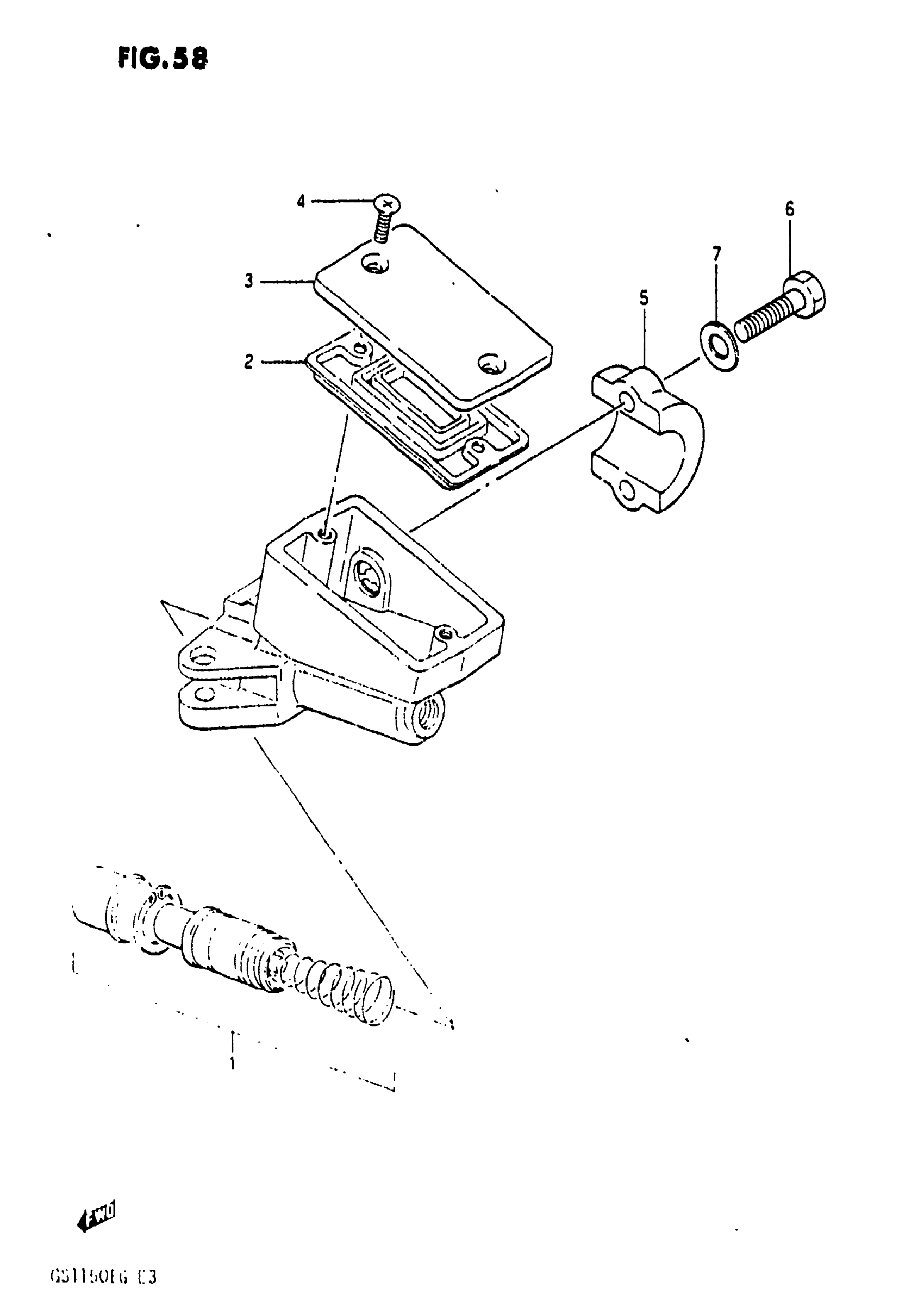

Suzuki GS1150EF (1986) FRONT MASTER CYLINDER (GS1150ES3/ESE/ESF) Diagram

#

Description

Price

0

MASTER CYLINDER ASSY, FRONT | Includes Item(s) 1 - 7

59600-08A10

Unavailable

1

PISTON & CAP SET

59600-45860

$37.77

2

DIAPHRAGM

59667-49460

$9.36

3

CAP This part replaces 69669-49350.

59669-41C00

$32.03

4

SCREW

69689-49300

$1.81

5

HOLDER This part replaces 59671-16700.

59671-19B00

$22.65

6

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.82

7

.WASHER This part replaces 08322-21064.

08322-0106B

$2.31
