1984 Suzuki GS1150 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1984 Suzuki GS1150, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

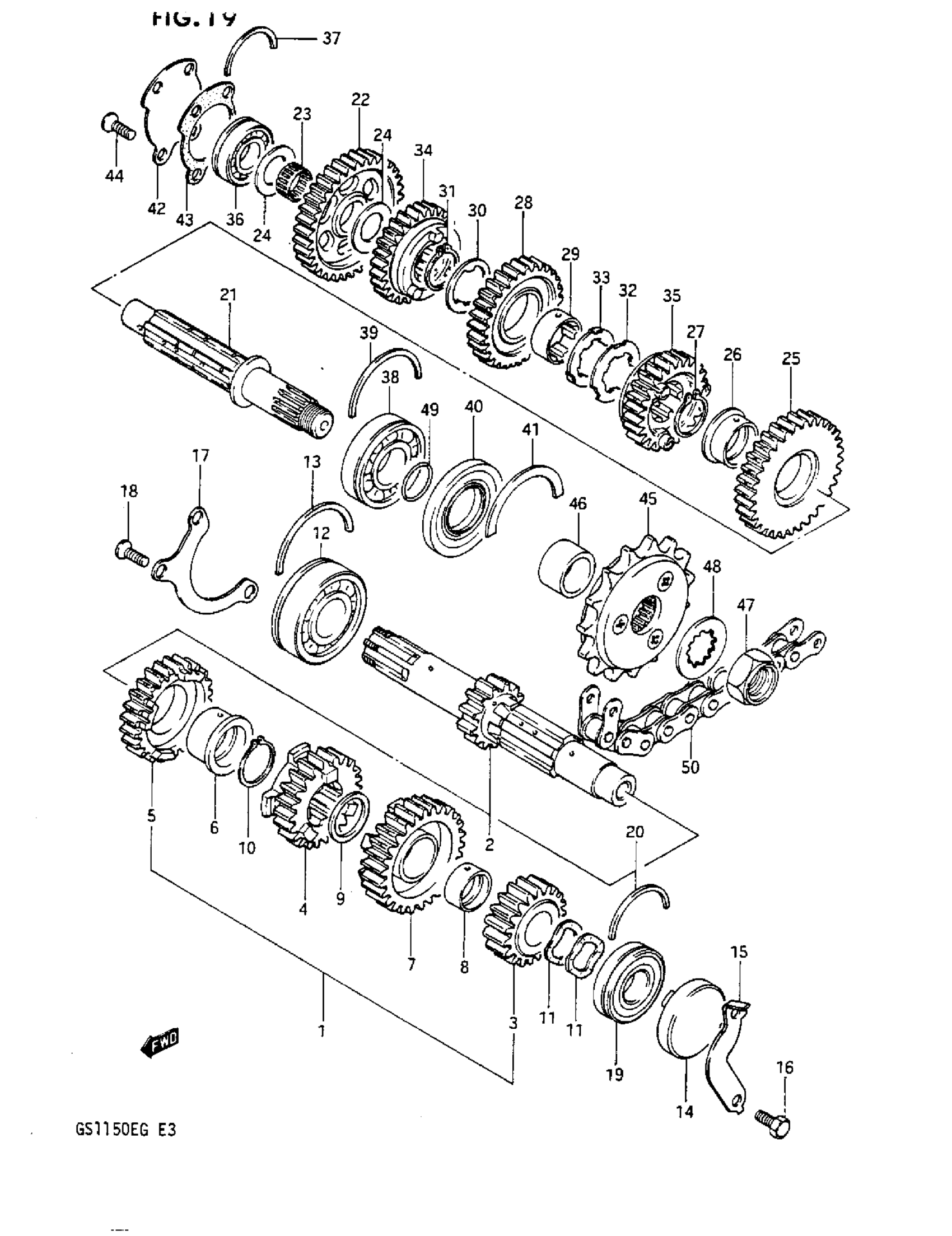

1984 Suzuki GS1150 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT ASSY

24120-00A01

1
Out of stock

2

COUNTERSHAFT (NT:14)

24100-00811

1
Out of stock

3

GEAR, 2ND DRIVE (NT:18)

24221-49202

1
Out of stock

4

GEAR, 3RD DRIVE (NT:21)

24231-49200

1
Out of stock

5

GEAR, 4TH DRIVE (NT:24)

24241-00A00

1
Out of stock

6

BUSH

09301-28001

1
Out of stock

7

GEAR, 5TH DRIVE (NT:26)

24251-00A00

1
Out of stock

8

BUSH, 1ST DRIVEN This part replaces 09300-22005.

24312-02F00

1
Out of stock

9

WASHER

08211-22321

1
Out of stock

10

CIRCLIP This part replaces 08331-11289.

08331-31289

1
Out of stock

11

WAVE WASHER

09164-20004

2
Out of stock

12

BEARING, LH This part replaces 09262-25051.

09262-25105

1
Out of stock

13

C RING This part replaces 09390-62006.

09390-62012

1
Out of stock

14

PLUG, COUNTERSHAFT LH

09241-47004

1
Out of stock

15

HOLDER

23117-45000

1
Out of stock

16

BOLT This part replaces 01107-06128.

01500-06127

2
Out of stock

17

HOLDER, BEARING

24741-45000

1
Out of stock

18

SCREW This part replaces 02122-06168.

02122-06167

3
Out of stock

19

BEARING, LH

09262-20044

1
Out of stock

20

C RING

09390-47003

1
Out of stock

21

DRIVESHAFT

24131-00A00

1
Out of stock

22

GEAR, 1ST DRIVEN (NT:35)

24311-49200

1
Out of stock

23

BEARING

09263-20018

1
Out of stock

24

WASHER

08211-20341

2

$3.05

In stock

25

GEAR, 2ND DRIVEN (NT:32)

24321-00A00

1
Out of stock

26

BUSH

09301-28001

1
Out of stock

27

CIRCLIP This part replaces 08331-11289.

08331-31289

1
Out of stock

28

GEAR 3RD DRIVEN This part replaces 24331-49201.

24331-49202

1
Out of stock

29

BUSH

24332-49000

1
Out of stock

30

WASHER, RH

09167-28001

1
Out of stock

31

CIRCLIP This part replaces 08331-11289.

08331-31289

1
Out of stock

32

WASHER, LH (T:1.5)

09167-28002

1
Out of stock

33

WASHER, LH (T:1.0)

09169-28001

1
Out of stock

34

GEAR, 4TH DRIVEN (NT:27)

24341-00A00

1
Out of stock

35

GEAR, 5TH DRIVEN (NT:25)

24351-00A00

1
Out of stock

36

BEARING, LH This part replaces 09262-20041.

09262-20044

1
Out of stock

37

C RING

09390-47003

1
Out of stock

38

BEARING, LH This part replaces 09262-25068.

09262-25103

1
Out of stock

39

C RING This part replaces 09390-62006.

09390-62012

1
Out of stock

40

OIL SEAL

09283-32027

1
Out of stock

41

C RING

09390-62008

1
Out of stock

42

PLATE

24761-45000

1
Out of stock

43

GASKET,DR SHFT This part replaces 24762-45000.

24762-45000-H17

1
Out of stock

44

SCREW This part replaces 02122-06168.

02122-06167

4
Out of stock

45

SPROCKET ASSY,E This part replaces 27510-49011.

27510-49012

1
Out of stock

46

SPACER (25X32X2L.6)

09180-25074

1
Out of stock

47

1

$15.18

In stock

48

WASHER (25.3X41.6X1) This part replaces 09167-25014.

09167-25019

1
Out of stock

49

O-RING (D:1, ID:24.5)

09280-25001

1
Out of stock

50

CHAIN, DRIVE (630YLx102LE) | RK This part replaces 27600-00A20.

27600-00A11

1
Out of stock

50

CHAIN, DRIVE (630YLX102LE) | DID

27600-00A11

1
Out of stock
