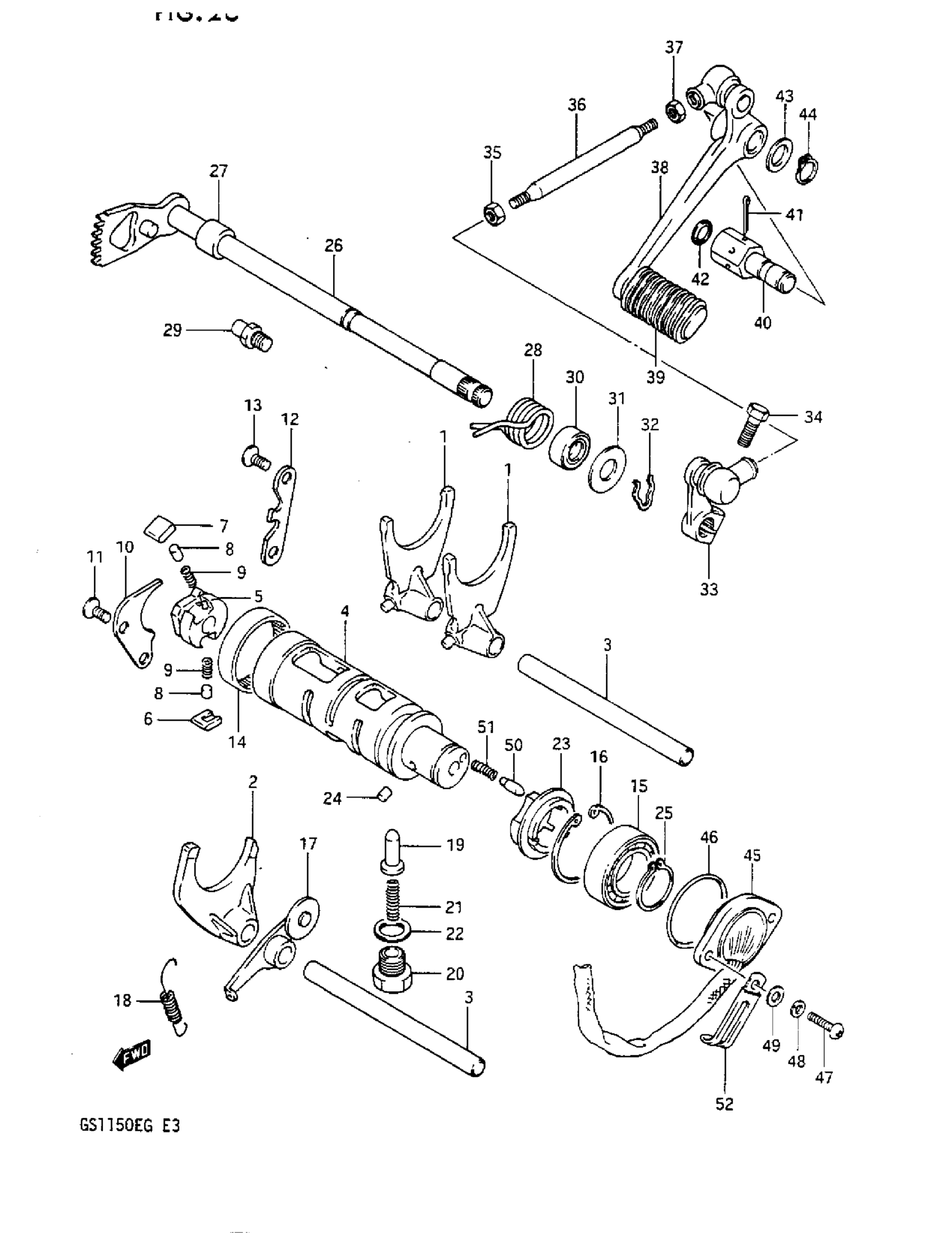

Find the part on the Gear Shifting diagram for your 1984 Suzuki GS1150, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Suzuki GS1150 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, SHIFTING NO.1

25211-49200

2

$98.00

In stock

2

FORK, SHIFTING NO.3

25231-49201

1
Out of stock

3

2

$21.17

In stock

4

CAM, GEAR SHIFTING

25310-49200

1
Out of stock

5

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

1
Out of stock

8

PIN

09261-05003

2
Out of stock

9

SPRING

09440-04003

2

$1.76

In stock

10

LIFTER, PAWL

25331-49201

1
Out of stock

11

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

12

GUIDE, CAM

25341-18000

1
Out of stock

13

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

14

BEARING, RH

09263-43001

1

$36.05

In stock

15

BEARING This part replaces 08110-69050.

08113-69050

1
Out of stock

16

1

$2.61

In stock

17

STOPPER, CAM

25350-00A00

1
Out of stock

18

SPRING

09443-08019

1
Out of stock

19

1

$13.50

In stock

20

HOLDER, STOPPER

25354-30000

1

$10.35

In stock

21

SPRING

09440-06020

1
Out of stock

22

GASKET

09168-14004

1

$1.96

In stock

23

PLATE, STOPPER

25381-49200

1
Out of stock

24

PIN This part replaces 06211-04063.

04221-04069

1
Out of stock

26

SHAFT, GEAR SHIFTING

25510-00A00

1
Out of stock

27

SPACER (12X20X15.3)

09180-12068

1

$4.03

In stock

28

SPRING

09444-26017

1

$5.00

In stock

29

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

30

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

32

CIRCLIP This part replaces 09384-12001.

08331-3112A

1
Out of stock

33

1

$48.45

In stock

34

1

$2.48

In stock

35

1

$1.82

In stock

36

NO DESCRIPTION AVAILABLE This part replaces 25525-33400.

25525-00A10

1
Out of stock

36

NO DESCRIPTION AVAILABLE This part replaces 25525-00A01.

25525-00A10

1
Out of stock

37

NUT

09140-06011

1

$1.47

In stock

38

LEVER ASSY, SHIFTING

25600-00A01

1
Out of stock

39

COVER

25652-49300

1

$5.21

In stock

40

SHAFT, GEAR SHIFTING LEVER

25617-00A02

1
Out of stock

41

1

$1.58

In stock

42

1

$5.25

In stock

43

WASHER (12.5X20X1)

09160-12011

1
Out of stock

44

CIRCLIP This part replaces 08331-31128.

08331-3112A

1
Out of stock

45

BODY GEAR SHIFT This part replaces 37720-49211.

37720-24A01

1
Out of stock

46

O-RING (D:2.4, ID:36.2)

09280-36001

1
Out of stock

47

SCREW

09125-05102

2

$1.86

In stock

48

LOCK WASHER This part replaces 08321-21057.

08321-0105A

2
Out of stock

49

2

$2.33

In stock

50

CONTACT

09209-05011

1
Out of stock

51

SPRING

09440-04010

1
Out of stock

52

1

$1.86

In stock
