1984 Suzuki GS1150 Clutch Diagram

← All diagrams

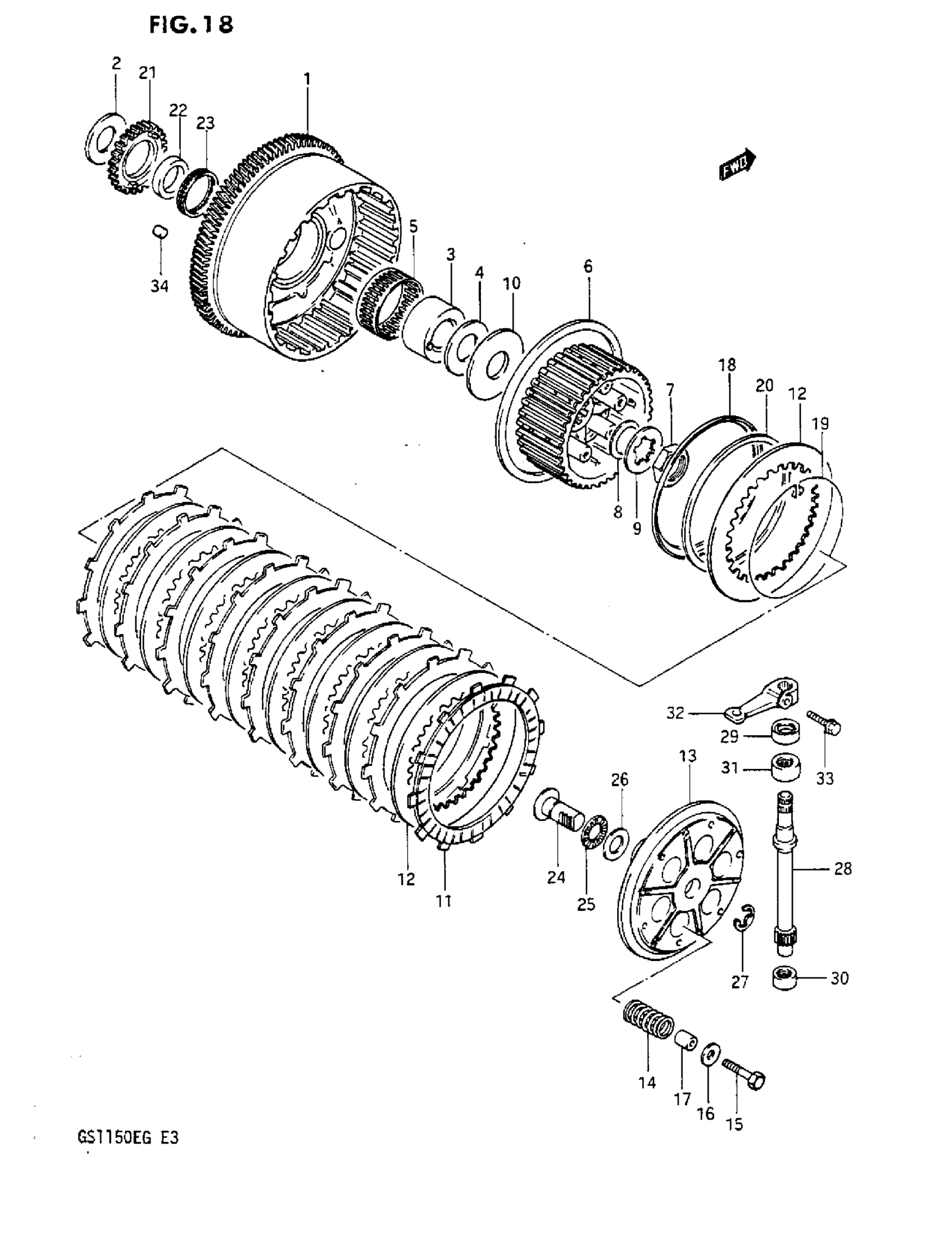

Find the part on the Clutch diagram for your 1984 Suzuki GS1150, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Suzuki GS1150 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | GS550ES3/ESE MODEL F/F2 This part replaces 21200-00A00.

21200-00A03

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 21200-00A02.

21200-00A03

1
Out of stock

2

WASHER

09160-25055

1
Out of stock

3

SPACER

21251-09300

1
Out of stock

4

SHIM (T:1.0)

21261-09300

1
Out of stock

4

SHIM (T:1.05)

21262-09300

1
Out of stock

4

SHIM (T:1.1)

21263-09300

1
Out of stock

4

SHIM (T:1.15)

21264-09300

1
Out of stock

4

SHIM (T:1.2)

21265-09300

1
Out of stock

5

BEARING

09263-51002

1
Out of stock

6

HUB, SLEEVE

21410-00A00

1
Out of stock

7

NUT This part replaces 09140-24011.

09140-24014

1
Out of stock

8

WASHER

09164-24006

1
Out of stock

9

WASHER

09167-25007

1
Out of stock

10

WASHER

09160-25022

1
Out of stock

11

PLATE, DRIVE (T:3) This part replaces 21441-49200.

21441-31D00

9
Out of stock

12

PLATE, DRIVEN

21451-49200

9
Out of stock

13

DISC, PRESSURE

21462-49201

1
Out of stock

14

SPRING

09440-19014

6
Out of stock

15

BOLT, REAR This part replaces 01107-06308.

01500-06307

6
Out of stock

16

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

6
Out of stock

17

SPACER (6.2X12X14) This part replaces 09180-06088.

09180-06174

6
Out of stock

18

SEAT, WAVE WASHER

21471-49100

1
Out of stock

19

RING, STOPPER

21481-45100

1
Out of stock

20

WAVE WASHER

09164-00003

1
Out of stock

21

GEAR, OIL PUMP DRIVE (NT:34)

16321-49000

1
Out of stock

22

SPACER

16325-45001

1
Out of stock

23

BEARING

09263-36002

1
Out of stock

24

RACK, RELEASE

23165-49201

1
Out of stock

25

BEARING

09263-15003

1
Out of stock

26

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

1
Out of stock

27

E-RING This part replaces 08332-11128.

08332-1112A

1
Out of stock

28

PINION, RELEASE

23261-45400

1
Out of stock

29

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

30

BEARING (12X19X12)

09263-12014

1
Out of stock

31

BEARING (15X22X12)

09263-15012

1
Out of stock

32

ARM, RELEASE

23271-45400

1
Out of stock

33

BOLT This part replaces 01547-06208.

01547-06207

1
Out of stock

34

CUSHION,PRIMARY This part replaces 21215-49000.

21215-49001

1
Out of stock
