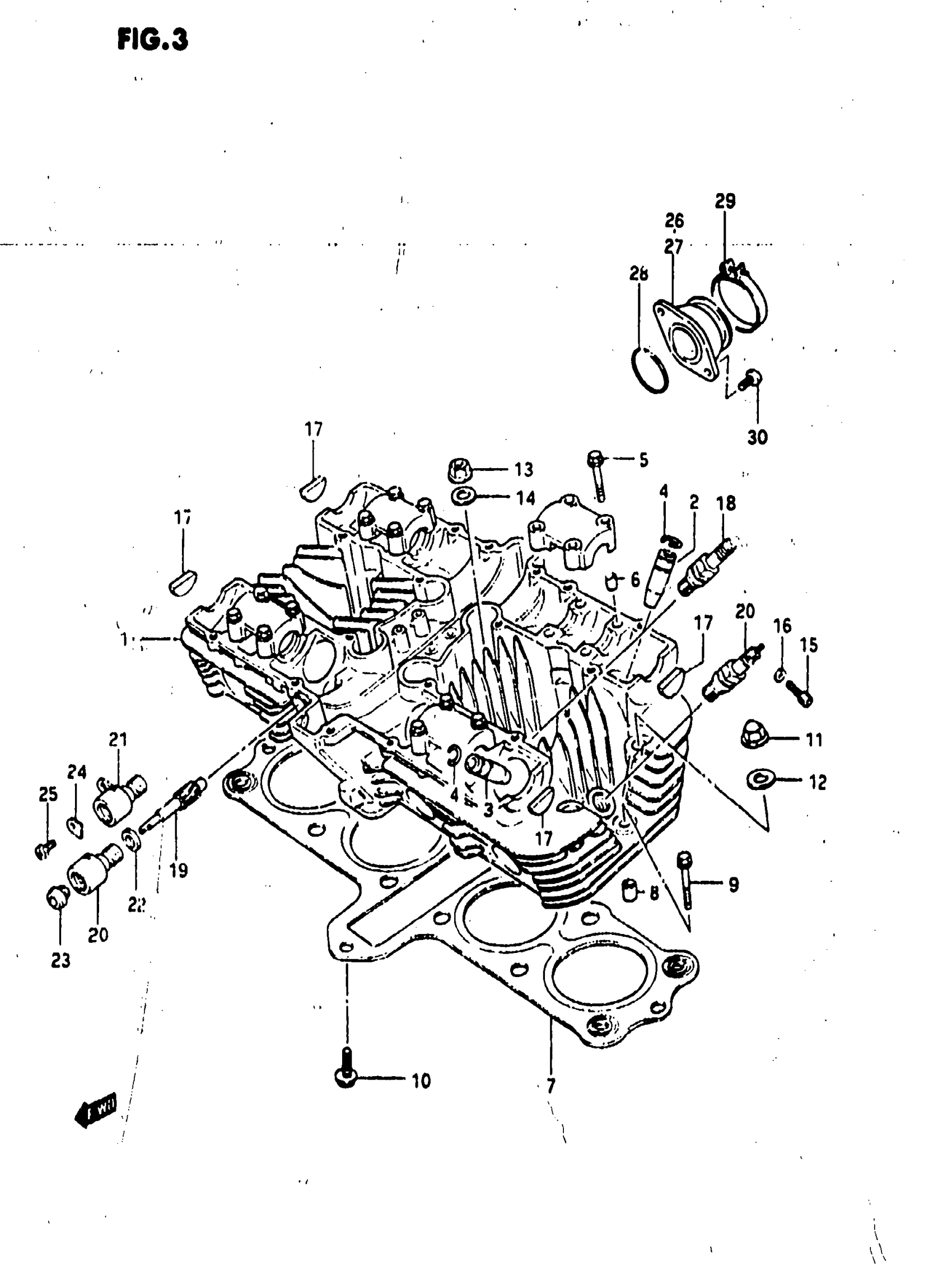

Find the part on the Cylinder Head diagram for your 1983 Suzuki GS1100GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS1100GL Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | ~E.NO.113974 This part replaces 11100-49020.

11100-49021

1
Out of stock

1

CYLINDER HEAD SET | E.NO.113975~

11100-49050

1
Out of stock

1

CYLINDER HEAD SET | MODEL D; Includes Item(s) 2 - 6 This part replaces 11100-49040.

11100-49060

1
Out of stock

2

GUIDE, INTAKE VALVE

11115-45740

4

$45.97

In stock

3

GUIDE, EXHAUST VALVE

11116-45740

4
Out of stock

4

RING, VALVE GUIDE

09381-10003

8

$2.69

In stock

5

BOLT (6X39)

09103-06026

16
Out of stock

6

PIN

09206-08001

8
Out of stock

7

GASKET This part replaces 11141-49400.

11141-49410

1
Out of stock

8

PIN

04211-11189

2

$1.94

In stock

9

BOLT | MODEL D This part replaces 01517-06455.

01550-0645A

2
Out of stock

10

1

$2.84

In stock

10

BOLT | MODEL D This part replaces 01517-06305.

01550-0630A

1
Out of stock

11

NUT

09159-10026

4

$6.13

In stock

12

GASKET

09168-10017

4

$2.94

In stock

13

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

8
Out of stock

14

WASHER

09160-10039

8
Out of stock

16

GASKET

09168-05010

4
Out of stock

17

PLUG, CYLINDER HEAD

09241-23002

4

$5.98

In stock

18

4

$2.98

In stock

18

SPARK PLUG W24E This part replaces 09482-00196.

09482-00247-111

4
Out of stock

20

1

$38.30

In stock

21

SLEEVE | MODEL D

26441-49000

1

$38.30

In stock

22

SEAL BAND

26451-45000

1
Out of stock

23

OIL SEAL

09289-05002

1

$8.21

In stock

24

PLATI | MODEL Z

26449-33000

1
Out of stock

25

SCREW

09128-05101

1
Out of stock

26

2

$43.82

In stock

27

PIPE,INTAKE,L This part replaces 13120-49100.

13120-49101

2
Out of stock

29

CLAMP

09402-54303

4

$3.86

In stock

30

8

$1.52

In stock

30

SCREW | MODEL D This part replaces 02112-06165.

02112-0616A

8
Out of stock
