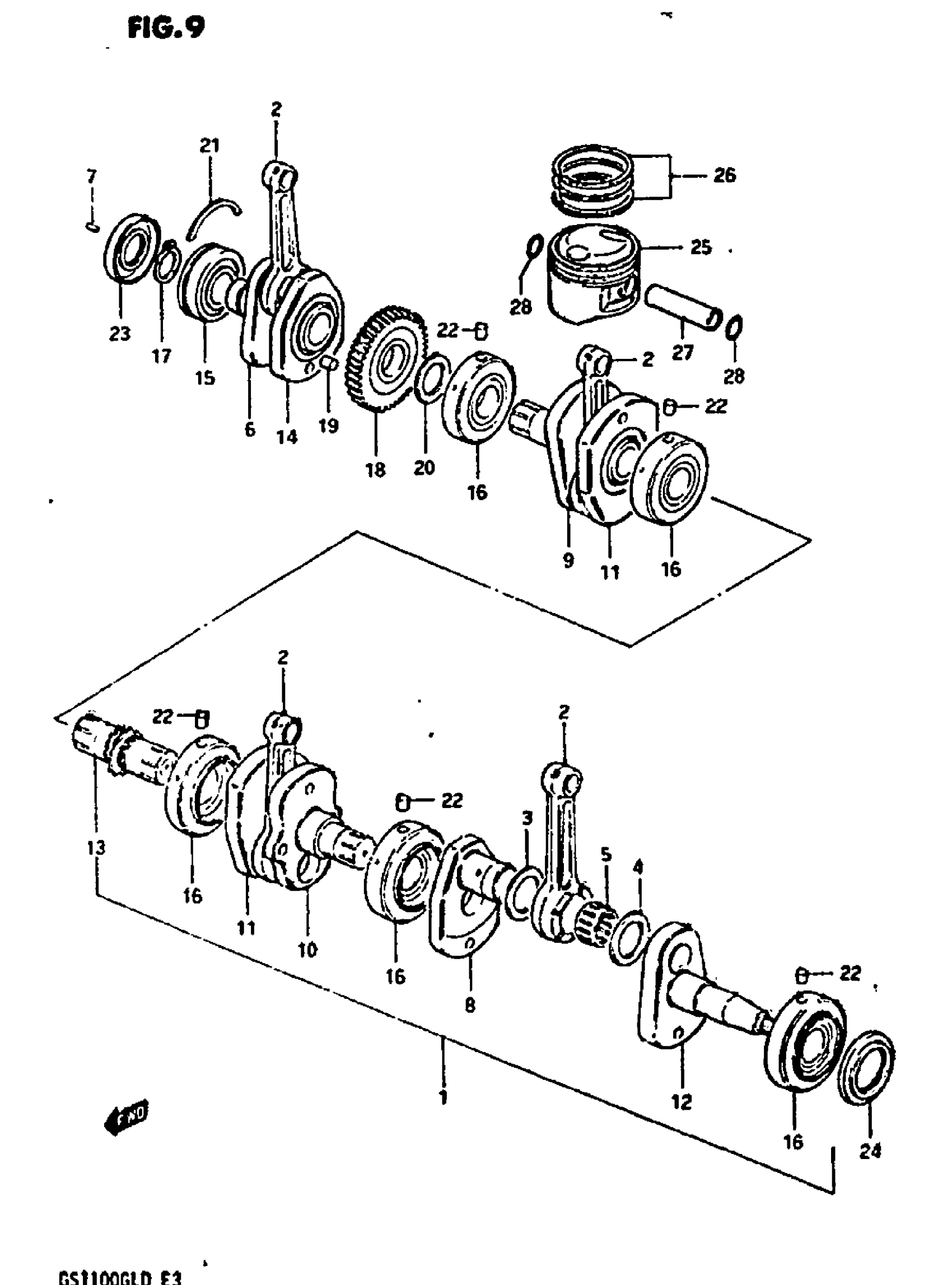

Find the part on the Crankshaft diagram for your 1983 Suzuki GS1100GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS1100GL Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 12200-49400.

12200-49402

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL D; Includes Item(s) 2 - 20 This part replaces 12200-49401.

12200-49402

1
Out of stock

2

ROD, CONNECTING

12161-49400

4
Out of stock

3

WASHER

09160-31002

4
Out of stock

4

WASHER

09160-31003

4
Out of stock

5

BEARING (31X39X21) This part replaces 09263-31005.

09263-31004

4
Out of stock

6

CRANKSHAFT, RH

12220-49202

1
Out of stock

7

PIN (4X13.8)

04221-04089

1
Out of stock

8

NO DESCRIPTION AVAILABLE This part replaces 12230-49201.

12230-49202

1
Out of stock

9

CRANKSHAFT, MIDDLE RH

12241-49400

1
Out of stock

10

NO DESCRIPTION AVAILABLE This part replaces 12271-49400.

12241-49203

1
Out of stock

11

NO DESCRIPTION AVAILABLE This part replaces 12250-49201.

12250-49202

2
Out of stock

12

CRANKSHAFT, LH | MODEL Z This part replaces 12261-49301.

12261-49302

1
Out of stock

12

CRANKSHAFT, LH (L:22) | MODEL D

12261-49302

1
Out of stock

13

SHAFT, CHAIN DRIVE (NT:15)

12281-49200

1
Out of stock

14

WEB, CRANKSHAFT RH

12231-49400

1
Out of stock

15

BEARING, RH

09262-30033

1
Out of stock

16

BEARING This part replaces 09264-32005.

09264-32009

5
Out of stock

17

CIRCLIP This part replaces 08331-11308.

08331-31309

1
Out of stock

18

GEAR, PRIMARY DRIVE (NT:49)

21110-49010

1
Out of stock

19

PIN

04221-08129

1
Out of stock

20

WASHER

09160-32008

1
Out of stock

21

O RING, BEARING RH

09390-72004

1
Out of stock

22

PIN

04221-07129

5
Out of stock

23

OIL SEAL, RH

09283-30021

1
Out of stock

24

OIL SEAL, SI CLUTCH GEAR

09289-48002

1
Out of stock

25

PISTON (STD) | MODEL Z This part replaces 12111-49400.

12111-49403

4
Out of stock

25

PISTON (STD) | MODEL D This part replaces 12111-49402.

12111-49403

4
Out of stock

25

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 12111-49400-050.

12103-49841-050

4
Out of stock

25

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 12111-49402-050.

12103-49841-050

4
Out of stock

25

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 12111-49400-100.

12103-49841-100

4
Out of stock

25

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 12111-49402-100.

12103-49841-100

4
Out of stock

26

RING SET, PISTON This part replaces 12140-49220.

12140-49270

4
Out of stock

26

RING SET,PISTON This part replaces 12140-49220-050.

12140-49270-050

4
Out of stock

26

RING SET, PISTON (OS:1.0) This part replaces 12140-49220-100.

12140-49221-100

4
Out of stock

27

PIN, PISTON | ~E.NO.112761 This part replaces 12151-49400.

12151-37F00

4
Out of stock

27

PIN, PISTON | E.NO.112762~ This part replaces 12151-49401.

12151-37F00

4
Out of stock

28

CIRCLIP

09381-18002

8
Out of stock
