1983 Suzuki GS1100GL Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1983 Suzuki GS1100GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

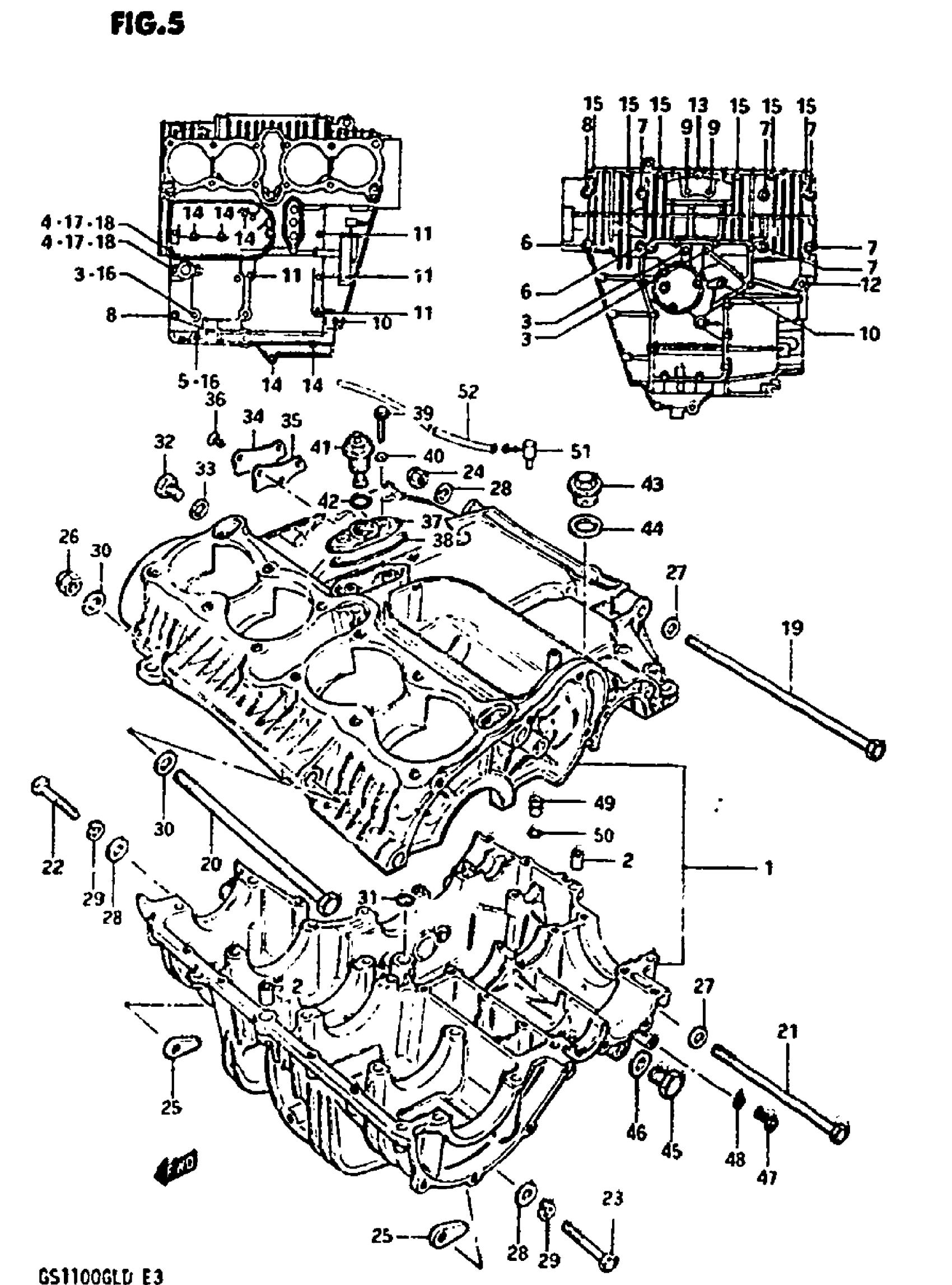

1983 Suzuki GS1100GL Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | ~E.NO.104794 This part replaces 11300-49841.

11300-49843

1
Out of stock

1

NO DESCRIPTION AVAILABLE | E.NO.104795~; Includes Item(s) 2 - 18 This part replaces 11300-49842.

11300-49843

1
Out of stock

2

PIN This part replaces 09206-13001.

04211-13189

2
Out of stock

3

BOLT (8X125) This part replaces 09103-08020.

09103-08106

3
Out of stock

4

BOLT (8X110)

09103-08046

2
Out of stock

5

BOLT (8X105) This part replaces 09103-08023.

09103-08097

1
Out of stock

6

BOLT (8X100) This part replaces 09103-08009.

09103-08070

2
Out of stock

7

5

$5.63

In stock

8

BOLT This part replaces 01517-08658.

01550-08657

4
Out of stock

9

BOLT This part replaces 01517-08608.

01550-08607

2
Out of stock

10

BOLT This part replaces 01517-06908.

01550-06907

2
Out of stock

11

BOLT 6X75 This part replaces 01517-06758.

01550-06757

4
Out of stock

12

BOLT This part replaces 01517-06558.

01550-06557

1
Out of stock

13

BOLT (6X50) This part replaces 01517-06508.

01550-06507

1
Out of stock

14

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

5
Out of stock

15

BOLT This part replaces 01517-06358.

01550-06357

6
Out of stock

16

NUT (CHROME) This part replaces 08316-16088.

08316-10087

2
Out of stock

17

NUT This part replaces 08313-11088.

08313-10087

2
Out of stock

18

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

2
Out of stock

19

NO DESCRIPTION AVAILABLE This part replaces 09100-10074.

09100-10074-XC0

1
Out of stock

20

SHAFT,RR SWNG P This part replaces 61211-39000.

61211-39002

1
Out of stock

21

BOLT (10x165)

09100-10078

1
Out of stock

22

BOLT This part replaces 01107-10608.

01500-1060A

1
Out of stock

23

BOLT This part replaces 01107-10508.

01500-1050A

1
Out of stock

24

NUT

09159-10011

2
Out of stock

25

NUT

09159-10020

2
Out of stock

26

NUT This part replaces 08319-21128.

08319-2112A

1
Out of stock

27

WASHER (10X15X1.2)

09160-10005

2
Out of stock

28

WASHER This part replaces 08322-11108.

08322-01107

4
Out of stock

29

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

30

WASHER This part replaces 08322-11128.

08322-01127

3
Out of stock

31

O RING, OIL GALLERY

09280-13001

1
Out of stock

32

1

$3.63

In stock

33

GASKET

09168-14004

1
Out of stock

34

CAP, OIL GALLERY

11394-45000

1
Out of stock

35

GASKET,OIL GALL This part replaces 11497-45000.

11497-45000-H17

1
Out of stock

36

SCREW This part replaces 02122-06168.

02122-06167

3
Out of stock

37

HOUSING, SWITCH

16445-45000

1
Out of stock

38

O RING

16448-45000

1
Out of stock

39

BOLT This part replaces 01517-06258.

01550-06257

2
Out of stock

40

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

2
Out of stock

41

SWITCH ASSY,OIL This part replaces 37820-45050.

37820-45061

1
Out of stock

42

O RING

09280-19001

1
Out of stock

43

PLUG This part replaces 09247-20002.

09248-20003

1
Out of stock

44

GASKET 20.1X27X This part replaces 09168-20004.

09168-20003

1
Out of stock

45

PLUG, OIL DRAIN This part replaces 09247-14014.

09247-14036

1
Out of stock

46

GASKET

09168-14004

1
Out of stock

47

SCREW (6X10) This part replaces 09128-06004.

09128-06044

1
Out of stock

48

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

1
Out of stock

49

NOZZLE, OIL GALLERY

09364-05005

1
Out of stock

50

O RING

09280-03003

1
Out of stock

51

PLUG, BREATHER

24821-45100

1
Out of stock

52

HOSE(2X5X600) This part replaces 09343-02009.

09352-20504-600

1
Out of stock
