1983 Suzuki GS1100E Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 1983 Suzuki GS1100E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

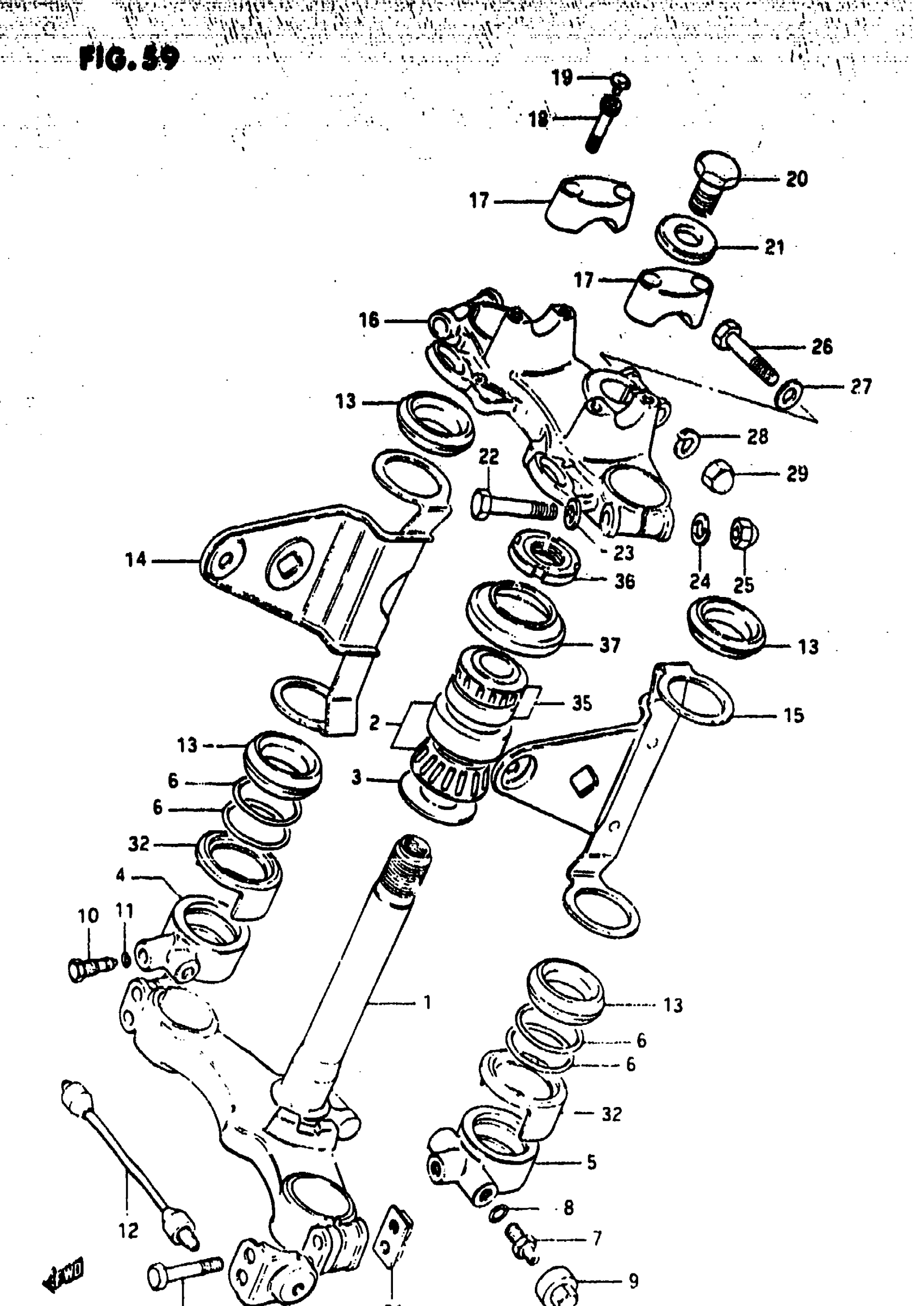

1983 Suzuki GS1100E Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING STEM | Includes Item(s) 2 - 3

51410-49520-291

1
Out of stock

2

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

1
Out of stock

3

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

1
Out of stock

4

BRACKET RH

51431-49200-291

1
Out of stock

5

BRACKET LH

51432-49200-291

1
Out of stock

6

O RING

51436-49200

4
Out of stock

7

VALVE | Includes Item(s) 8

51293-49001

1
Out of stock

8

O RING

51117-41211

1
Out of stock

9

CAP

51294-49000

1
Out of stock

10

STOP VALVE | Includes Item(s) 11

51434-49200

2
Out of stock

11

O RING

51435-49200

2
Out of stock

12

HOSE

51433-49500

1
Out of stock

13

BOLT This part replaces 51353-49000.

51352-43530

4
Out of stock

14

NO DESCRIPTION AVAILABLE This part replaces 51530-49500-291.

51500-49840-291

1
Out of stock

15

BRACKET, HEAD LAMP LH

51540-49500-291

1
Out of stock

16

STEERING STEM HEAD (BLACK) This part replaces 51311-49500-291.

51311-49400-291

1
Out of stock

17

NO DESCRIPTION AVAILABLE This part replaces 56211-49500-291.

56211-26D00

2
Out of stock

18

BOLT, STEERING DAMPER This part replaces 09106-08013.

07130-0830A

4
Out of stock

19

CAP

09250-06004

4

$1.55

In stock

20

BOLT This part replaces 51353-49300.

51352-31305

1
Out of stock

21

WASHER This part replaces 51356-49300.

51356-43530

1
Out of stock

22

BOLT This part replaces 01107-10558.

01500-1055A

2
Out of stock

23

WASHER This part replaces 08322-21108.

08322-01107

2
Out of stock

24

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

25

NUT This part replaces 08313-11105.

08313-1010A

2
Out of stock

26

BOLT This part replaces 01107-08505.

01500-0850B

1
Out of stock

27

WASHER This part replaces 08322-21088.

08322-01087

1
Out of stock

28

1

$2.28

In stock

29

NUT This part replaces 08313-11085.

08313-1008B

1
Out of stock

30

BOLT This part replaces 01107-08558.

01500-08557

4
Out of stock

31

NUT

51458-49000

2
Out of stock

32

COVER, RH

51554-49500-291

1
Out of stock

33

COVER, LH

51557-49500-291

1
Out of stock

34

BRACKET

51485-49501

2
Out of stock

35

BEARING

09265-25008

1
Out of stock

36

NUT

51631-34200

1
Out of stock

37

SEAL,DUST This part replaces 51643-40502.

51643-40503

1
Out of stock
