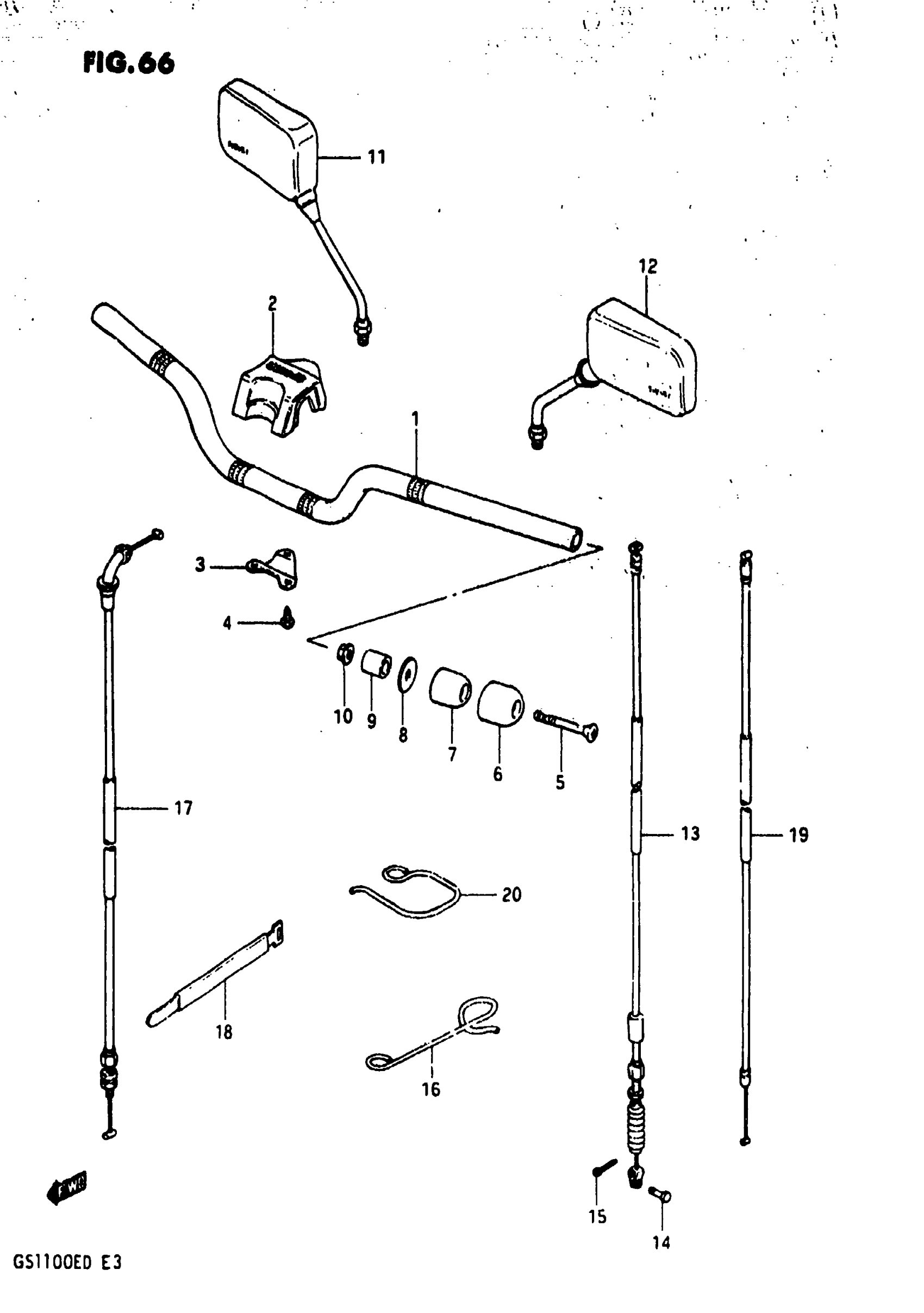

Suzuki GS1100E (1983) HANDLEBAR (GS1100ESD) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 56111-49530.

56111-49520

Unavailable

2

COVER, STEERING HEAD

56171-49500

Unavailable

3

BRACKET

56175-49100

Unavailable

4

SCREW This part replaces 03211-04108.

03211-0410B

$0.73

5

SCREW This part replaces 02132-06557.

02122-0655B

$3.08

6

NO DESCRIPTION AVAILABLE This part replaces 56274-34400.

56274-19D10

Unavailable

7

BALANCER (FLAT TYPE)

56271-49410

$34.93

8

SPACER This part replaces 56275-34400.

56275-34401

$4.53

9

EXPANDER (FLAT TYPE)

56272-44500

$4.16

10

NUT (FLAT TYPE)

09159-06024

$2.12

11

MIRROR ASSY,REA This part replaces 56500-34300.

56500-01D02

$138.35

12

MIRROR ASSY,REA This part replaces 56600-34300.

56600-01D02

$140.95

13

CABLE, CLUTCH (NEUTRAL TYPE) This part replaces 58200-49510.

58200-00A10

Unavailable

14

PIN

09200-06011

Unavailable

15

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

16

CLAMP

58626-45101

Unavailable

17

CABLE, THROTTL (NEUTRAL TYPE) This part replaces 58300-49510.

58300-00A10

Unavailable

18

CLAMP This part replaces 09407-18301.

09407-18302

$2.27

19

NO DESCRIPTION AVAILABLE This part replaces 58410-49511.

58410-49X03

Unavailable

20

GUIDE, CABLE

58621-31310

Unavailable
