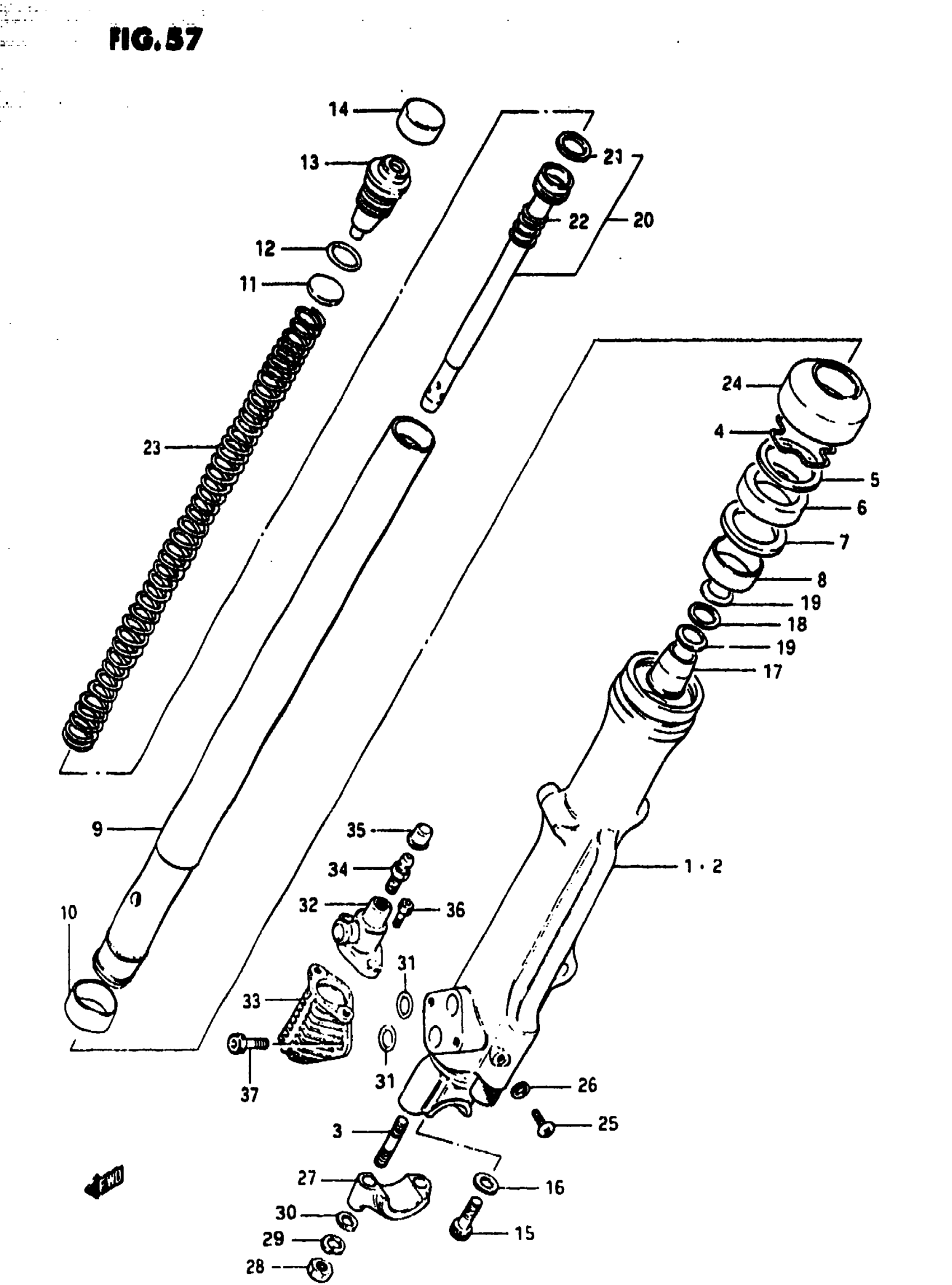

Suzuki GS1100E (1983) FRONT DAMPER (GS1100ESD) Diagram

#

Description
Price

0

DAMPER ASSY, RH

51103-49540

Unavailable

0

DAMPER ASSY, LH | Includes Item(s) 1 - 37

51104-49540

Unavailable

1

OUTER TUBE, RH

51130-49540-15T

Unavailable

2

OUTER TUBE, LH

51140-49540-15T

Unavailable

3

BOLT,STUD This part replaces 01411-08308.

01411-0830A

$2.65

4

SNAP RING

51156-40301

$4.63

5

WASHER

51158-49000

Unavailable

6

SEAL, OIL This part replaces 51153-49001.

51153-08C20

$18.74

7

WASHER

51158-49500

$5.02

8

METAL, SLIDE This part replaces 51167-49500.

51167-01D00

$11.89

9

INNER TUBE

51110-49540

Unavailable

10

PISTON This part replaces 51121-49500.

51121-49510

Unavailable

11

WASHER

51172-49540

Unavailable

12

O RING

51117-38260

$4.28

13

CAP

51351-49540

$78.73

14

CAP, RUBBER

51189-49300

$10.70

15

BOLT

51147-16510

$4.09

16

GASKET

51148-41310

$2.14

17

PIECE OIL LOCK

51195-45420

Unavailable

18

WASHER

51123-45420

$4.12

19

LEAF SPRING

51125-45420

$4.12

20

CYLINDER

51146-49500

Unavailable

21

PISION RING

51196-49000

$7.32

22

SPRING, REACTION

51177-49200

Unavailable

23

SPRING

51171-49520

Unavailable

24

DUST SEAL

51173-49002

$15.96

25

SCREW This part replaces 02112-04088.

02112-04087

$1.10

26

GASKET

51183-03010

$2.00

27

HOLDER, AXLE (BLACK) This part replaces 51132-49500-291.

51132-49500-15T

Unavailable

28

NUT This part replaces 08310-11085.

08310-0008A

$1.86

29

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.83

30

WASHER This part replaces 08322-21085.

08322-0108A

$2.18

31

O RING, OIL GALLERY This part replaces 51799-44130.

09280-12012

$4.19

32

MODULATOR PLUNGER SET

51790-11330

Unavailable

33

MODULATOR VALVE SET

51770-45920

Unavailable

34

BREATHER, AIR

51778-44130

Unavailable

35

CAP, BLEEDER This part replaces 51779-44130.

55156-66310

$4.73

36

BOLT This part replaces 51753-11330.

07130-05127

$3.42

37

BOLT This part replaces 51796-44130.

07130-06167

$4.03
