1983 Suzuki GS1100E Speedometer - Tachometer Diagram

← All diagrams

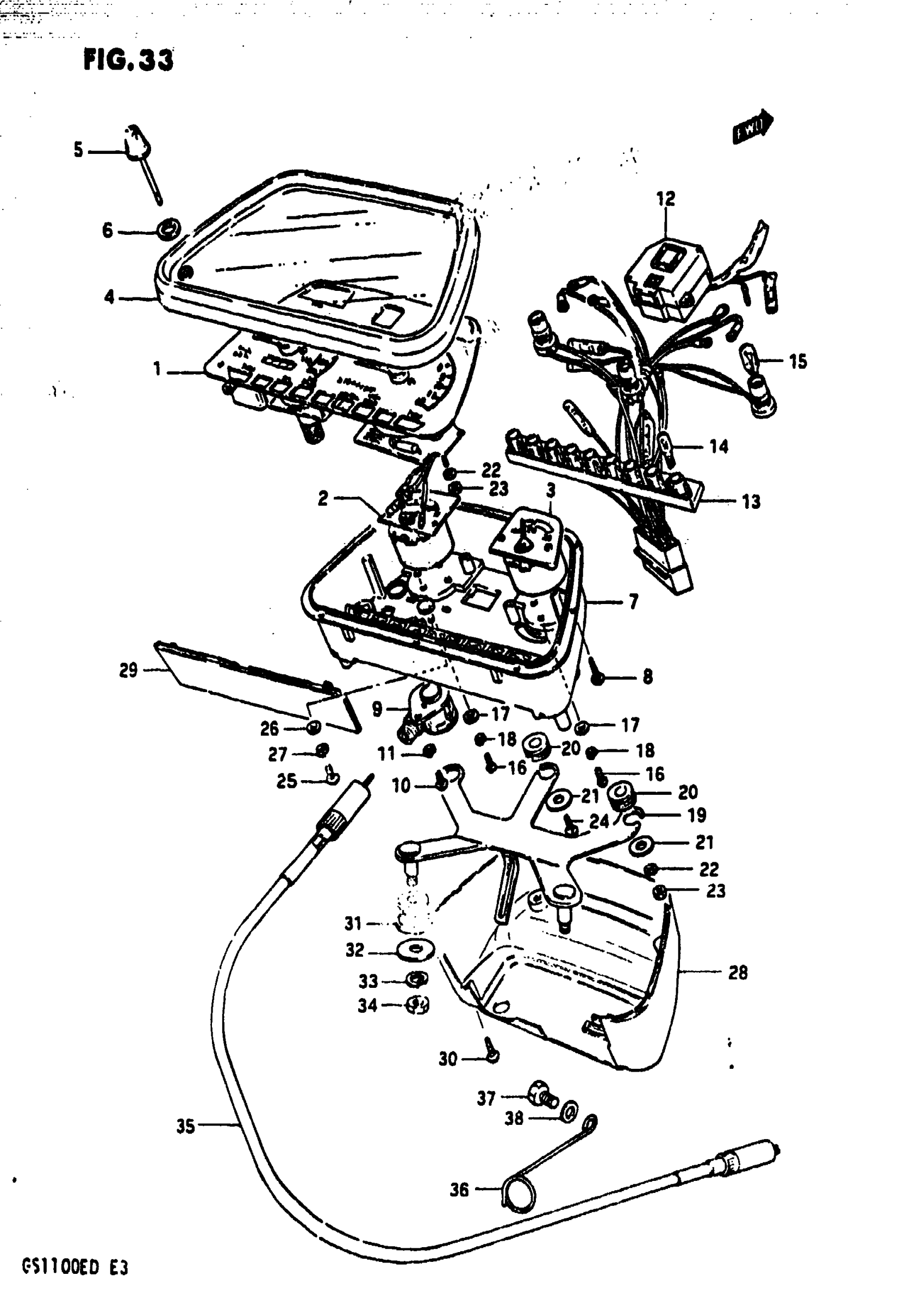

Find the part on the Speedometer - Tachometer diagram for your 1983 Suzuki GS1100E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS1100E Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDO & TACHOMETER (MILE/KILO

34120-49930

1
Out of stock

2

FUELMETER

34320-49910

1
Out of stock

3

OIL TEMPERATUREMETER

34730-49920

1
Out of stock

4

HOOD, METER

34150-49910

1
Out of stock

5

KNOB, TRIP

34124-49910

1
Out of stock

6

SEAL, TRIPKNOB

34996-49910

1
Out of stock

7

CASE, METER

34111-49910

1
Out of stock

8

SCREW

03141-03106

8
Out of stock

9

GEAR BOX, SPEADOMETER

34131-49300

1
Out of stock

10

4

$1.67

In stock

11

LOCK WASHER This part replaces 08321-21048.

08321-0104A

4
Out of stock

12

INDICATOR, GEAR POSITION

36450-49910

1
Out of stock

13

SOCKET, METER

34170-49910

1
Out of stock

14

BULB (12V, 3W)

09471-12085

9
Out of stock

15

BULB (12V, 3, 4W)

09471-12082

3
Out of stock

16

SCREW This part replaces 02112-03128.

02112-0312B

6
Out of stock

17

WASHER This part replaces 08322-21038.

08322-01037

6
Out of stock

18

WASHER,LOCK This part replaces 08321-21038.

09162-03001

6
Out of stock

19

BRACKET, METER

34950-49910

1
Out of stock

20

CUSHION

34955-28010

3
Out of stock

21

WASHER (4.5X16X1.2) This part replaces 34181-49300.

09160-04026

3
Out of stock

22

WASHER This part replaces 08321-31048.

08321-31046

4
Out of stock

23

NUT This part replaces 08310-22048.

08310-00047

4
Out of stock

24

SCREW This part replaces 03141-04166.

03141-0416A

1
Out of stock

25

SCREW This part replaces 02112-03108.

02112-03107

2
Out of stock

26

WASHER This part replaces 08322-21038.

08322-01037

2
Out of stock

27

WASHER,LOCK This part replaces 08321-21038.

09162-03001

2
Out of stock

28

COVER, LOWER

34193-49910

1
Out of stock

29

PLATE, METER CASE COVER

34197-49910

1
Out of stock

30

SCREW This part replaces 03141-04165.

03141-0416A

4
Out of stock

31

CUSHION

34956-31001

2
Out of stock

32

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

2
Out of stock

33

2

$1.99

In stock

34

NUT This part replaces 08310-11085.

08310-0008A

2
Out of stock

35

CABLE ASSY,SPEE This part replaces 34910-09300.

34910-49312

1
Out of stock

36

GUIDE, METER CABLE

34938-45100

1
Out of stock

37

1

$2.10

In stock

38

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock
