1983 Suzuki GS1100E Generator Diagram

← All diagrams

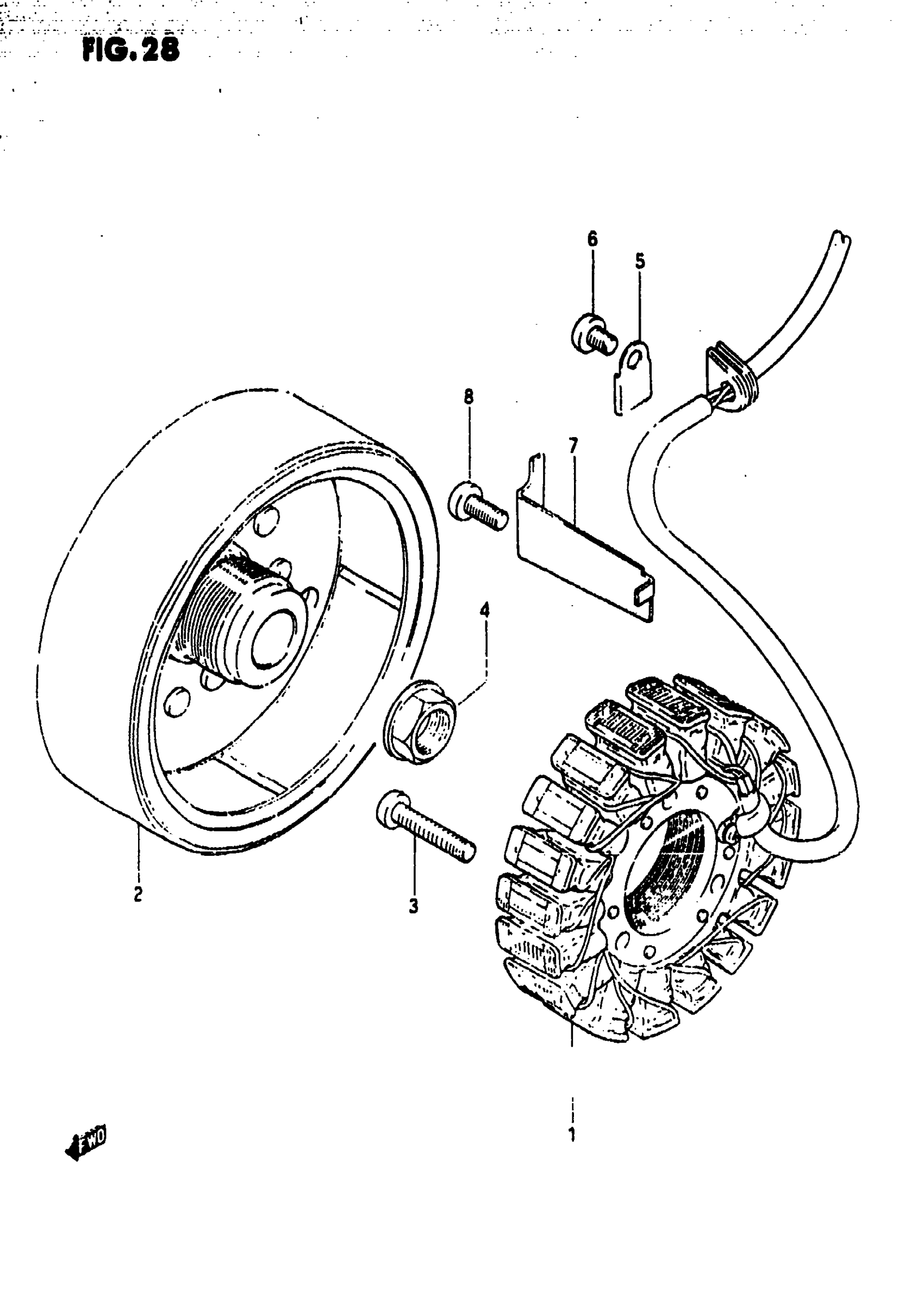

Find the part on the Generator diagram for your 1983 Suzuki GS1100E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS1100E Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR This part replaces 31401-49420.

31401-09300

1
Out of stock

2

ROTOR

31402-49330

1
Out of stock

3

SCREW This part replaces 02112-06308.

02112-06307

3
Out of stock

4

NUT

31792-49200

1
Out of stock

5

CLAMP

31497-45000

1
Out of stock

6

1

$1.55

In stock

7

CLAMP

31498-45000

1
Out of stock

8

SCREW This part replaces 02112-06108.

02112-06107

1
Out of stock
