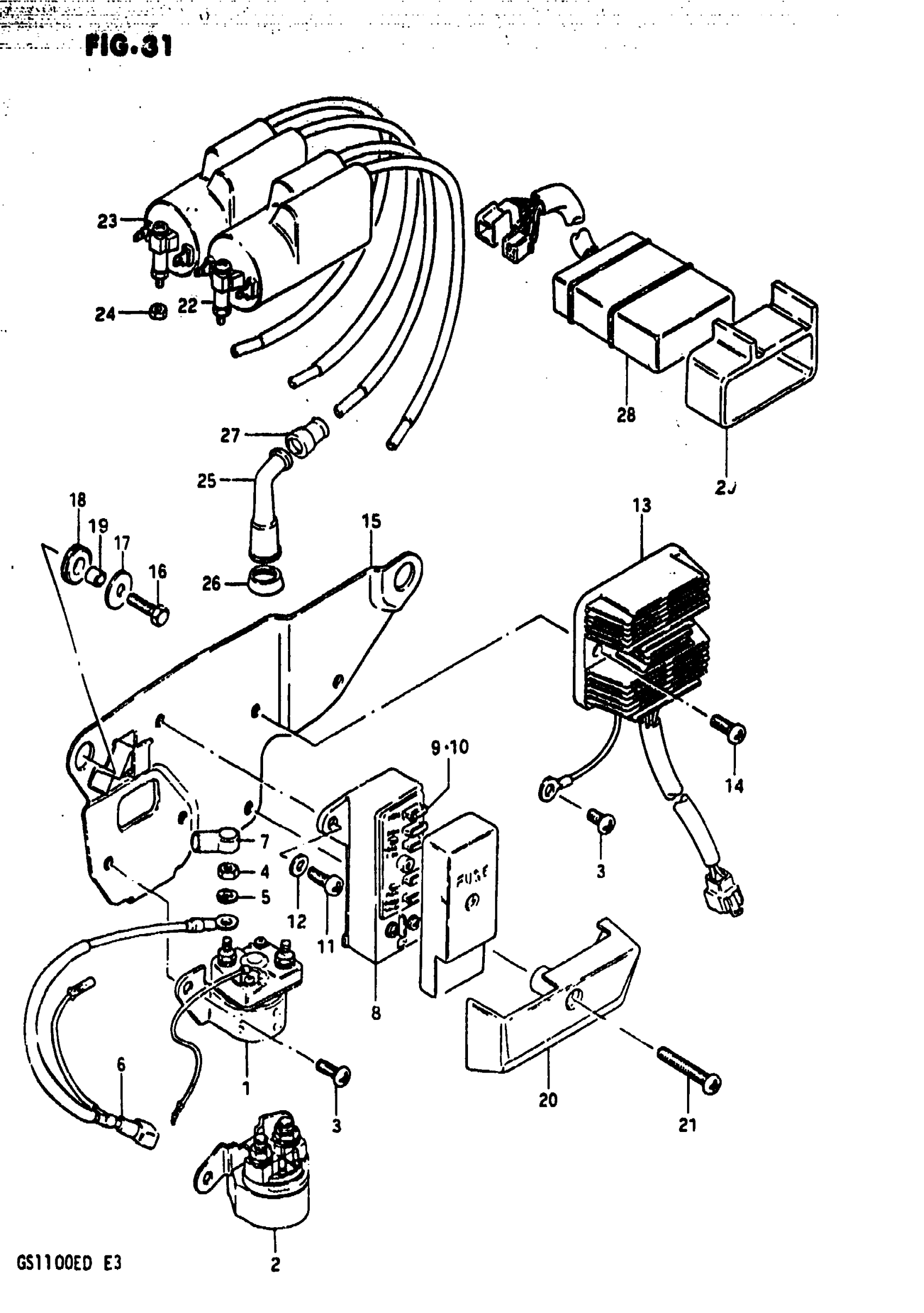

Suzuki GS1100E (1983) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STAR This part replaces 31800-37020.

31800-37021

$67.24

2

RELAY, STARTING MOTOR | GS1100ESD This part replaces 31800-33400.

31800-49100

$89.07

3

SCREW This part replaces 02112-06108.

02112-06107

$1.45

4

.NUT This part replaces 08310-22068.

08310-00067

$1.83

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

6

LEAD WIRE, (-) | MODEL Z This part replaces 33850-44110.

33850-03201

$13.20

6

LEAD WIRE, (-) | MODEL D This part replaces 33850-49002.

33850-03201

$13.20

7

CAP, STARTER MOTOR This part replaces 31861-35100.

31861-48B10

$7.40

8

BOX ASSY,FUSE | Includes Item(s) 9 - 10 This part replaces 36740-49400.

36740-45D00

Unavailable

9

FUSE (10A)

09481-10101

$0.68

10

FUSE (15A)

09481-15101

$2.77

11

SCREW | MODEL D This part replaces 02112-06128.

02112-06127

$1.83

11

SCREW | MODEL Z This part replaces 02112-06168.

02112-06167

$1.43

12

WASHER This part replaces 08322-21068.

08322-01067

$1.86

13

RECTIFIER ASSY This part replaces 32800-49420.

32800-43X51

Unavailable

14

SCREW This part replaces 02112-06128.

02112-06127

$1.83

15

NO DESCRIPTION AVAILABLE This part replaces 47410-49310.

47410-49311

Unavailable

16

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

17

WASHER This part replaces 09160-06063.

09160-06054

$1.62

18

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.91

19

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.46

20

COVER, ELECTRIC PARTS HOLDER

47419-49301

Unavailable

21

SCREW This part replaces 02112-06128.

02112-06127

$1.83

22

COIL ASSY, IGNI This part replaces 33410-49210.

33410-31311

$210.93

23

COIL ASSY, IGNI This part replaces 33420-49210.

33410-31311

$210.93

24

.NUT This part replaces 08310-11068.

08310-00067

$1.83

25

CAP, SPARK PLUG

33510-45010

$23.52

26

SEAL, SPARK PLUG This part replaces 33541-32410.

33541-38210

$4.40

27

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$3.97

28

RELAY, LAMP OUTAGE WARNING

38860-49500

Unavailable

29

STAY, RELAY

38861-49500

Unavailable
