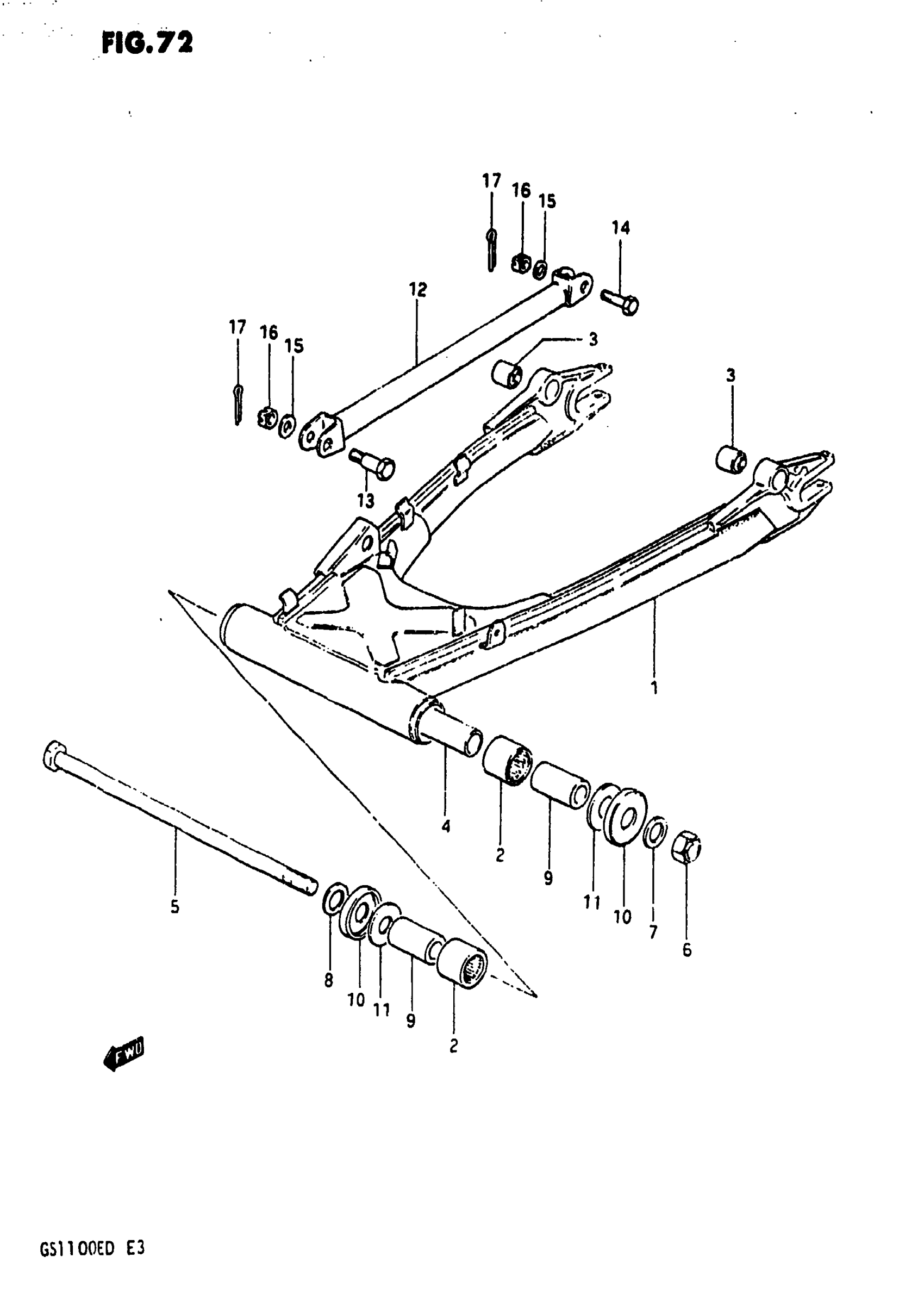

Suzuki GS1100E (1983) REAR SWINGING ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 61100-49851.

61100-49852

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL D; Includes Item(s) 2 - 4 This part replaces 61100-49860.

61000-08C00

Unavailable

2

BEARING

09263-25024

$23.72

3

BUSHING, REAR

09319-10008

$6.68

4

SPACER, CENTER

61282-49000

Unavailable

5

SHAFT, PIVOT | MODEL Z

61211-49200

Unavailable

5

SHAFT, RR SWGAR | MODEL D This part replaces 61211-49000.

61211-49301

Unavailable

6

NUT This part replaces 08319-21168.

08319-2116A

$9.78

7

WASHER This part replaces 08322-11168.

08322-01167

$2.43

8

WASHER | MODEL Z This part replaces 08322-11168.

08322-01167

$2.43

9

SPACER

61251-49000

$24.88

10

COVER,RR SWINGI This part replaces 61262-49201.

61262-49202

$11.66

11

WASHER

08211-16381

$3.05

12

TORQUE LINK, REAR (BLACK)

64310-49200-019

Unavailable

13

BOLT,10X39 This part replaces 09111-10011.

09111-10022-XC0

Unavailable

14

BOLT, REAR

09101-10017

Unavailable

15

WASHER This part replaces 08322-11108.

08322-01107

$1.88

16

NUT This part replaces 08314-41108.

08314-4010B

$2.50

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22
