1981 Suzuki GS1100E Rear Swinging Arm Diagram

← All diagrams

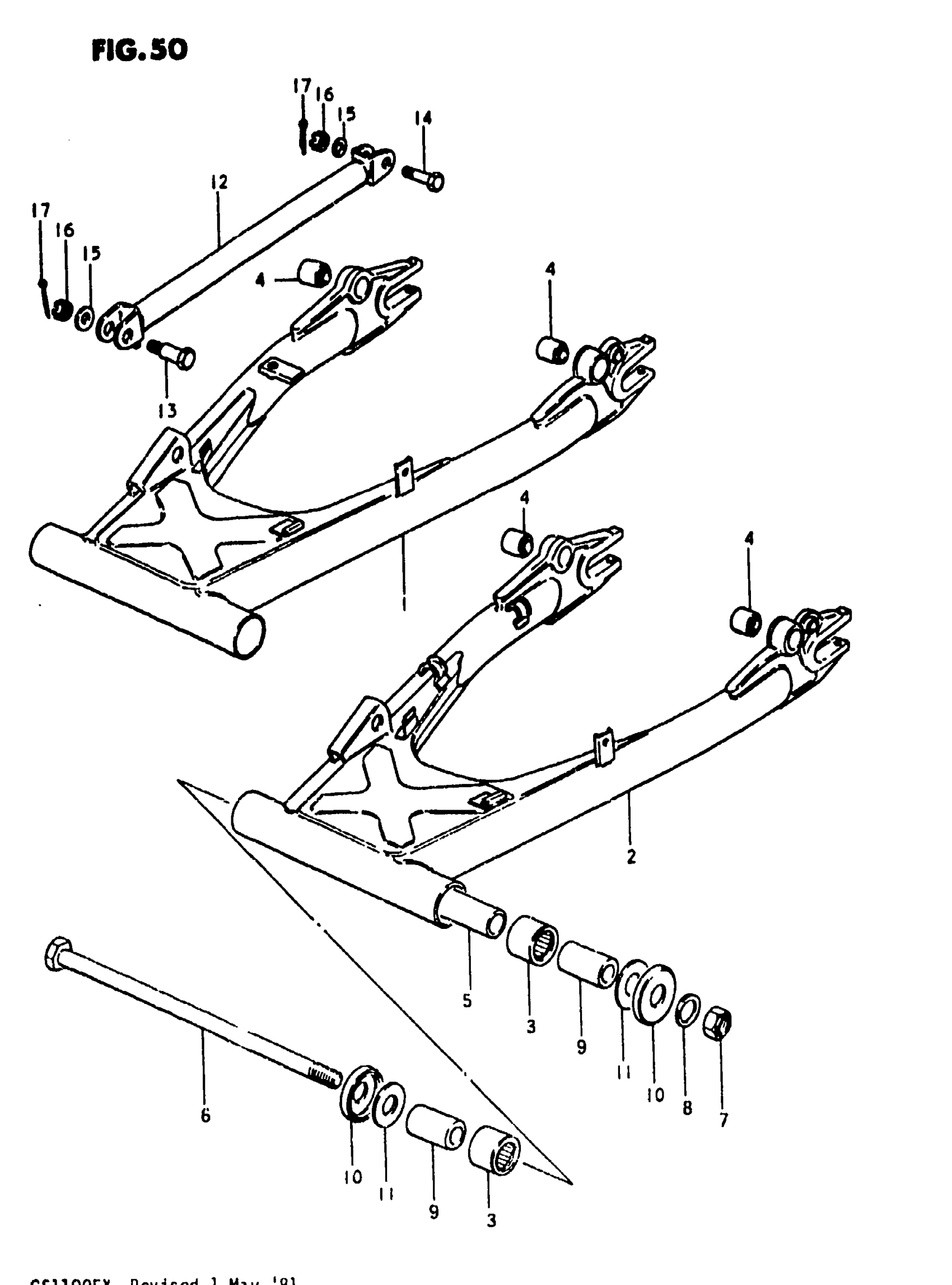

Find the part on the Rear Swinging Arm diagram for your 1981 Suzuki GS1100E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Suzuki GS1100E Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR SWINGING ARM SET | MODEL T WITH 69480-49002 This part replaces 61100-49820.

61100-49821

1
Out of stock

2

REAR SWINGING ARM SET | MODEL T, X WITH 69480-49003; Includes Item(s) 3 - 5

61100-49821

1
Out of stock

3

BEARING

09263-25024

2

$25.58

In stock

4

BUSHING, REAR

09319-10008

2
Out of stock

5

SPACER, CENTER

61282-49000

1
Out of stock

6

SHAFT, PIVOT

61211-49200

1
Out of stock

7

NUT This part replaces 08319-21168.

08319-2116A

1
Out of stock

8

2

$2.43

In stock

9

SPACER

61251-49000

2

$27.10

In stock

11

WASHER

08211-16381

2

$3.05

In stock

12

TORQUE LINK, REAR (BLACK) This part replaces 64310-49200.

64310-49200-019

1
Out of stock

13

BOLT,10X39 This part replaces 09111-10011.

09111-10022-XC0

1
Out of stock

14

BOLT, REAR

09101-10017

1
Out of stock

15

WASHER This part replaces 08322-11108.

08322-01107

2
Out of stock

16

NUT This part replaces 08314-41108.

08314-4010B

2
Out of stock

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock
