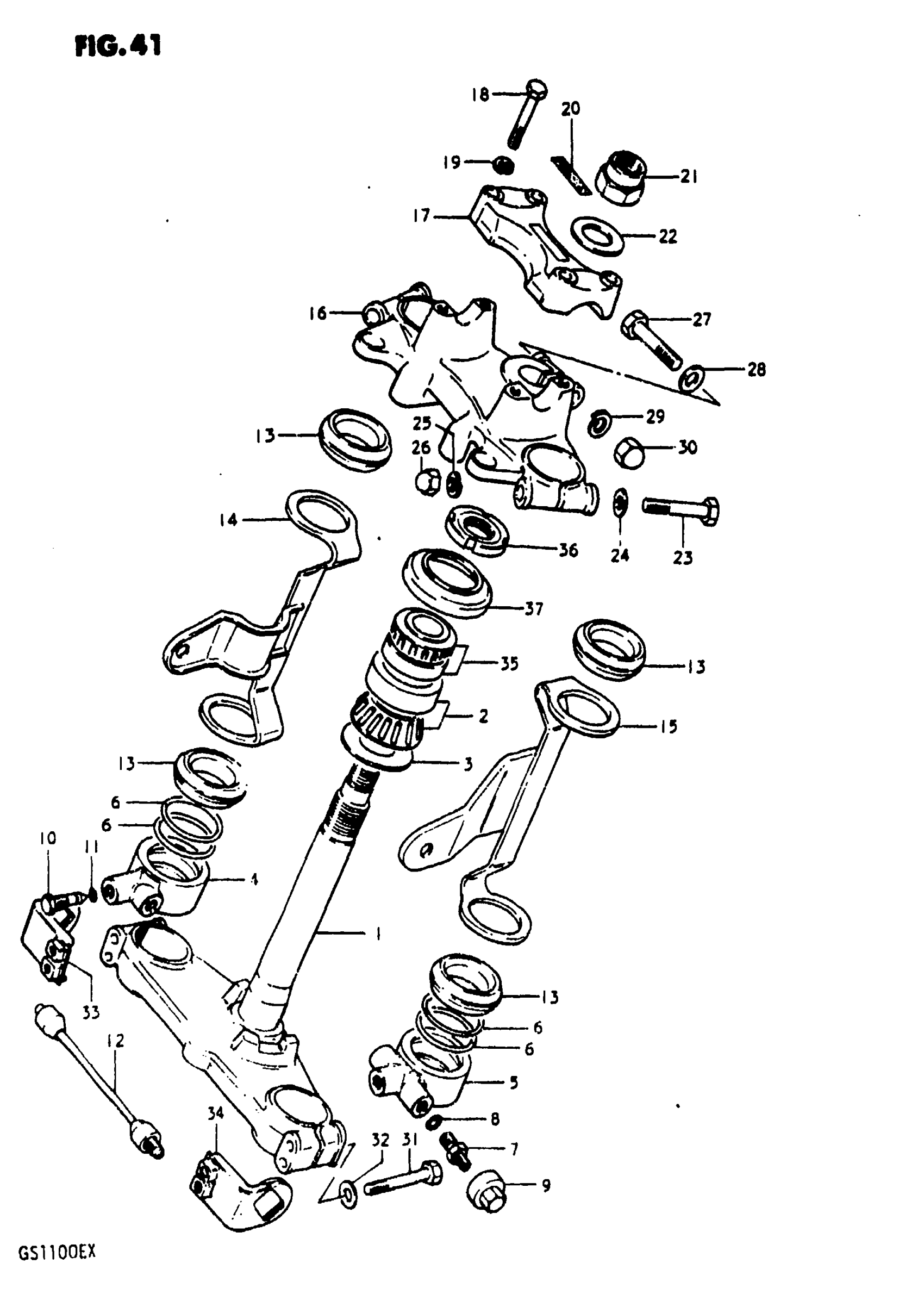

Suzuki GS1100E (1981) STEERING STEM Diagram

#

Description
Price

1

STEERING STEM | Includes Item(s) 2 - 3

51410-49130-291

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$52.22

3

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$2.81

4

BRACKET RH

51431-49200-291

Unavailable

5

BRACKET LH

51432-49200-291

Unavailable

6

O RING

51436-49200

Unavailable

7

VALVE | Includes Item(s) 8

51293-49001

Unavailable

8

O RING

51117-41211

Unavailable

9

CAP

51294-49000

Unavailable

10

STOP VALVE

51434-49200

Unavailable

11

O RING

51435-49200

Unavailable

12

HOSE This part replaces 51433-49200.

51433-49500

Unavailable

13

CUSHION, BRACKET This part replaces 51553-49000.

51553-34300

$4.26

14

BRACKET, HEAD LAMP RH

51530-49200-291

Unavailable

15

BRACKET, HEAD LAMP LH

51540-49200-291

Unavailable

16

STEM HEAD, STEERING

51311-49100-291

Unavailable

17

HOLDER, HANDLE

56211-49200-291

Unavailable

18

BOLT

01204-08357

$2.10

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

20

EMBLEM

56212-45400

Unavailable

21

NUT

51353-45000

Unavailable

22

WASHER

51356-31700

Unavailable

23

BOLT This part replaces 01107-10558.

01500-1055A

$3.25

24

WASHER This part replaces 08322-21108.

08322-01107

$1.88

25

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.83

26

NUT This part replaces 08313-11105.

08313-1010A

$2.38

27

BOLT This part replaces 01107-08508.

01500-08507

$2.80

28

WASHER This part replaces 08322-21088.

08322-01087

$1.86

29

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$1.83

30

NUT This part replaces 08313-11085.

08313-1008B

$3.05

31

BOLT This part replaces 01107-08558.

01500-08557

$2.90

32

WASHER This part replaces 08322-21088.

08322-01087

$1.86

33

BRACKET, TURN SIGNAL RH

51251-49200-291

Unavailable

34

BRACKET, TURN SIGNAL LH

51252-49200-291

Unavailable

35

BEARING

09265-25008

$61.43

36

NUT

51631-28000

$19.60

37

SEAL, STEERING DUST This part replaces 51643-49001.

51643-49002

$13.92
