1981 Suzuki GS1100E Handlebar - Front Fender Diagram

← All diagrams

Find the part on the Handlebar - Front Fender diagram for your 1981 Suzuki GS1100E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

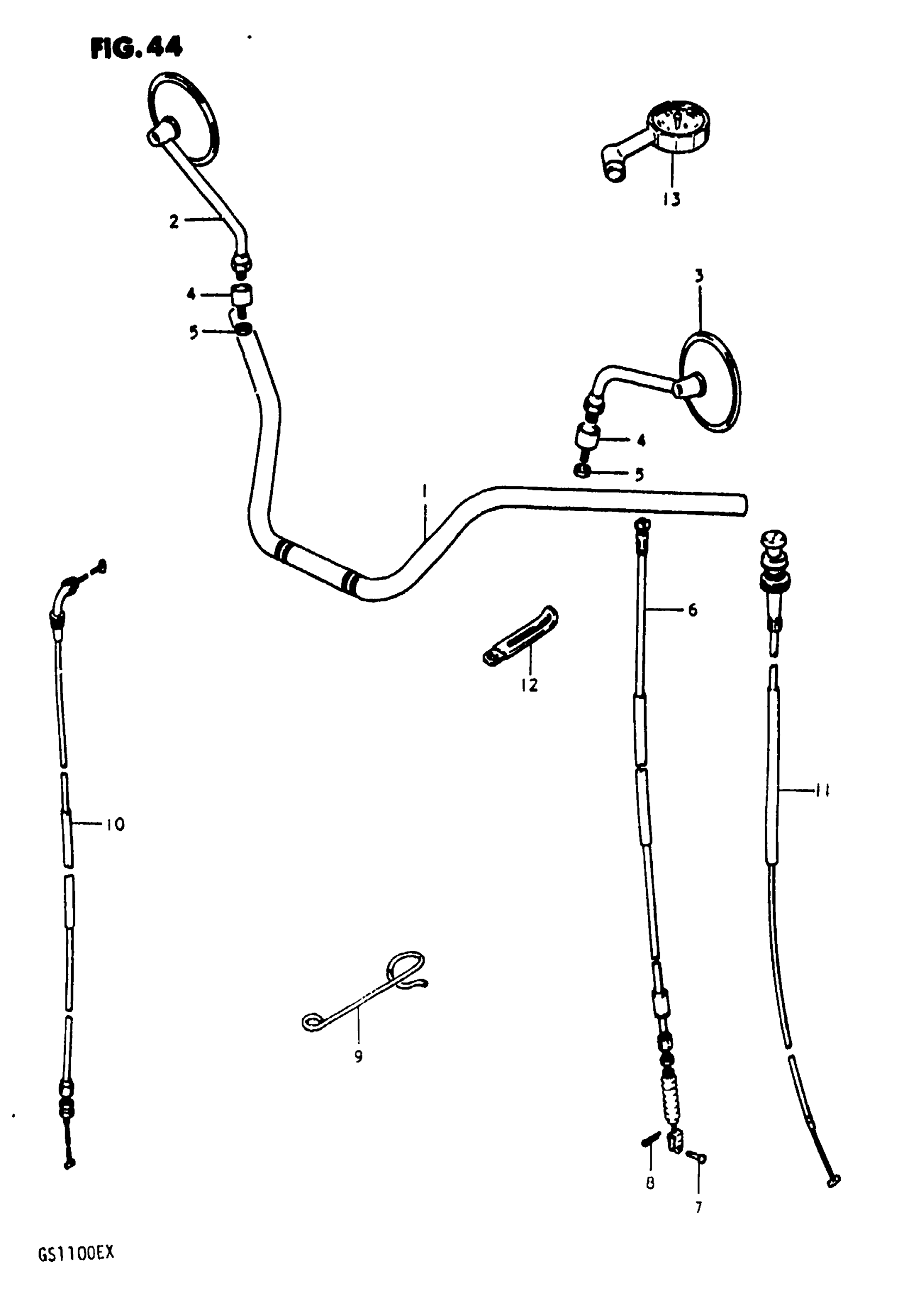

1981 Suzuki GS1100E Handlebar - Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR This part replaces 56110-45110.

56110-45400

1
Out of stock

2

MIRROR ASSY,RR This part replaces 56500-45100.

56500-38AB2

1
Out of stock

3

MIRROR ASSY,RR This part replaces 56600-45100.

56500-38AB2

1
Out of stock

4

CUSHION, REAR VIEW MIRROR This part replaces 56700-31001.

56700-45400

2
Out of stock

5

NUT This part replaces 08310-22108.

08310-00107

2
Out of stock

6

CABLE, CLUTCH This part replaces 58200-45400.

58200-45401

1
Out of stock

7

PIN

09200-06011

1
Out of stock

8

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

9

CLAMP This part replaces 58626-45100.

58626-45101

1
Out of stock

10

CABLE, THROTTLE This part replaces 58300-45400.

58300-44232

1
Out of stock

11

CABLE, STARTER

58400-45110

1
Out of stock

12

CLAMP This part replaces 09404-06403.

09404-06039

1
Out of stock

13

GAUGE, FRONT FORK AIR

96200-41330

1
Out of stock
