1980 Suzuki GS1100-LT Right Handle Switch Diagram

← All diagrams

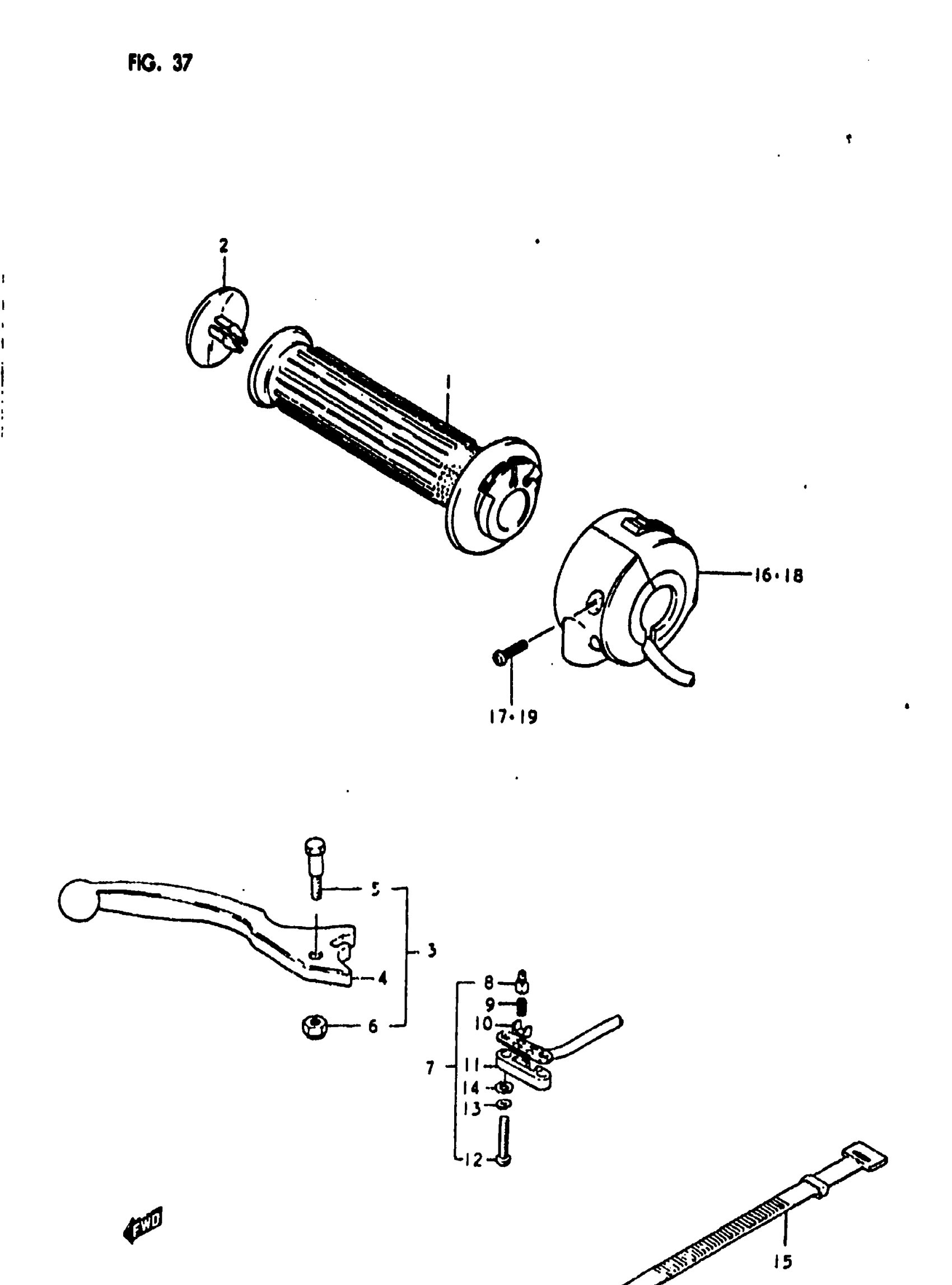

Find the part on the Right Handle Switch diagram for your 1980 Suzuki GS1100-LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Suzuki GS1100-LT Right Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE This part replaces 57110-44011.

57110-49510

1
Out of stock

2

CAP, GRIP AND RH

57215-49100

1
Out of stock

3

LEVER, BRAKE | Includes Item(s) 4 - 6 This part replaces 57300-49101.

57420-49101

1
Out of stock

4

LEVER, BRAKE

57420-49101

1
Out of stock

5

BOLT

57431-18621

1
Out of stock

6

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

7

SWITCH ASSY, ST | Includes Item(s) 8 - 14 This part replaces 57460-49100.

57460-45500

1
Out of stock

8

HOLDER This part replaces 57461-18600.

57465-18601

1
Out of stock

9

HOLDER This part replaces 57462-18600.

57465-18601

1
Out of stock

10

HOLDER This part replaces 57463-18600.

57465-18601

1
Out of stock

11

COVER

57481-33010

1
Out of stock

12

SCREW This part replaces 09125-03105.

09125-03105-XC0

2
Out of stock

13

WASHER,LOCK This part replaces 08321-21038.

09162-03001

2
Out of stock

14

WASHER This part replaces 08322-21038.

08322-01037

2
Out of stock

15

BAND (L:120)

09407-12402

2
Out of stock

16

SWITCH ASSY,HAN | Includes Item(s) 17 This part replaces 37200-49230.

37200-49232

1
Out of stock

17

SCREW This part replaces 37591-49210.

09125-05102

2
Out of stock

18

SWITCH ASSY,HAN | OPT; Includes Item(s) 19 This part replaces 37200-49210.

37200-49212

1
Out of stock

19

SCREW | OPT This part replaces 37591-49210.

09125-05102

2
Out of stock
