1980 Suzuki GS1100-LT Rear Combination Diagram

← All diagrams

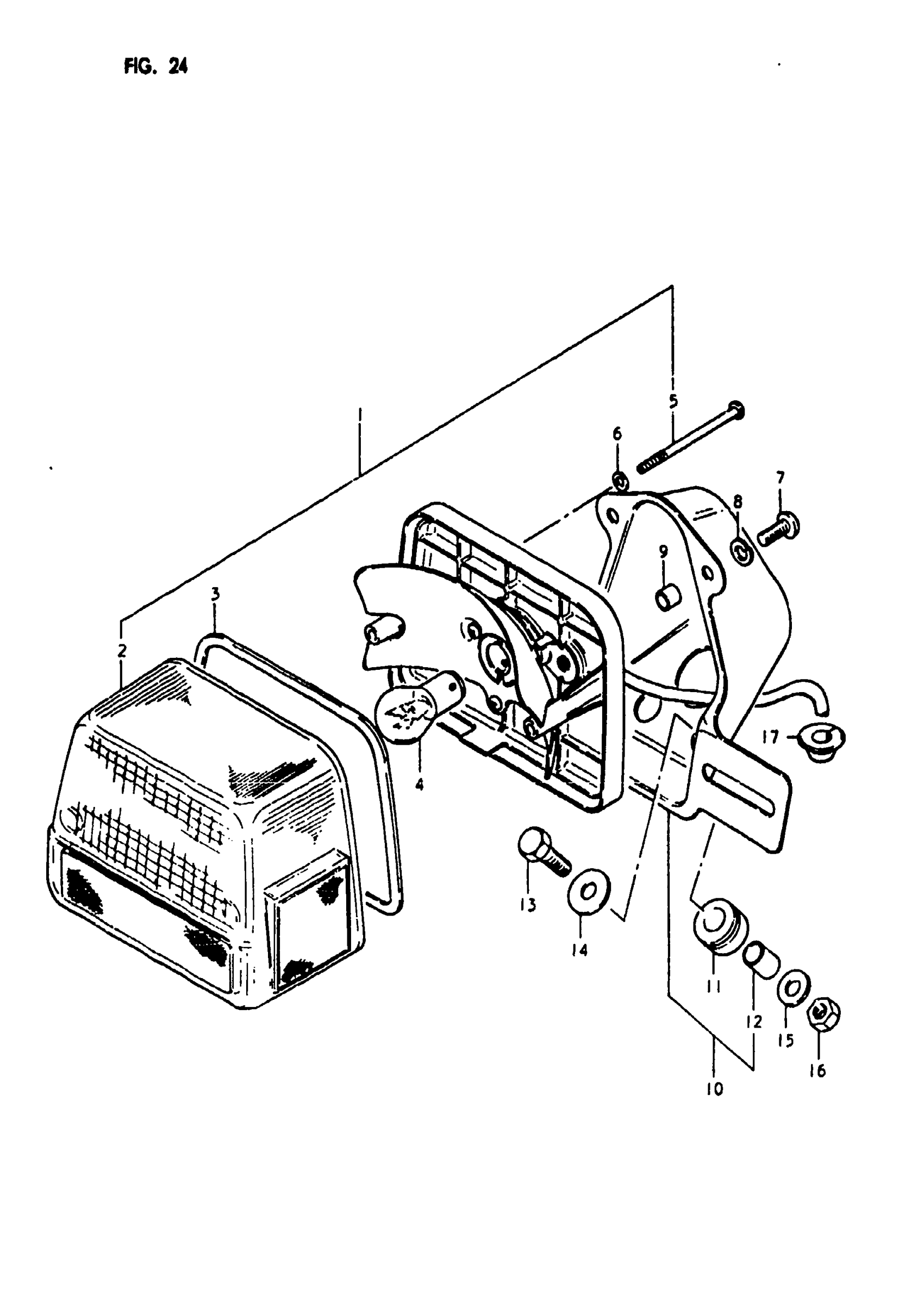

Find the part on the Rear Combination diagram for your 1980 Suzuki GS1100-LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Suzuki GS1100-LT Rear Combination Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP UNIT, REAR COMBINATION | Includes Item(s) 2 - 9 This part replaces 35720-49130.

35720-49130-999

1
Out of stock

2

LENS

35712-49130

1
Out of stock

3

GASKET

35713-49130

1
Out of stock

4

BULB (12V, 23/8W)

09471-12035

1
Out of stock

5

SCREW

35723-44130

2

$2.50

In stock

6

GASKET

35627-43010

2

$2.65

In stock

7

2

$2.10

In stock

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

9

SPACER

35766-39210

2
Out of stock

10

BRACKET ASSY | Includes Item(s) 11 - 12

35730-49130

1
Out of stock

11

CUSHION

35765-22210

3

$3.95

In stock

12

SPACER

35766-37120

3
Out of stock

13

3

$2.10

In stock

14

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

3
Out of stock

15

3

$1.84

In stock

16

3

$1.82

In stock

17

GROMMET, LEAD WIRE

09308-07004

2

$2.58

In stock
