1980 Suzuki GS1100-LT Left Handle Switch Diagram

← All diagrams

Find the part on the Left Handle Switch diagram for your 1980 Suzuki GS1100-LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

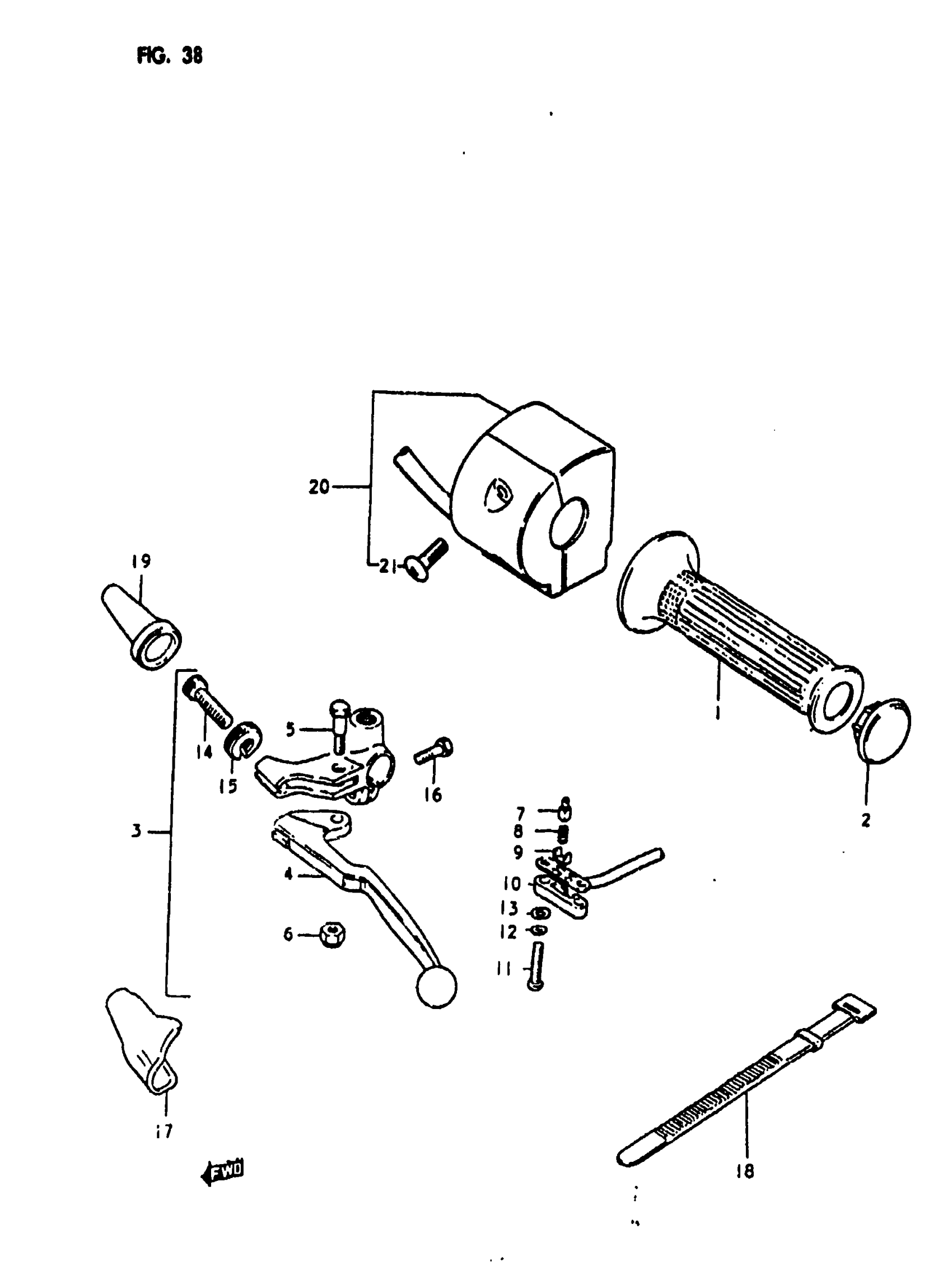

1980 Suzuki GS1100-LT Left Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, LH This part replaces 57211-44100.

57211-49500

1
Out of stock

2

CAP, GRIP END LH

57216-49100

1
Out of stock

3

LEVER ASSY,CLUT | Includes Item(s) 4 - 16 This part replaces 57500-49111.

57500-49301

1
Out of stock

4

LEVER, CLUTCH

57620-49111

1
Out of stock

5

BOLT This part replaces 57431-11011.

57431-11013

1
Out of stock

6

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

7

HOLDER This part replaces 57461-18600.

57465-18601

1
Out of stock

8

HOLDER This part replaces 57462-18600.

57465-18601

1
Out of stock

9

HOLDER This part replaces 57463-18600.

57465-18601

1
Out of stock

10

COVER

57481-33010

1
Out of stock

11

SCREW This part replaces 09125-03105.

09125-03105-XC0

2
Out of stock

12

WASHER,LOCK This part replaces 08321-21038.

09162-03001

2
Out of stock

13

WASHER This part replaces 08322-21038.

08322-01037

1
Out of stock

14

ADJUSTER, CABLE

57441-11010

1
Out of stock

15

NUT

57442-11010

1
Out of stock

16

BOLT

57451-49100

1
Out of stock

17

COVER

57661-31000

1
Out of stock

18

BAND (L:120)

09407-12402

2
Out of stock

19

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

1
Out of stock

20

SWITCH ASSY,HAN | Includes Item(s) 21 This part replaces 37400-49230.

37400-45373

1
Out of stock

21

SCREW This part replaces 02112-05165.

02112-05164

2
Out of stock
