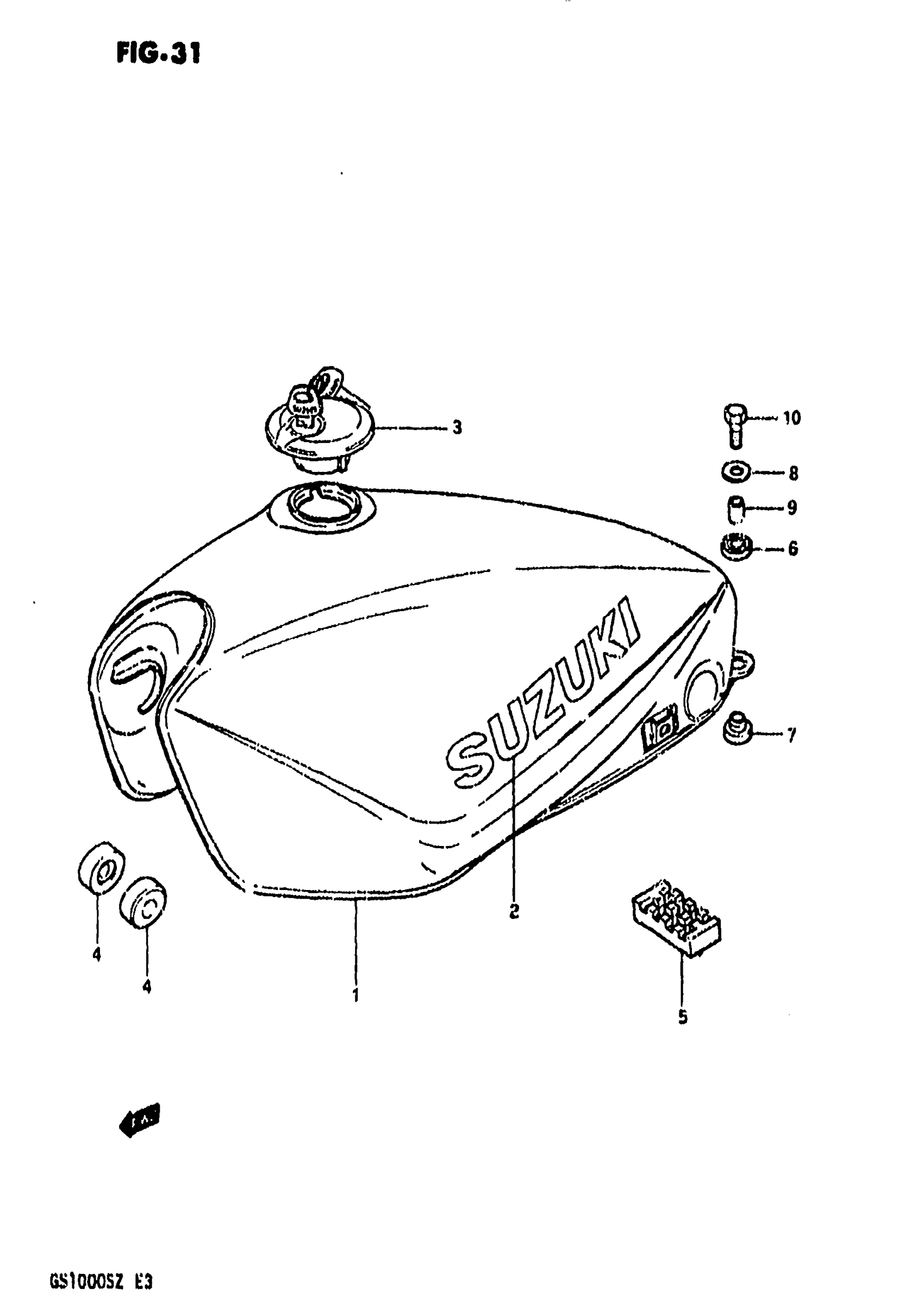

Suzuki GS1000S (1982) FUEL TANK Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE This part replaces 44100-49300-13L.

44100-49301-YD8

Unavailable

2

EMBLEM (RED)

68111-33200-05F

$20.03

3

CAP SET,FUEL TA This part replaces 44200-34301-KEY.

44200-34821

$116.65

4

CUSHION This part replaces 09329-10007.

09329-10026

$1.91

5

CUSHION,FUEL TA This part replaces 44541-34500.

44541-34501

$12.11

6

CUSHION, REAR UPPER

09320-14013

$2.19

7

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.71

8

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.89

9

SPACER This part replaces 09180-06072.

09180-06271

$2.17

10

BOLT, REAR This part replaces 01107-06308.

01500-06307

$3.17
