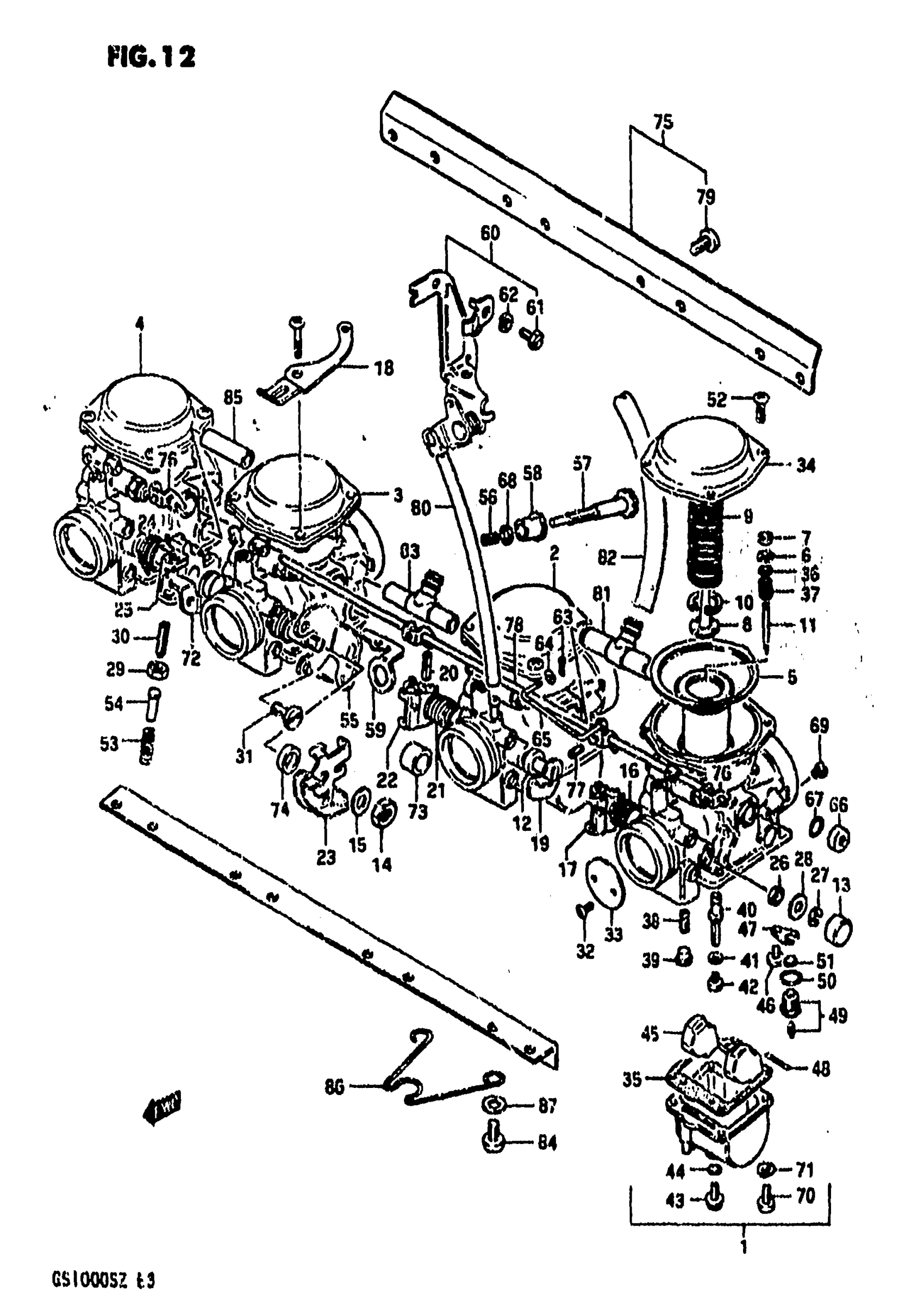

Suzuki GS1000S (1982) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR, NO.1 | LH

13201-49300

Unavailable

2

CARBURETOR, NO.2 | ML

13202-49300

Unavailable

3

CARBURETOR, NO.3 | MR

13203-49300

Unavailable

4

CARBURETOR, NO.4 | RH; Includes Item(s) 5 - 74

13204-49300

Unavailable

5

DIAPHRAGM

13500-49250

Unavailable

6

E RING

13394-31210

$4.37

7

RING

13387-44030

$5.49

8

GUIDE HOLDER

13389-44030

Unavailable

9

SPRING

13503-49200

Unavailable

10

CLIP

13581-44030

Unavailable

11

NEEDLE, JET (5058)

13383-49200

Unavailable

12

GASKET | ML, MR

13557-49200

Unavailable

13

CAP | RH, LH

13578-47070

$4.26

14

NUT | MR This part replaces 08310-22088.

08310-00087

$1.83

15

WASHER | MR

13606-47070

Unavailable

16

SPRING | LH

13573-47070

Unavailable

17

SHAFT | LH

13550-49200

Unavailable

18

BRACKET | MR This part replaces 13621-49200.

13621-49160

Unavailable

19

SHAFT | ML

13550-49210

Unavailable

20

PIN | LH,ML,RH

13563-47070

Unavailable

21

SPRING | ML

13573-45110

Unavailable

22

LEVER | ML

13553-47070

Unavailable

23

LEVER | MR

13555-47070

Unavailable

24

SPRING | MR, RH

13573-47080

Unavailable

25

SHAFT | RH

13550-49220

Unavailable

26

SEAL This part replaces 13651-51010.

13651-51011

$2.36

27

E RING | LH, RH

13617-44080

$2.80

28

GASKET | LH, RH

13557-47070

$3.38

29

NUT | LH, ML, RH

13607-47070

$3.55

30

SCREW | LH, ML, RH

13605-47080

$8.77

31

SCREW | MR

13605-45110

Unavailable

32

SCREW

13604-44080

$2.80

33

VALVE, THROTTLE (135)

13551-49200

Unavailable

34

COVER, DIAPHRAGM

13502-49250

Unavailable

35

GASKET,FLOAT CH This part replaces 13251-44080.

13251-44081-H17

$7.94

36

WASHER

13382-44030

$3.50

37

SPRING

13388-44030

$9.17

38

JET, PILOT (45)

09492-45015

Unavailable

39

PLUG

13357-44080

$3.97

40

JET, NEEDLE (X1)

09494-00267

Unavailable

41

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

42

JET, MAIN (110)

09491-22016

$9.22

43

SCREW

13247-44080

$7.51

44

O RING

13246-44080

$2.80

45

FLOAT

13250-44080

$26.83

46

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

47

PLATE

13373-39110

$6.25

48

PIN

13254-92311

$2.31

49

VALVE ASSY, NEEDLE (2.0) This part replaces 13370-44080.

13370-44500

$46.66

50

O RING This part replaces 13374-44080.

13374-35C00

$5.48

51

FILTER This part replaces 13376-65010.

13376-19F00

$9.41

52

SCREW This part replaces 02112-05168.

02112-05167

$1.97

53

SPRING | LH, ML, RH

13268-44010

Unavailable

54

PIN | LH, ML, RH

13575-47070

Unavailable

55

BRACKET | MR

13627-45110

Unavailable

56

SPRING | MR

13271-93011

$5.83

57

ADJUSTER | MR

13267-47070

Unavailable

58

BUSH | MR

13276-31210

Unavailable

59

BRACKET | MR

13627-44090

Unavailable

60

BRACKET ASSY | ML This part replaces 13624-49200.

13624-45500

Unavailable

61

BOLT | ML This part replaces 01104-05108.

01500-0510B

$1.81

62

LOCK WASHER | ML This part replaces 08321-21058.

08321-0105A

$1.83

63

CLIP, NEEDLE | ML This part replaces 13415-47070.

13394-10010

$6.15

64

WASHER | ML

13523-98010

Unavailable

65

LEVER | ML

13422-47070

Unavailable

66

.CAP, STARTER VALVE

13682-31210

$4.00

67

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.89

68

WASHER | MP

13432-47090

$2.58

69

JET,PILOT AIR (100)

09493-32002

$18.00

70

SCREW This part replaces 02112-05168.

02112-05167

$1.97

71

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

72

SHAFT | MP

13550-49230

Unavailable

73

RING | ML

13574-49200

Unavailable

74

RING | MR

13574-45120

Unavailable

75

FLANGE ASSY | Includes Item(s) 76 - 87

13210-49250

Unavailable

76

LEVER

13422-44080

Unavailable

77

SCREW

13605-47070

Unavailable

78

SHAFT

13410-49200

Unavailable

79

SCREW This part replaces 02152-05128.

02142-05127

$1.97

80

HOSE(4.5X8.5X60 This part replaces 13683-33200.

09355-45001-600

$8.55

81

NIPPLE

13685-49210

$16.09

82

HOSE(6X10X600) This part replaces 13683-47070.

09352-60104-600

$8.24

83

NIPPLE

13685-49200

Unavailable

84

SCREW This part replaces 02112-06168.

02112-06167

$1.43

85

NIPPLE

13685-47070

$32.33

86

CLIP

13615-49200

Unavailable

87

WASHER

13615-49200

Unavailable
