1982 Suzuki GS1000S AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1982 Suzuki GS1000S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

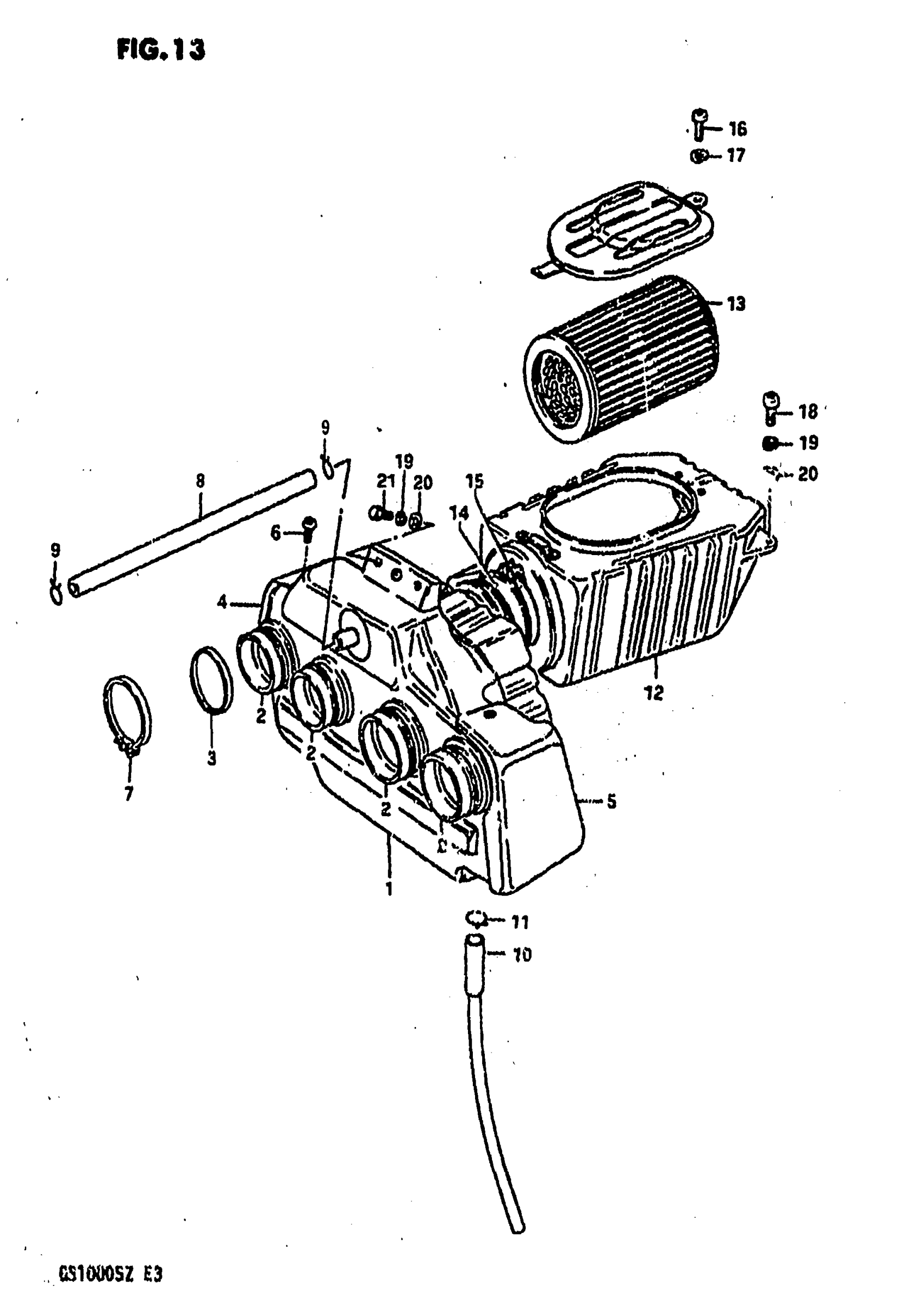

1982 Suzuki GS1000S AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE ASSY, FRONT | Includes Item(s) 2 - 9

13710-49300

1
Out of stock

2

HOSE, OUTLET This part replaces 13881-49020.

13881-49021

4
Out of stock

3

RING

13885-47030

4
Out of stock

4

COVER, RH This part replaces 13831-45500.

13831-49020

1
Out of stock

5

COVER, LH This part replaces 13832-45500.

13832-49020

1
Out of stock

6

SCREW This part replaces 02112-04106.

02112-0410A

4
Out of stock

7

CLAMP This part replaces 09402-64306.

09402-64203

4
Out of stock

8

HOSE This part replaces 13851-00220.

09352-11154-600

1
Out of stock

9

CLIP

09401-14301

2
Out of stock

10

TUBE,DRAIN This part replaces 13870-00010.

13870-11459

1
Out of stock

11

CLIP

09401-14301

1
Out of stock

12

CASE SET, REAR | Includes Item(s) 13 - 17

13700-45810

1
Out of stock

13

FILTER

13780-45500

1
Out of stock

14

HOSE, JOINT

13795-49000

1
Out of stock

15

CLAMP This part replaces 13796-49000.

09402-70902

2
Out of stock

16

SCREW This part replaces 02112-05128.

02112-05127

1
Out of stock

17

LOCK WASHER This part replaces 08321-21058.

08321-0105A

1
Out of stock

18

SCREW This part replaces 02112-06208.

02112-06207

2
Out of stock

19

4

$2.28

In stock

20

WASHER This part replaces 08322-21068.

08322-01067

4
Out of stock

21

BOLT This part replaces 01107-06208.

01500-06207

2
Out of stock
