1979 Suzuki GS1000L OIL Pump Diagram

← All diagrams

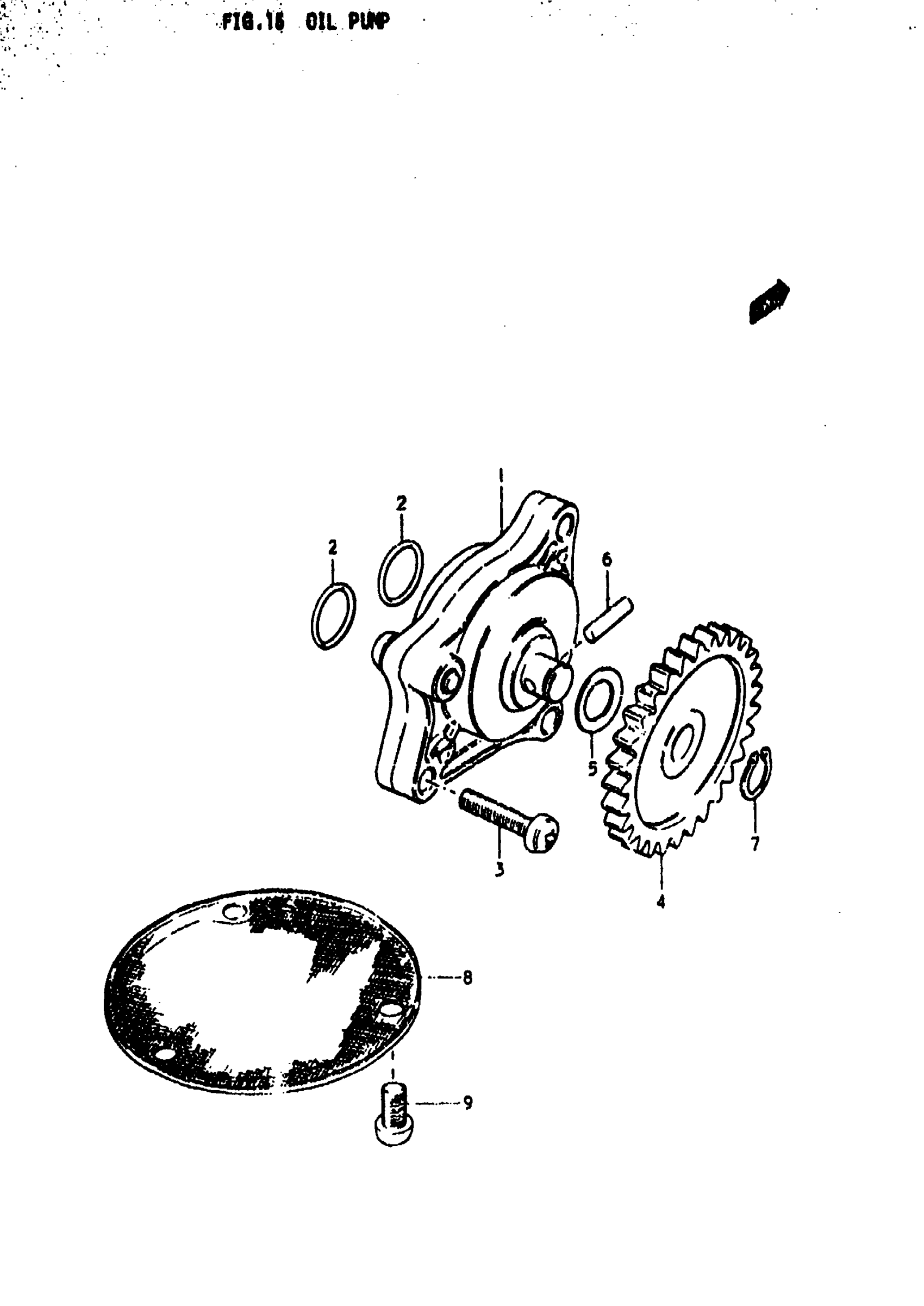

Find the part on the OIL Pump diagram for your 1979 Suzuki GS1000L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Suzuki GS1000L OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP, ENGINE OIL This part replaces 16400-49011.

16400-49020

1
Out of stock

2

O RING

09280-13004

2
Out of stock

3

SCREW This part replaces 02112-06258.

02112-06257

3
Out of stock

4

GEAR, DRIVEN (NT:33) | NL:33 This part replaces 16331-49990.

16331-49000

1
Out of stock

5

WASHER

08221-10185

1
Out of stock

6

PIN

09261-04009

1
Out of stock

7

CIRCLIP

08331-31109

1
Out of stock

8

STRAINER, ENGINE OIL This part replaces 16520-45000.

16520-45010

1
Out of stock

9

SCREW This part replaces 02112-06128.

02112-06127

3
Out of stock
