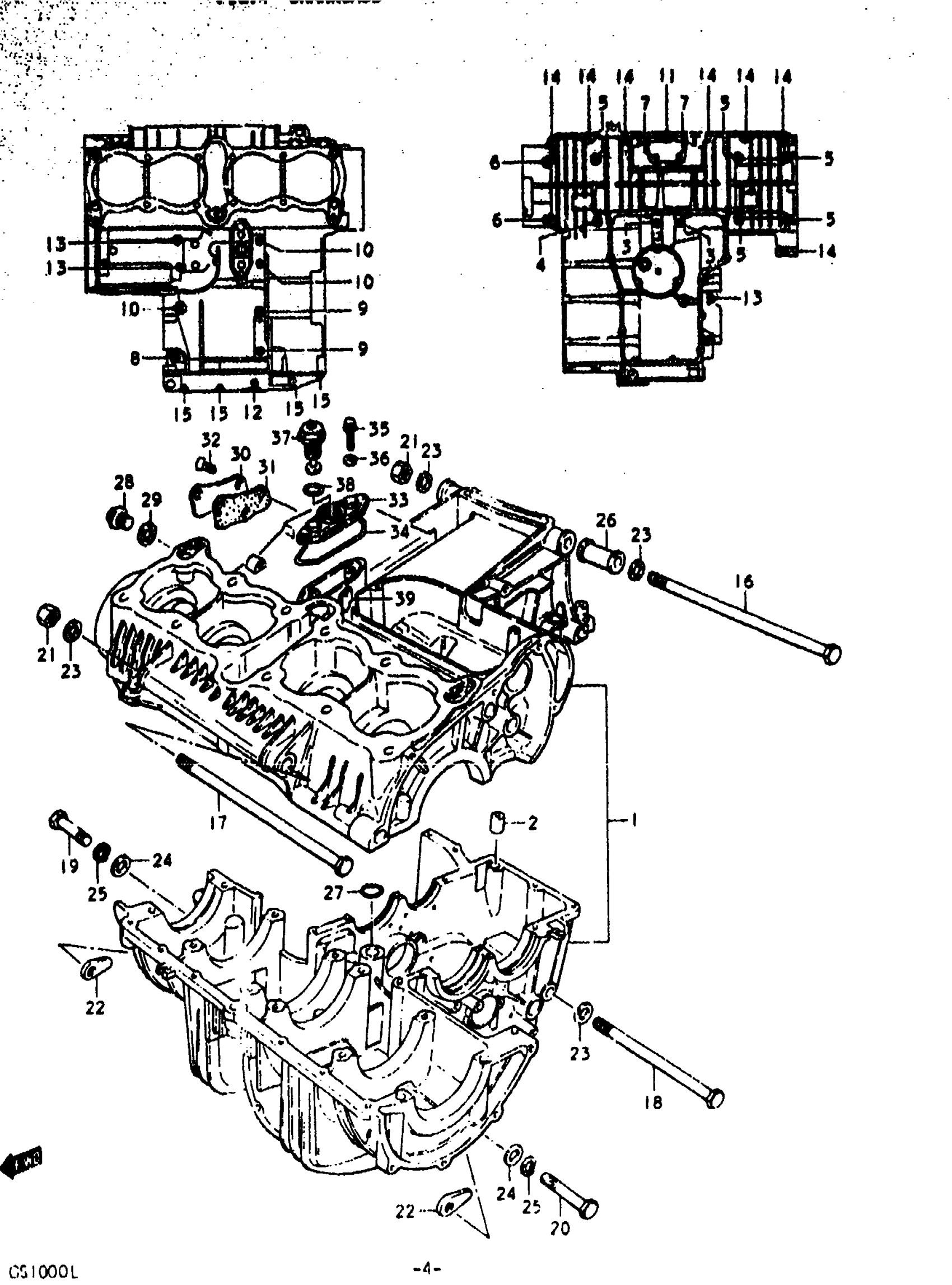

Suzuki GS1000L (1979) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 15

11300-49810

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.25

3

BOLT (8X125) | 8x125 This part replaces 09103-08020.

09103-08106

Unavailable

4

BOLT (8X100) | 8x100 This part replaces 09103-08009.

09103-08070

$5.24

5

BOLT This part replaces 01517-08908.

01550-08907

$5.63

6

BOLT This part replaces 01517-08658.

01550-08657

$5.10

7

BOLT This part replaces 01517-08608.

01550-08607

$3.54

8

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.37

9

BOLT This part replaces 01517-06858.

01550-06857

$3.49

10

BOLT 6X75 This part replaces 01517-06758.

01550-06757

$4.70

11

BOLT (6X50) This part replaces 01517-06508.

01550-06507

$3.70

12

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.80

13

BOLT This part replaces 01517-06408.

01550-06407

$2.80

14

BOLT This part replaces 01517-06358.

01550-06357

$2.80

15

BOLT This part replaces 01517-06308.

01550-06307

$2.80

16

BOLT, ENGINE MOUNTING | 10x265

09100-10110

Unavailable

17

ENGINE MOUNT BO | 10x250 This part replaces 09101-10010.

09101-10010-XC0

Unavailable

18

BOLT, ENGINE MOUNTING | 10x165

09100-10078

$13.80

19

BOLT This part replaces 01107-10608.

01500-1060A

$4.18

20

BOLT This part replaces 01107-10508.

01500-1050A

$4.12

21

NUT

09159-10011

$3.06

22

NUT

09159-10020

$5.63

23

WASHER This part replaces 08322-11108.

08322-01107

$1.95

24

WASHER | 10x15x1.2

09160-10005

$1.86

25

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.89

26

SPACER (L:65) This part replaces 11610-49000.

11610-49300

$20.33

27

O RING, OIL GALLERY

09280-13001

$2.51

28

PLUG This part replaces 09247-14012.

09247-14026

$3.49

29

GASKET

09168-14004

$1.69

30

CAP, OIL GALLERY

11394-45000

Unavailable

31

GASKET,OIL GALL This part replaces 11497-45000.

11497-45000-H17

Unavailable

32

SCREW This part replaces 02122-05168.

02122-05167

$0.81

33

HOUSING, SWITCH

16445-45000

Unavailable

34

O RING

16448-45000

$8.75

35

BOLT This part replaces 01517-06258.

01550-06257

$2.38

36

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.09

37

SWITCH ASSY,OIL This part replaces 37820-45050.

37820-45061

$35.73

38

O RING

09280-19001

$1.43

39

GROMMET, STARTING MOTOR

31271-45001

Unavailable
