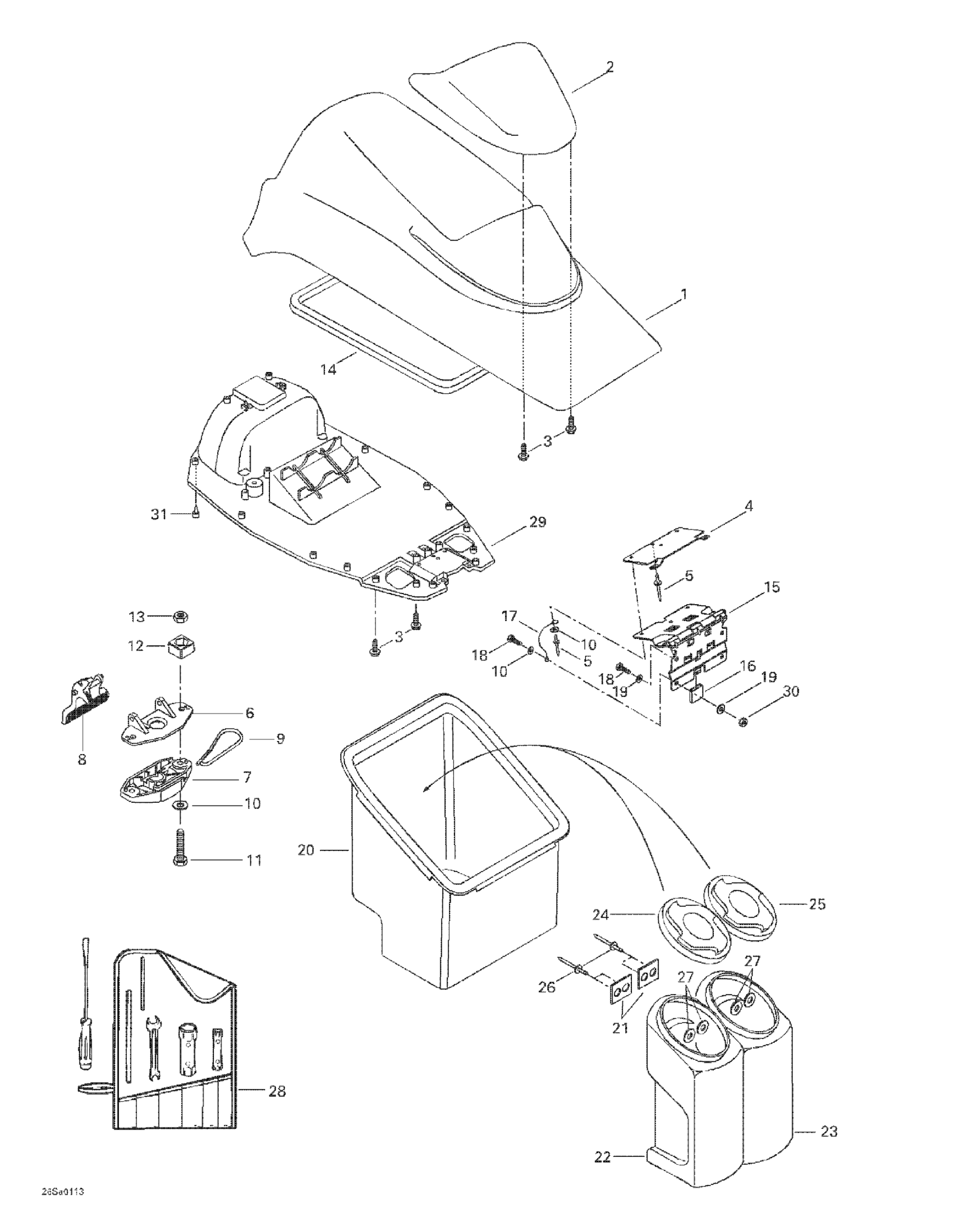

Sea-doo GS, 5548, 2001 Front Storage Compartment Diagram

#

Description
Price

1

Upper Storage Cover

269500614

Unavailable

2

Deflector

269500615

Unavailable

3

Hex. Flange Screw K40 X 13

241141360

$0.67

4

Retainer Plate

269500280

Unavailable

5

Pop Rivet 3/16"

293150039

$1.49

6

Latch Ass'y

269700109

$24.99

7

Latch Ass'y

269700109

$24.99

8

Latch Ass'y

269700109

$24.99

9

Latch Spring

269700017

$9.19

10

Stainless Flat Washer M6

234061600

$0.33

11

Hex. Screw M6 X 30

207063060

$1.89

12

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

13

Hex. Nut M6

232061600

$1.15

14

Was 293200017 Neoprene Seal

219704365

$149.99

15

Hinge Ass'y

269500613

Unavailable

16

Protector Cap

293830046

Unavailable

17

RETAINER CABLE - Call your local BRP dealership

269500524

Unavailable

18

SOCKET SCREW M6 X 20 - Call your local BRP dealership

205462060

Unavailable

19

Flat Washer M6, Stainless

234062600

$0.77

20

STORAGE TRAY - Call your local BRP dealership

269500991

Unavailable

21

GASKET - Call your local BRP dealership

293250037

Unavailable

22

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

23

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

24

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

25

Storage Cap

269500604

Unavailable

26

Pop Rivet 1/8''

293150033

Unavailable

27

Flat Washer M3, Stainless

234032600

$0.55

28

Owners Tool Kit

295500783

Unavailable

29

Lower Storage Cover

269500655

Unavailable

30

Hex. Elastic Stop Nut M6

232561600

$1.15

31

Rubber Bumper

293830005

$8.09
