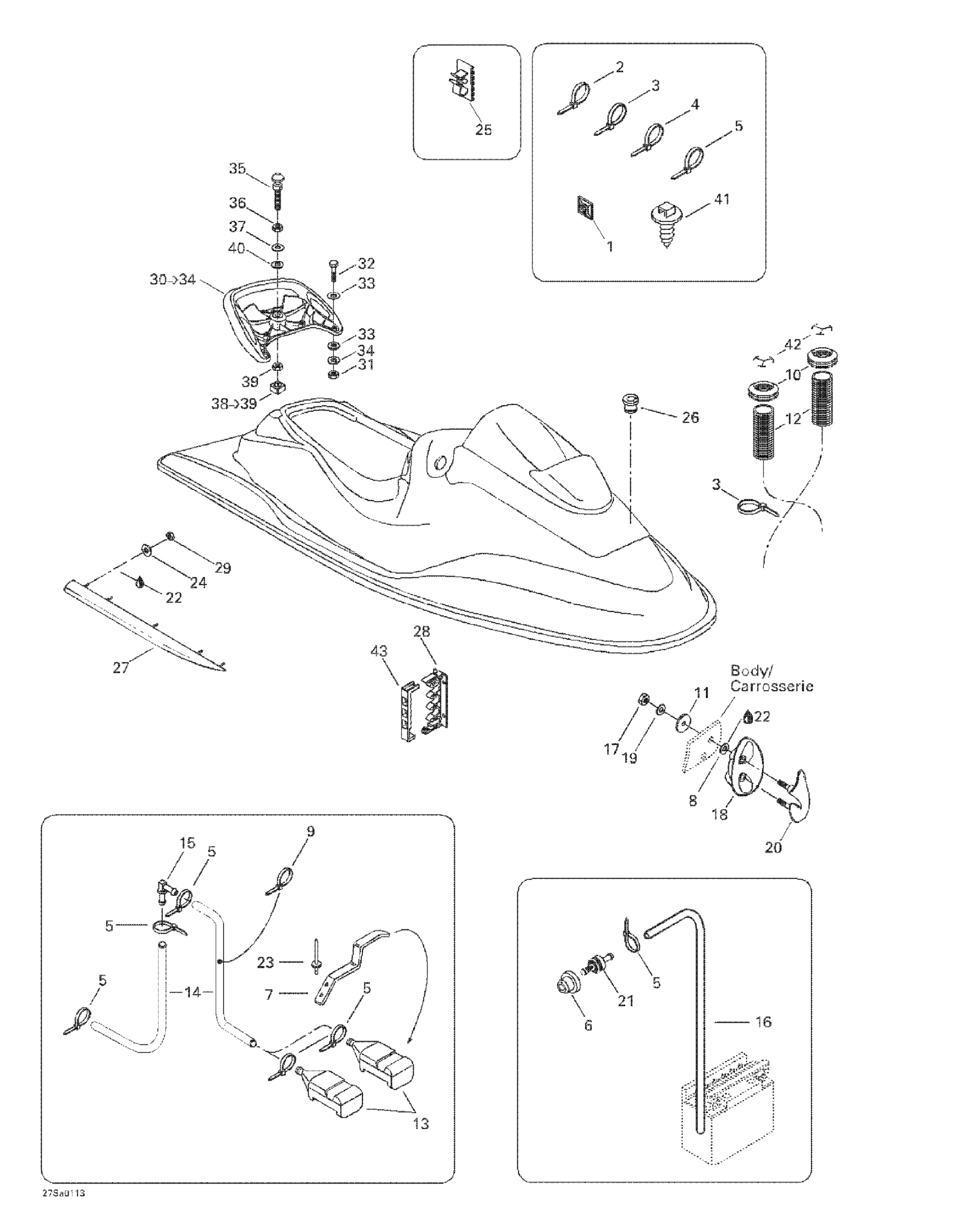

Sea-doo GS, 5548, 2001 Body, Front View Diagram

#

Description
Price

1

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

2

Tie-Rap 180 mm

414115200

$0.11

3

Tie Wrap 368 mm

293750008

$1.04

4

Tie Wrap 142 mm

293750002

$1.25

5

Tie Wrap 94 mm | 4X4

293750001

$1.03

6

Grommet

293720029

$1.59

7

LH SPRING CLIP - Call your local BRP dealership

292000398

Unavailable

8

Stainless, Flat Washer 8 mm

234081600

$0.55

9

Tie-Rap 180 mm

414115200

$0.11

10

Grommet

293720036

Unavailable

11

Rubber Washer

293830037

$2.68

12

Vent Tube

291000870

Unavailable

13

Bailer Screen

292000688

Unavailable

14

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

15

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

16

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

17

Hex. Elastic Nut M8

232581600

$1.48

18

Shell, White

292000511

Unavailable

19

Flat Washer 8 mm, Stainless

250200175

$3.06

20

Eye-Bow (White)

292000510

Unavailable

21

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

22

Silicone Sealant 51388, 300 ml

296000309

$36.99

23

Avdel Rivet 3/16"

293150037

$0.56

24

Flat Washer M6, Stainless

234062600

$0.77

25

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

26

GROMMET - Call your local BRP dealership

293720017

Unavailable

27

RH Sponson

292000494

Unavailable

LH Sponson

292000495

Unavailable

28

Tie Mount

293750013

Unavailable

29

Hex. Elastic Stop Nut M6

232561600

$1.15

30

Grab Handle (Black) | Includes 42 - 46.

295500369

Unavailable

31

Hex. Nut M6

232061600

$1.15

32

Hex. Screw M6 X 40

207064060

$1.69

33

Flat Washer M6, Stainless

234062600

$0.77

34

Lock Washer Helical M6

234161601

$1.15

35

LATCH STUD - Call your local BRP dealership

291000691

Unavailable

36

Hex. Jam Nut M10

232100600

$2.22

37

Flat Washer 10 mm, Stainless

234002600

$2.22

38

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

39

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

40

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

41

Mount Dart

293730040

$1.04

42

Restrictor

291001098

Unavailable

43

Tie Mount Top

293750012

Unavailable
