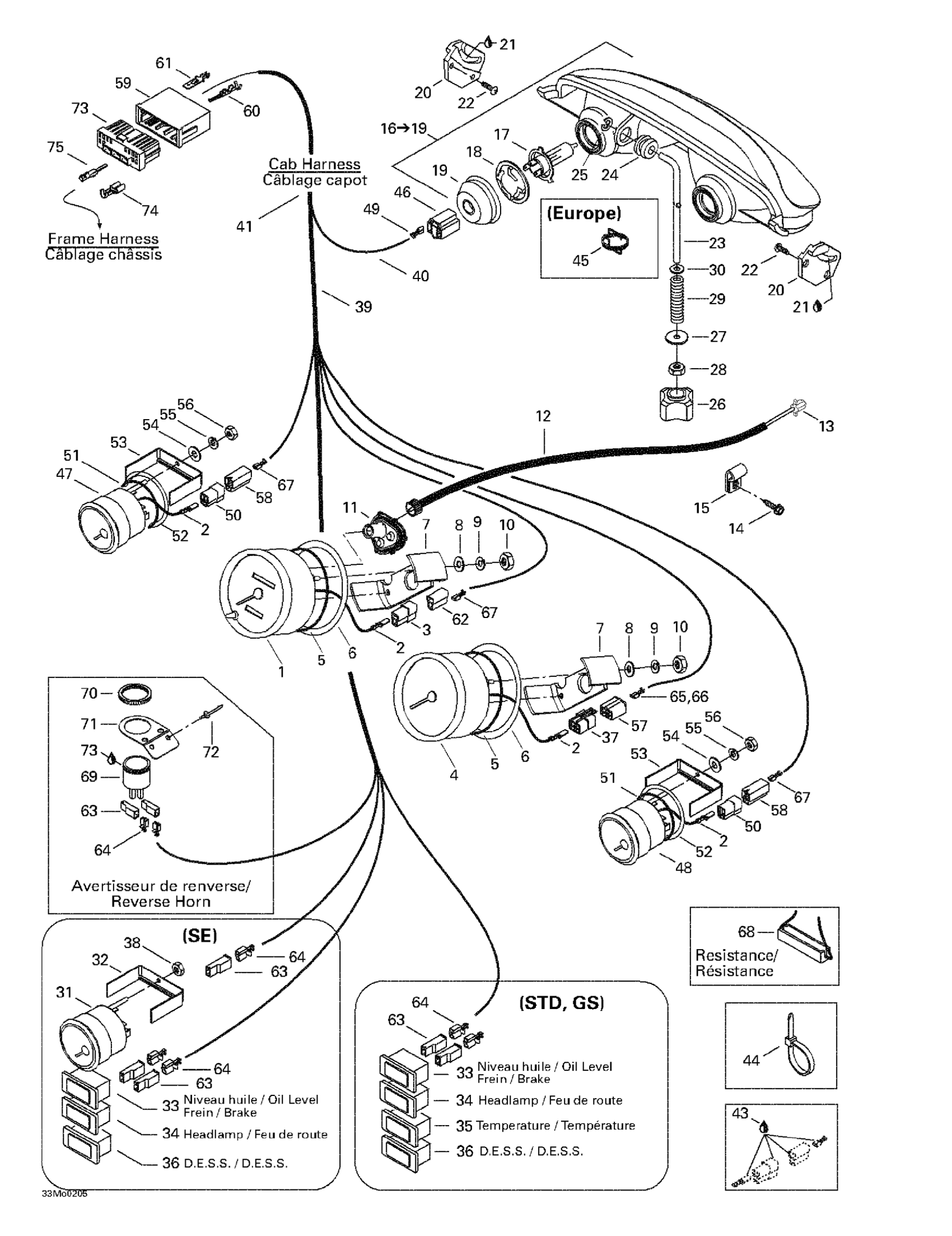

Ski-Doo Grand Touring 500/600/700/800, 2002 10- Cab Harness Diagram

#

Description
Price

1

Speedometer, Kmh

515175335

Unavailable

Speedometer, Mph

515175336

Unavailable

2

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

3

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

4

Tachometer

515175621

Unavailable

5

O-Ring

414807100

Unavailable

6

Washer

517258500

Unavailable

7

Case Holder

414806500

Unavailable

8

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

9

Lock Washer

414806700

Unavailable

10

Nut

414806900

Unavailable

11

Drive Angle

515175400

Unavailable

12

Speedometer Cable

415101500

Unavailable

13

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Open Clamp

414176000

$1.99

16

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

17

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

18

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

19

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

20

RH Support

517289300

Unavailable

LH Support

517289400

Unavailable

21

Grease Tube Lmz, 400 G

413707500

Unavailable

22

Headlamp Screw

732601315

Unavailable

23

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

24

Grommet - Call your local BRP dealership

415100800

Unavailable

25

Push Nut

732610072

$2.19

26

Handle - Call your local BRP dealership

515175548

Unavailable

27

Washer

224060251

$0.58

28

Elastic Stop Nut M6

232561414

$0.55

29

SPRING - Call your local BRP dealership

415100600

Unavailable

30

Flat Washer 6 mm

234061410

$1.36

31

Pressure Gauge | Grand Touring 600. Grand Touring 800.

415043500

Unavailable

32

Case Holder | Grand Touring 600. Grand Touring 800.

415122900

Unavailable

33

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

Unavailable

34

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

Unavailable

35

PILOT LAMP - Call your local BRP dealership

515175727

Unavailable

36

Pilot Lamp, Dess | 600 SUV

410113300

Unavailable

36

Pilot Lamp (Reverse/D.E.S.S.)

515175729

Unavailable

37

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

38

Elastic Stop Nut M4

232541484

$0.74

39

Was 409901800 Tubing (13 mm)

219704400

$14.49

40

Tubing 10 MM 1000MM Long

219704407

$2.79

41

Hood Harness

515175641

Unavailable

42

Frame Harness (Not Shown)

515175639

Unavailable

43

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

44

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Wrap 142 mm

293750002

$1.25

Tie-Rap 173 mm

293750009

$1.04

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 180 mm

414115200

$0.11

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

45

SPRING - Call your local BRP dealership | Europe

515175324

Unavailable

46

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

47

Temperature Gauge

515175342

Unavailable

48

FUEL GAUGE - Call your local BRP dealership

515175343

Unavailable

49

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

50

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

51

O-RING - Call your local BRP dealership

414807200

Unavailable

52

WASHER - Call your local BRP dealership

517258600

Unavailable

53

Case Holder

415099800

Unavailable

54

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

55

Lock Washer | SE Models

414833700

Unavailable

56

NUT - Call your local BRP dealership | SE Models

414833600

Unavailable

57

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

58

Female Housing

409204300

Unavailable

59

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

60

Male Terminal

515175232

$1.58

61

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

62

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

63

Female Terminal Housing, 1 Circuit

409010400

$7.62

64

Female Terminal

409010100

$5.61

65

Male Terminal

409009300

Unavailable

66

Male Terminal

409009200

Unavailable

67

Female Terminal

409005300

Unavailable

68

Resistance

515175241

$17.99

69

HORN - Call your local BRP dealership

515176035

Unavailable

70

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

71

PLATE - Call your local BRP dealership

515175688

Unavailable

72

Pop Rivet 3/16"

390402200

$0.35

73

Silicone Sealant 51388, 300 ml

296000309

$36.99
