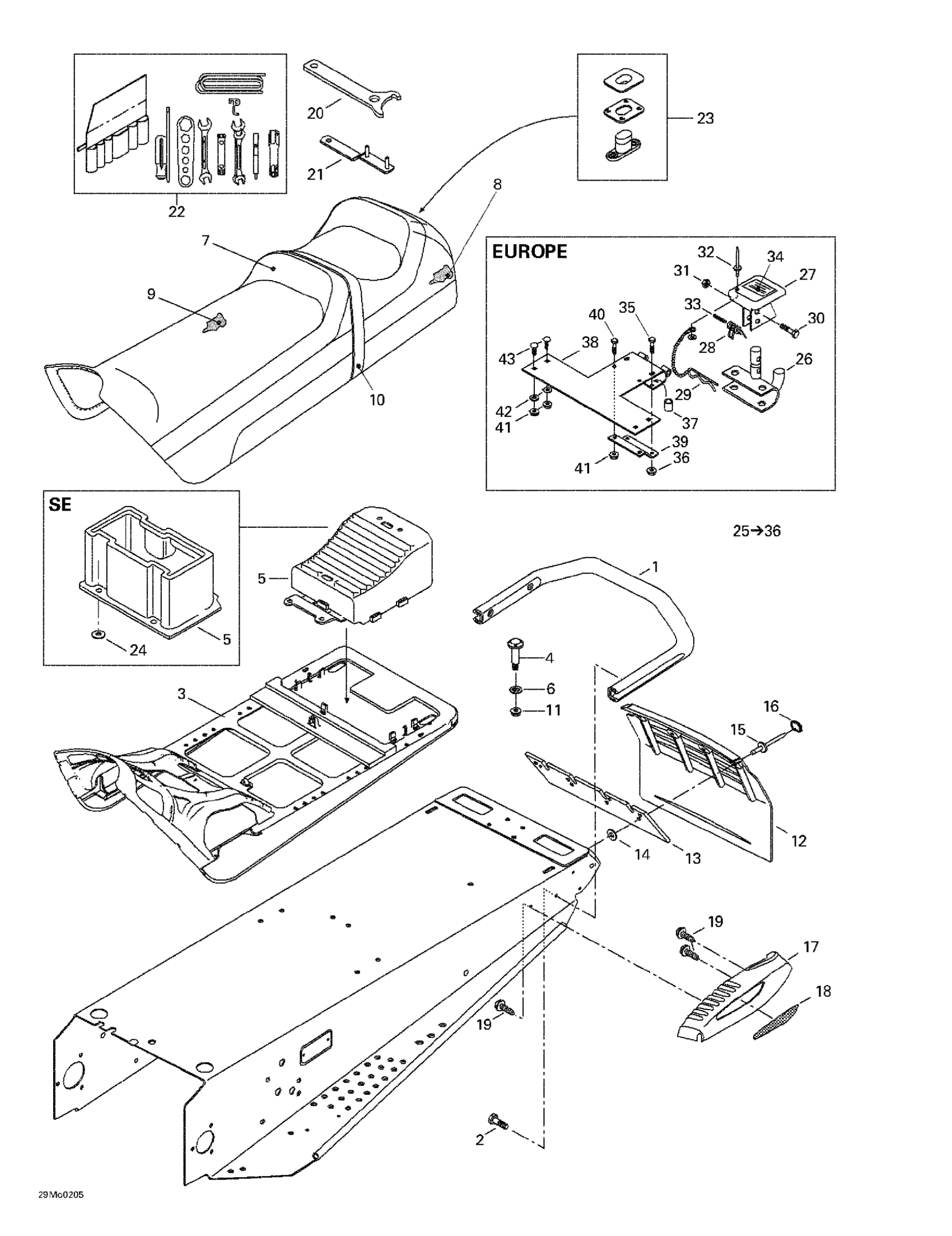

Ski-Doo Grand Touring 500/600/700/800, 2002 09- Seat, Accessories, Hitch Diagram

#

Description
Price

1

Rear Bumper | Includes 32 to 33

517272510

Unavailable

2

Hex. Flange Screw M8 X 20

207682044

$1.15

3

Sub-Seat

510003739

Unavailable

Sub-Seat, Se-Air | Grand Touring 600. Grand Touring 700.

510003972

Unavailable

4

«T» Bolt

732601221

Unavailable

5

Rear Trunk

510003751

Unavailable

Rear Trunk, Se-Air | Grand Touring 600. Grand Touring 700.

572106300

Unavailable

6

Push Nut

732610072

$2.19

7

Seat Cover | Grand Touring 500. Grand Touring 600. Grand Touring 700.

510003965

Unavailable

Seat Cover (SE SB) | Grand Touring 600. Grand Touring 800.

510003969

Unavailable

Seat Cover (SE) | Grand Touring 600. Grand Touring 800.

510003995

Unavailable

Seat Cover (GS Olympic) | Grand Touring 700.

510004031

Unavailable

8

Seat Foam, Side

510003741

Unavailable

9

Seat Foam, Top

510003752

Unavailable

Seat Foam, Top, Se-Air | Grand Touring 600. Grand Touring 700.

510003982

Unavailable

10

Seat Belt

510003753

Unavailable

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

SNOW GUARD - Call your local BRP dealership

520000229

Unavailable

Snow Guard, Europe | SE GT Europe

520000228

Unavailable

Snow Guard

572103804

Unavailable

13

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

14

Flat Washer

517225900

$0.18

15

Pop Rivet 3/16”

293150087

$0.93

16

Cap

415073300

Unavailable

17

RH MOULDING KIT - Call your local BRP dealership | Sport GT / SE GT

861780100

Unavailable

LH Moulding Kit | Sport GT / SE GT

861780200

Unavailable

18

RH Reflector, Red

516000237

Unavailable

RH Reflector, Yellow, Europe | SE GT Europe

516000241

Unavailable

LH Reflector, Red

516000238

Unavailable

LH Reflector, Yellow, Europe | SE GT Europe

516000242

Unavailable

19

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

20

Adjustment Wrench

529000035

$2.09

21

Adjustment Wrench | LT

520000126

$1.49

22

Tool Kit | Includes 12 to 13

529035596

$27.99

23

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

24

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

25

HITCH ASS?Y KIT - Call your local BRP dealership | Includes 49 to 60 / Europe

861778700

Unavailable

26

Hitch | Europe

517199300

Unavailable

27

Hitch Protector | Europe

517152700

Unavailable

28

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

29

Hair Pin

114045200

$11.11

30

Hex. Screw M6 X 30

207063044

$1.26

31

Elastic Stop Nut M6

232561414

$0.55

32

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

33

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

34

Security Label, Hitch

516001243

Unavailable

35

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

SPACER - Call your local BRP dealership | Europe

517191700

Unavailable

38

Fixation | Grand Touring 500. Grand Touring 600. Grand Touring 800.

511000030

Unavailable

39

REINFORCEMENT - Call your local BRP dealership | Europe

511000022

Unavailable

40

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

41

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

42

Flat Washer

224061201

$1.37

43

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58
