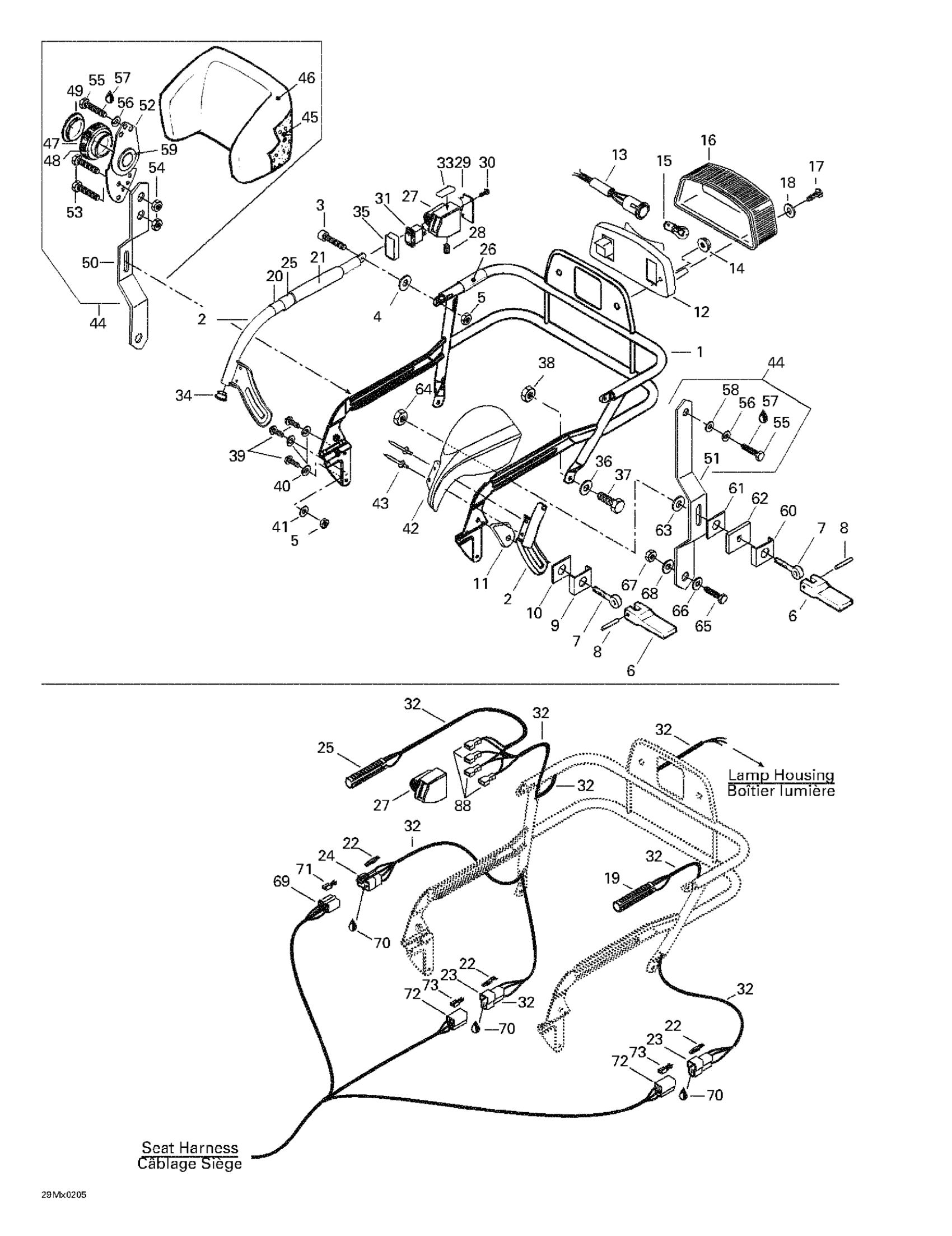

Ski-Doo Grand Touring 500/600/700/800, 2002 09- Luggage Rack Diagram

#

Description
Price

1

Rack Ass’Y

511000124

Unavailable

2

RH Arm, Rack

511000012

Unavailable

LH Am, Rack

517300900

Unavailable

3

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

205061644

Unavailable

4

Flat Washer 6 mm

234062100

$1.26

5

Elastic Stop Nut M6

232561414

$0.55

6

Lock Lever

572038200

Unavailable

7

Eye Bolt

517257600

Unavailable

8

Pin

414821400

$7.55

9

Guide

517290000

Unavailable

10

Outer Spacer

570063800

Unavailable

11

Spacer Block

572088900

Unavailable

12

LAMP HOUSING - Call your local BRP dealership

515175397

Unavailable

13

Socket

511000198

Unavailable

14

Hex. Flange Elastic Nut M5

233251414

$1.04

15

Bulb

520000758

$9.10

16

Lens

414513700

$28.99

17

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

18

Washer - Call your local BRP dealership

414516400

Unavailable

19

Heater

515175710

Unavailable

20

Reflective Sheet

414988700

Unavailable

21

LH Grip, 370 mm

415050200

Unavailable

RH Grip, 250 mm

415050300

Unavailable

22

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

23

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

24

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

25

Heater with Terminal

515175709

Unavailable

26

Grip, Short, 60 mm

415050400

Unavailable

27

Switch Housing

572089200

Unavailable

28

Pressure Screw M8 X 8 | 4X4

206580890

$1.69

29

Plate

572089300

Unavailable

30

Screw

732601255

Unavailable

31

Rocker Switch

511000001

Unavailable

32

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

33

HEAT GRIP DECAL - Call your local BRP dealership

418001800

Unavailable

34

CAP, BLACK - Call your local BRP dealership

572110800

Unavailable

35

Switch Protector

511000002

Unavailable

36

Flat Washer 8 mm

234081410

$0.83

37

Hex. Screw M8 X 20

207182044

$0.74

38

Hex. Flange Elastic Nut M8

233281414

$1.47

39

Hex. Flange Screw M6 X 16

210261650

$1.67

40

Lock Washer Helical M6

234161601

$1.15

41

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

42

RH Protector

572089400

Unavailable

LH Protector

572089500

Unavailable

43

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

44

Backrest Ass'y | Includes 44 - 59.

510003966

Unavailable

45

Backrest Foam

414821200

Unavailable

46

Backrest Cover

510003967

Unavailable

47

TILLER HANDLE - Call your local BRP dealership

414820900

Unavailable

48

STRIP - Call your local BRP dealership

415015500

Unavailable

49

Cap

414821000

Unavailable

50

RH Arm

517296400

Unavailable

51

LH Arm

517296500

Unavailable

52

Recliner

414813300

Unavailable

53

Hex. Screw M8 X 25

207182544

$0.90

54

Hex. Elastic Stop Nut M8

232581414

$0.56

55

Hex. Screw M8 X 20

207182044

$0.74

56

Lock Washer 8 mm

234181401

$0.92

57

Loctite 243, 10 ml

293800060

$21.49

58

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

59

Cap

517250500

Unavailable

60

Guide

517257300

Unavailable

61

SPACER - Call your local BRP dealership

517251300

Unavailable

62

Rubber Shim

570027400

Unavailable

63

Washer

414819500

Unavailable

64

Nut

517250000

Unavailable

65

Hex. Screw M8 X 25

207182584

Unavailable

66

Stainless Steel Flat Washer 8 mm

234081670

$0.67

67

Hex. Elastic Stop Nut M8

232581414

$0.56

68

Washer

414819600

Unavailable

69

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

70

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

71

Female Terminal

561503100

$2.41

72

Female Housing

409204300

Unavailable

73

Female Terminal

515175724

Unavailable
