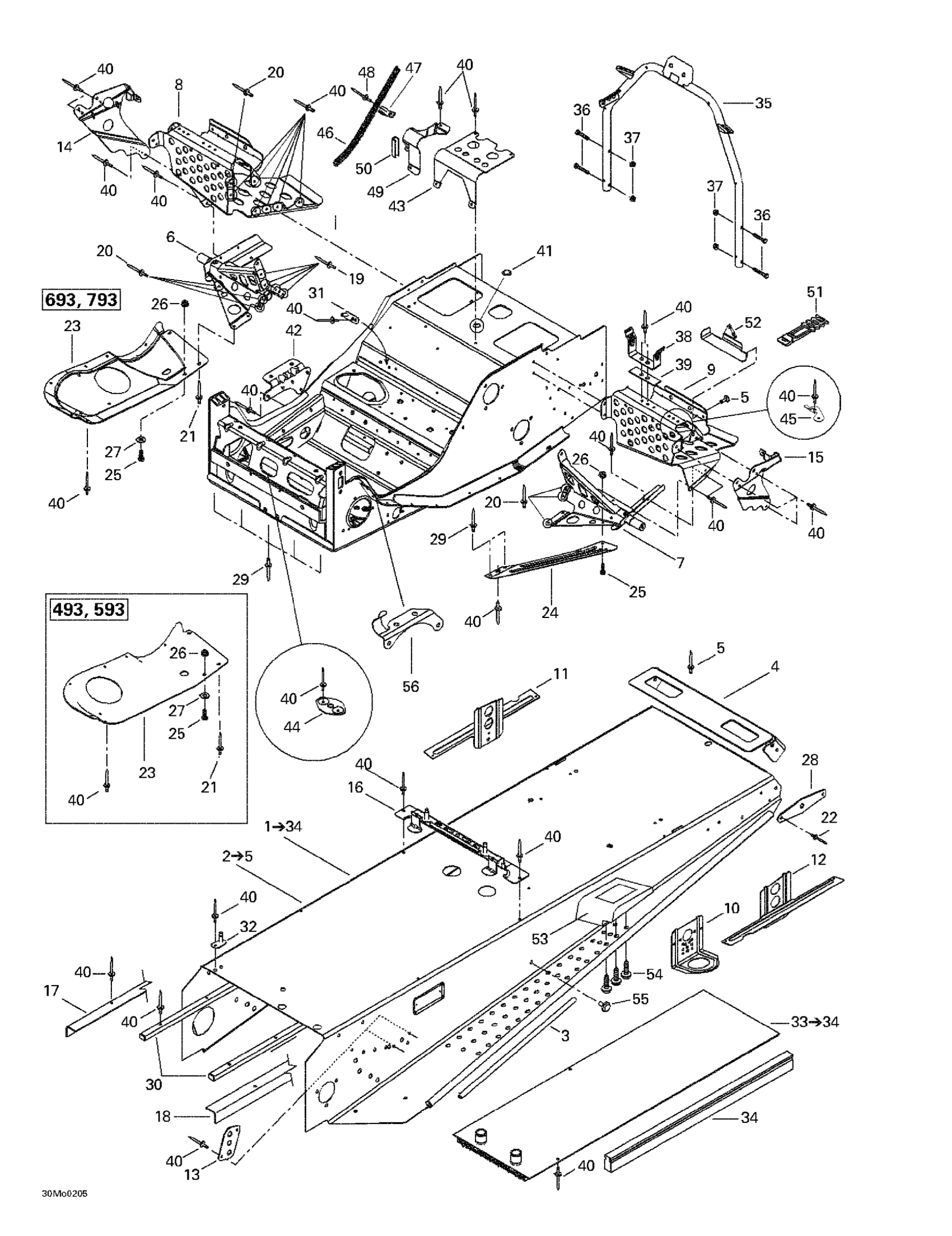

Ski-Doo Grand Touring 500/600/700/800, 2002 09- Frame And Accessories Diagram

#

Description
Price

1

Frame | Includes 1 - 34. Grand Touring 700. Grand Touring 800.

518323017

Unavailable

Frame | Grand Touring 500. Grand Touring 600.

518323018

Unavailable

2

Frame forming (full moon) | Inclus 2 - 5.

518323026

Unavailable

2

Frame Tunnel Rear Member

518323116

Unavailable

3

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

4

Rear Cap

518322734

Unavailable

5

Pop Rivet 3/16"

390402200

$0.35

6

RH Footrest Support

518320506

Unavailable

7

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

8

RH Footrest

518322393

Unavailable

9

LH Footrest

518322394

Unavailable

10

Front Bracket

518321495

Unavailable

11

RHRear Bracket

518322134

Unavailable

12

LH Rear Bracket

518322138

Unavailable

13

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

14

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321305

Unavailable

15

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321307

Unavailable

16

FUEL TANK BRACKET - Call your local BRP dealership

518321510

Unavailable

17

RH Frame Reinforcement

518322395

Unavailable

18

LH Frame Reinforcement

518322396

Unavailable

19

Avex Rivet

390909200

$0.30

20

Avex Rivet

390909100

$0.30

21

Pop Rivet 3/16"

390402300

$0.75

22

Pop Rivet 3/16"

390402400

$0.35

23

RH BOTTOM PAN PLATE - Call your local BRP dealership

518322636

Unavailable

RH Bottom Pan Plate | 600

518319760

Unavailable

24

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

Unavailable

25

Hex. Screw M5 X 20

207152044

$0.90

26

Hex. Flange Elastic Nut M5

233251414

$1.04

27

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

28

Rear Reinforcement

518316767

Unavailable

29

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

30

Frame Protector

518321543

Unavailable

31

Double Bracket

518322391

Unavailable

32

Guide

518321604

Unavailable

33

Rear Radiator | Includes 15 - 16. Grand Touring 500.

518322905

Unavailable

34

Radiator Protector | Grand Touring 500.

518321656

Unavailable

35

Handle Support

518322755

Unavailable

36

Hex. Flange Screw M6 X 35

207663544

$0.90

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

38

Belt Guard Bracket

518202100

$17.49

39

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

40

Pop Rivet 3/16"

390402200

$0.35

41

CAP - Call your local BRP dealership

414859400

Unavailable

42

Muffler Support

518322635

Unavailable

43

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

44

Plate Bracket

518201307

Unavailable

45

TOOL KIT BRACKET - Call your local BRP dealership

518322031

Unavailable

46

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

47

Open Clamp

518321570

$7.69

48

Pop Rivet 3/16"

390406500

$0.88

49

Hose Support

518319762

Unavailable

50

Was 271000110 Protection Trim

219704353

$15.99

51

LATCH - Call your local BRP dealership

570069700

Unavailable

52

Tool Kit Support

518321999

Unavailable

53

RH Footrest | Sport GT / SE GT

572088700

Unavailable

RH Footrest, Se-Air | Grand Touring 600. Grand Touring 700.

520000261

Unavailable

LH Footrest | Sport GT / SE GT

572088800

Unavailable

54

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

55

Panel Fastener

518321954

$7.69

56

Cable Support

515175254

Unavailable
