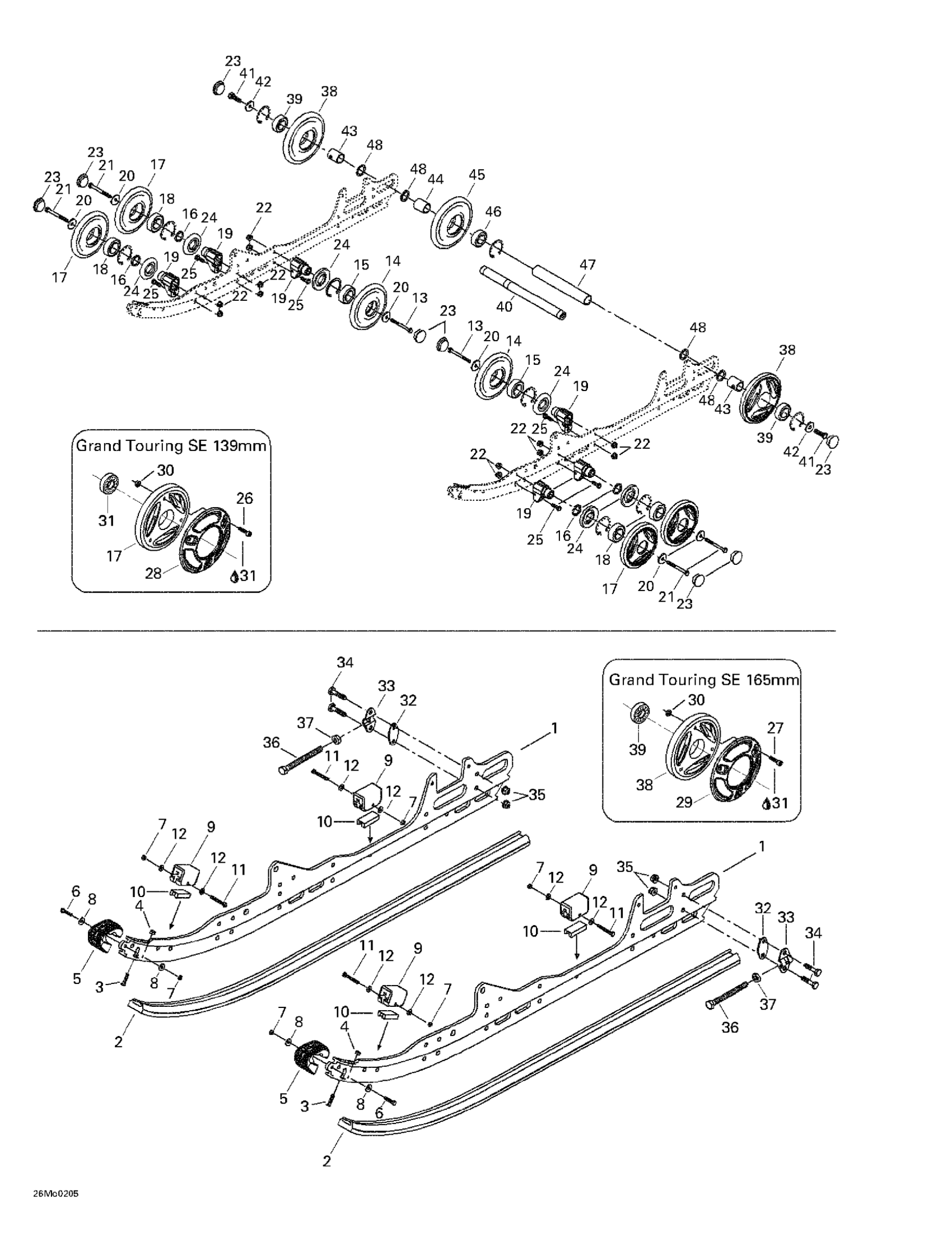

Ski-Doo Grand Touring 500/600/700/800, 2002 Rear Suspension Diagram

#

Description
Price

1

Runner

503189415

Unavailable

2

Slide Shoe

605355362

$27.66

3

Phillips Screw M6 X 25

208562560

$1.92

4

Elastic Stop Nut M6

232561414

$1.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

$0.72

8

Washer | DS 650 X

391301600

$0.48

9

Rubber Stopper

570063000

Unavailable

10

Reinforcement Stopper

572084800

$5.25

11

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

12

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

13

Hex. Screw M8 X 80

207088044

$1.58

14

Wheel 139 mm Ass'y

503190798

$32.28

15

Ball Bearing

293350115

$11.15

16

WASHER - Call your local BRP dealership

503173700

Unavailable

17

Wheel 139 (Full Moon) | Includes 30 - 31.

503189375

Unavailable

Cap Wheel 139 mm | (Full Moon) B-211 (SE) Grand Touring 600. Grand Touring 800.

503189507

Unavailable

18

Ball Bearing

293350115

$11.15

19

SUPPORT - Call your local BRP dealership

503190389

Unavailable

20

Washer

503183100

$3.08

21

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

$1.14

23

Wheel Cap

570063600

$3.28

24

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

25

Hex. Screw M8 X 25

207182544

$0.74

26

SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership | Grand Touring 600. Grand Touring 800.

208652060

Unavailable

27

Phillips Screw M5 X 25

208652560

Unavailable

28

Chrome Cap

503189509

Unavailable

29

Chrome Cap

503189510

Unavailable

30

Elastic Stop Nut M5

232551414

$0.72

31

Loctite 243, 10 ml

293800060

$20.77

32

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

33

Tensioner

503155300

Unavailable

34

Hex. Screw M6 X 30

207063044

$0.98

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

36

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

37

Elastic Locking Nut M10 X 1.5

233601416

$1.68

38

Wheel 165 mm

503190856

$49.97

Cap Wheel 165 mm | (Full Moon) B-211 (SE) Grand Touring 600. Grand Touring 800.

503189951

Unavailable

39

Ball Bearing

293350115

$11.15

40

Rear Axle

503167900

$129.20

41

Hex. Screw With Nylon

250000019

$1.42

42

Washer

503183300

$5.68

43

Outer Spacer

503189809

$15.35

44

Inner Spacer

503182900

$10.18

45

Wheel 165" | Includes 670 to 670b

503194127

$49.97

46

Ball Bearing

293350115

$11.15

47

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

48

Washer

503180400

$3.37
