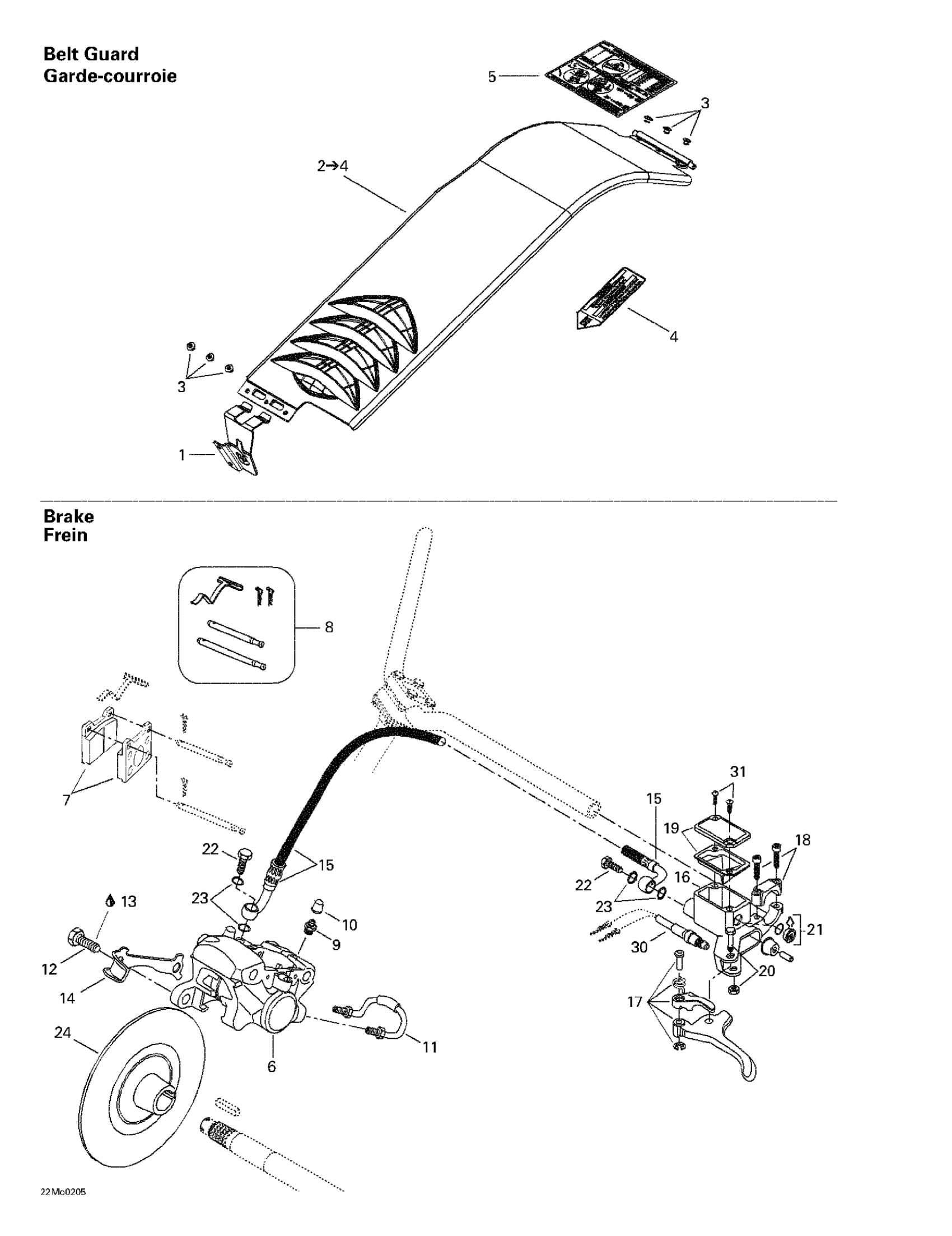

Ski-Doo Grand Touring 500/600/700/800, 2002 06- Hydraulic Brake And Belt Guard Diagram

#

Description
Price

1

Bracket

417300001

Unavailable

2

Belt Guard Ass’Y | Includes Items 2 to 4

417300173

Unavailable

3

Pop Rivet 3/16"

390402200

$0.35

4

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

5

Suspension Adjustment Decal | Grand Touring 500. Grand Touring 600. Grand Touring 700.

516000954

Unavailable

Suspension Adjustment Decal (SE) | Grand Touring 600. Grand Touring 800.

516000953

Unavailable

6

Caliper | Includes 6 - 11. 500 F.

415034500

Unavailable

Caliper | Includes Items 1 to 6

507032321

Unavailable

7

Brake Pad Kit

415084600

$79.49

Brake Pad Kit

415129172

$52.99

8

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

9

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

10

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

11

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

12

Hex. Screw M10 X 35

207103544

$1.58

13

Loctite 243, 10 ml

293800060

$21.49

14

HOSE - Call your local BRP dealership

507032237

Unavailable

15

HOSE - Call your local BRP dealership

507032237

Unavailable

16

Master Cylinder | Includes 1 to 8

507032293

Unavailable

17

BRAKE SHORT LEVER ASSY - Call your local BRP dealership

507032268

Unavailable

18

Clamp And Screw Kit

507032477

$23.99

19

Cap

415029900

$41.49

20

Pin Ass'y

415030000

$19.99

21

WINDOW - Call your local BRP dealership

414990600

Unavailable

22

Banjo Bolt

414920500

$8.68

23

Washer

414920600

$1.90

24

Brake Disk

507032203

Unavailable

24

BRAKE DISK - Call your local BRP dealership

507031300

Unavailable

25

Microswitch

507032366

$98.99

26

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable
