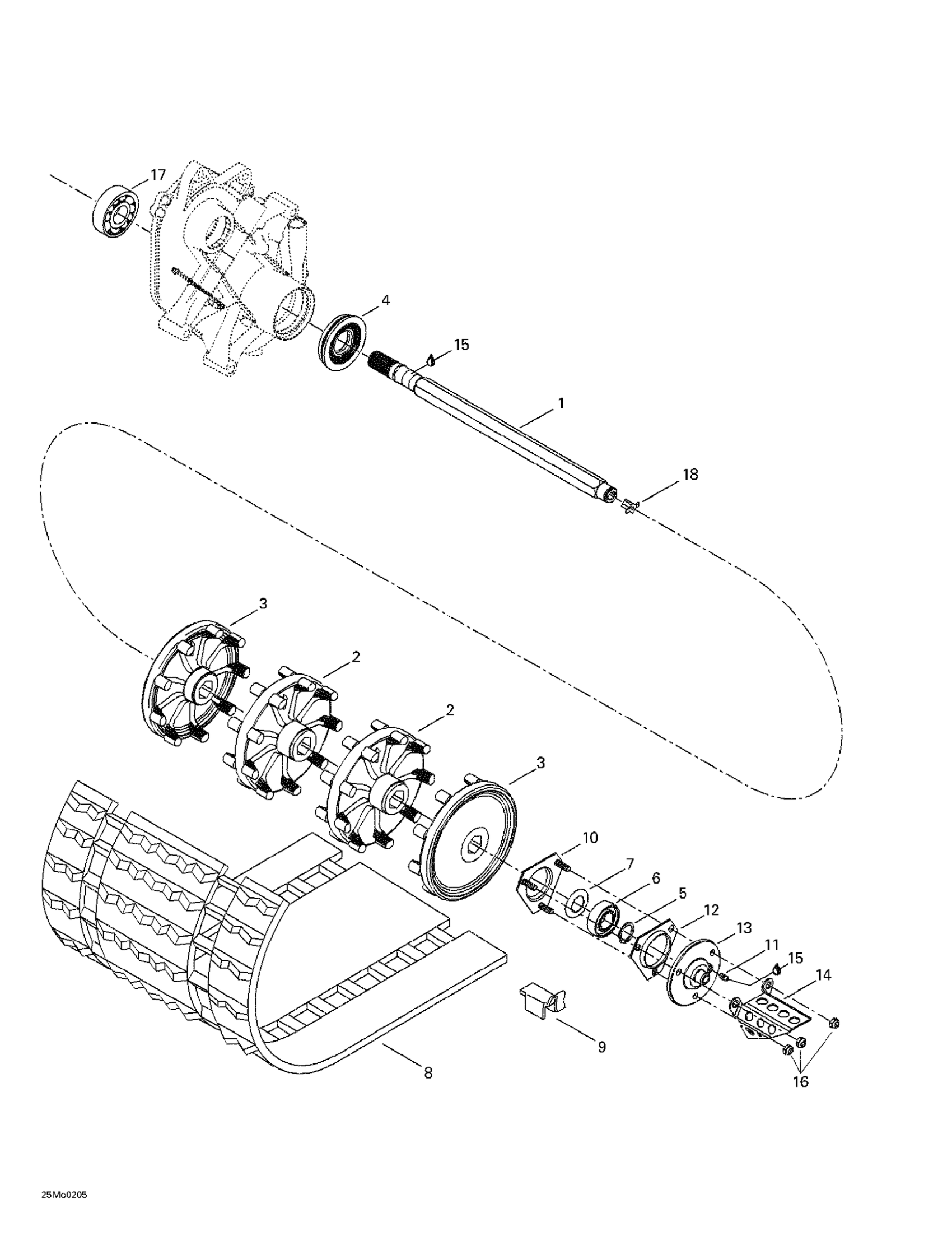

Ski-Doo Grand Touring 500/600/700/800, 2002 05- Drive Axle And Track Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

Unavailable

2

SPROCKET, 9 TEETH - Call your local BRP dealership

504151781

Unavailable

3

HALF SPROCKET, 9 TEETH - Call your local BRP dealership

504151782

Unavailable

4

Oil Seal Ass'y

504151918

$20.49

5

CIRCLIP - Call your local BRP dealership

371910200

$2.09

6

Ball Bearing

293350060

$38.49

7

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

8

Track 15" X 136" X 0.88" Ass'y | Includes 7 to 9, North America This part replaces 504152489.

504152455

$799.99

Track Ass’Y (15”X136"X 1.250") | Includes 8 to 9 / Legend Sport GT (Europe)

504152028

Unavailable

Track 15" X 136" X 0.88" Ass'y | Includes 7 to 9, North America This part replaces 504152489.

504152455

$799.99

9

Track Guide | Track Width 16''

415129528

$3.29

10

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

11

Grease Fitting

408200700

$3.49

12

FLANGE - Call your local BRP dealership

501025000

Unavailable

13

Flange, Speedo Drive Insert

504151836

Unavailable

14

CABLE PROTECTOR - Call your local BRP dealership

517290100

Unavailable

15

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

16

Hex. Elastic Stop Nut M8

232581414

$0.56

17

Ball Bearing

504152005

$46.49

18

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable
