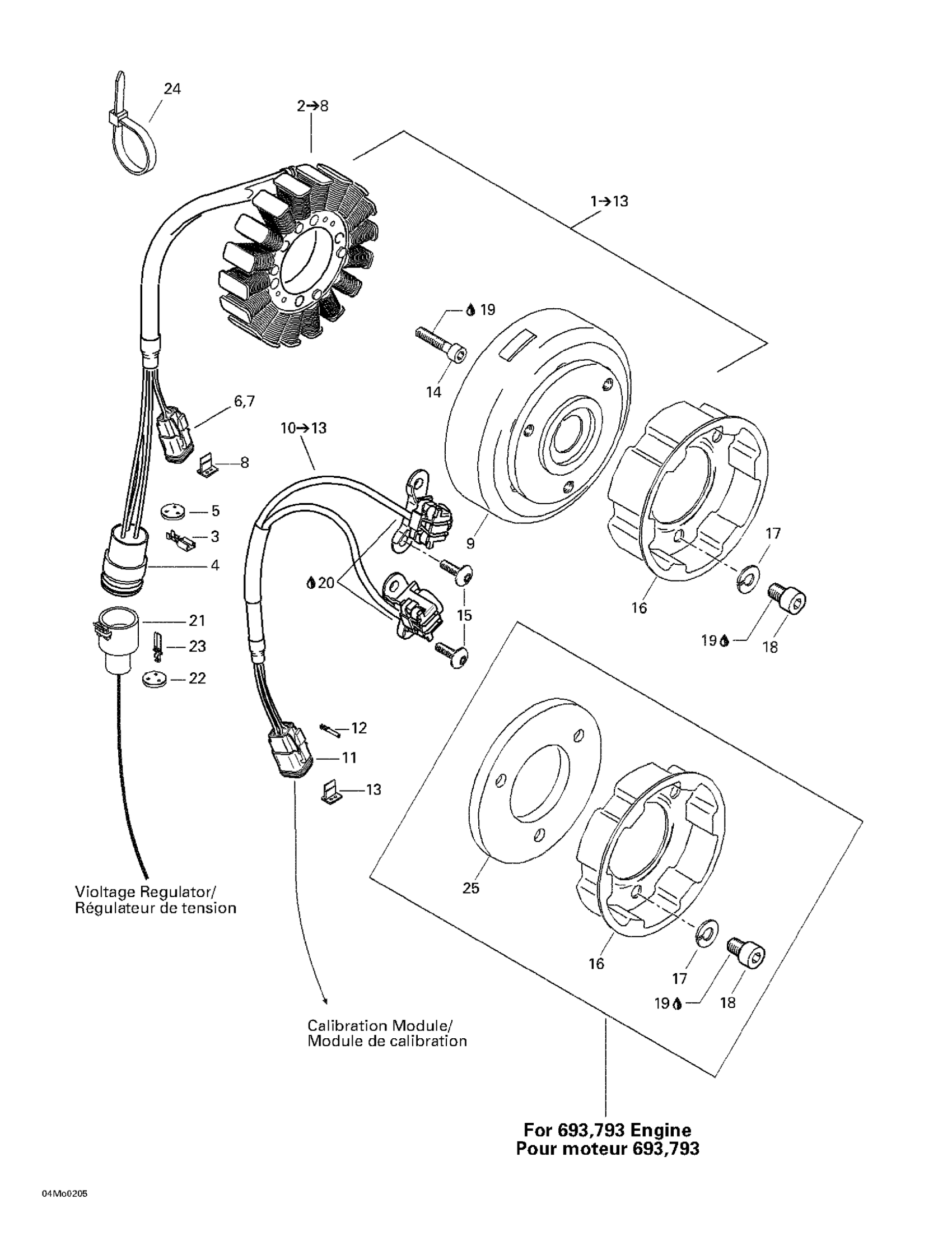

Ski-Doo Grand Touring 500/600/700/800, 2002 03- Magneto (12V, 290W) Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Stator Plate Ass'y | Includes 2 - 8.

410922941

Unavailable

3

FEMALE TERMINAL - Call your local BRP dealership

409011900

Unavailable

4

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

Unavailable

5

SEAL - Call your local BRP dealership

409208500

Unavailable

6

Female Terminal

278000632

$2.09

7

Female Terminal Housing, 2 Circuits

515175670

$8.39

8

Female Lock, 2 Circuits

515175675

$4.55

9

Flywheel

410922942

Unavailable

10

PICK-UP ASS'Y - Call your local BRP dealership | Includes 10 - 13.

410922940

Unavailable

11

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

12

Female Terminal

278000632

$2.09

13

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

14

Socket Head Screw M6 X 30

205063044

$1.69

15

Torx Screw M6 X 16

420640324

$2.11

16

Starting Pulley

420852590

$29.49

Starting Pulley | Manual Start This part replaces 420852532.

420852533

$24.99

17

Washer-Lock Din.128

420945832

$1.15

18

Socket Head Screw M8 X 12

420841520

$1.69

Hex. Screw M8 X 20

207182044

$0.74

19

Loctite 243, 10 ml

293800060

$21.49

20

Not Available As Spare Part - Friction Washer

Unavailable

21

MALE HOUSING - Call your local BRP dealership

409207900

Unavailable

22

SEAL - Call your local BRP dealership

409208500

Unavailable

23

MALE TERMINAL - Call your local BRP dealership

409011100

Unavailable

24

Tie Wrap 94 mm | 4X4

293750001

$1.03

25

Flywheel

420866756

Unavailable
