Description

Price

1

Spark Plug NGK BR9ECS-5

512059552

$10.59

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

2

Spark Plug Decal

516000986

Unavailable

3

Ignition Coil | INCLUDES ITEMS 22 TO 25

512059512

Unavailable

4

Female Connector, 2 Circuits

409207300

$9.85

5

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

6

Female Terminal

278000632

$2.09

7

Plastic Clip, Spark Plug Wire

410914600

$5.61

8

Cable Ass’y, 375 mm

512059696

$80.99

9

CABLE ASSY, 455 MM - Call your local BRP dealership

512059486

Unavailable

10

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

11

14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.

296000365

Unavailable

12

Calibration Module (GS,SE) | Grand Touring 700.

512059459

Unavailable

Calibration Module (GS,SE) | Grand Touring 600.

512059469

Unavailable

Calibration Module (SE) | Grand Touring 800.

512059471

Unavailable

13

Calibration Module (Sport) | Grand Touring 500.

512059467

Unavailable

Calibration Module (Sport) | Grand Touring 600.

512059468

Unavailable

Calibration Module (Sport) | Grand Touring 700.

512059470

Unavailable

14

Electrical Box Decal

516000245

Unavailable

15

FEMALE TERMINAL HOUSING, 12 CIRCUITS - Call your local BRP dealership

515175704

Unavailable

16

Female Terminal

278000632

$2.09

17

FEMALE LOCK, 12 CIRCUITS - Call your local BRP dealership

515175679

Unavailable

18

Sealing Cap

293000052

$3.19

19

Male Housing

515175666

$15.49

20

Male Terminal

278000631

$4.39

21

Male Terminal

515175823

$4.55

22

Male Lock, 3 Circuits

409207600

$3.19

23

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

24

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

25

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

26

Female Lock

409207200

$4.39

27

Resistance Harness

515175824

Unavailable

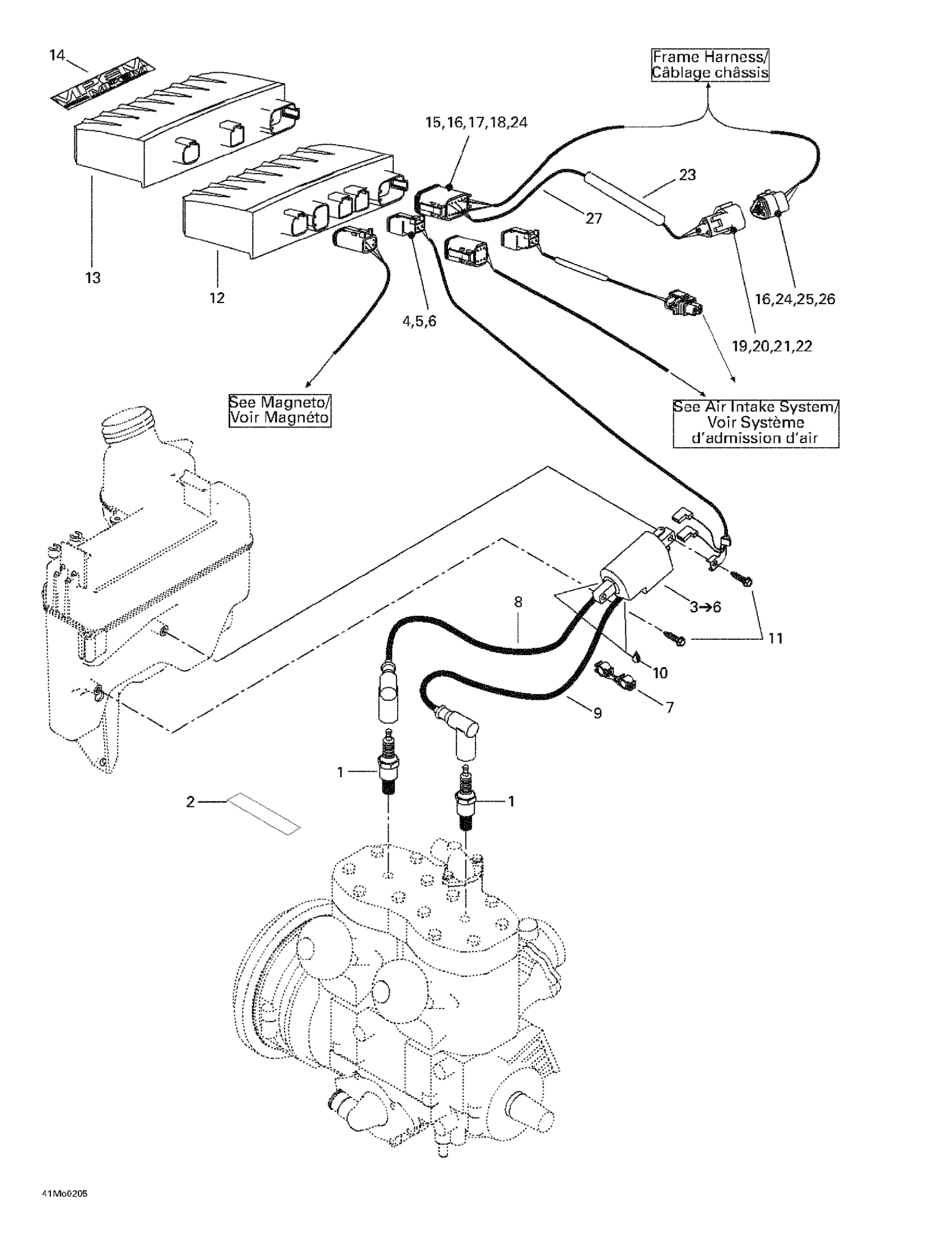

Ski-Doo Grand Touring 500/600/700/800, 2002 03- Ignition Diagram

Spark Plug NGK BR9ECS-5

Spark Plug NGK BR9ES This part replaces 414961100.

Spark Plug Decal

Ignition Coil | INCLUDES ITEMS 22 TO 25

Female Connector, 2 Circuits

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

Female Terminal

Plastic Clip, Spark Plug Wire

Cable Ass’y, 375 mm

CABLE ASSY, 455 MM - Call your local BRP dealership

Was 293550004 Dielectric Grease, 150 g

14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.

Calibration Module (GS,SE) | Grand Touring 700.

Calibration Module (GS,SE) | Grand Touring 600.

Calibration Module (SE) | Grand Touring 800.

Calibration Module (Sport) | Grand Touring 500.

Calibration Module (Sport) | Grand Touring 600.

Calibration Module (Sport) | Grand Touring 700.

Electrical Box Decal

FEMALE TERMINAL HOUSING, 12 CIRCUITS - Call your local BRP dealership

Female Terminal

FEMALE LOCK, 12 CIRCUITS - Call your local BRP dealership

Sealing Cap

Male Housing

Male Terminal

Male Terminal

Male Lock, 3 Circuits

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

FEMALE TERMINAL - Call your local BRP dealership

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

Female Lock

Resistance Harness
