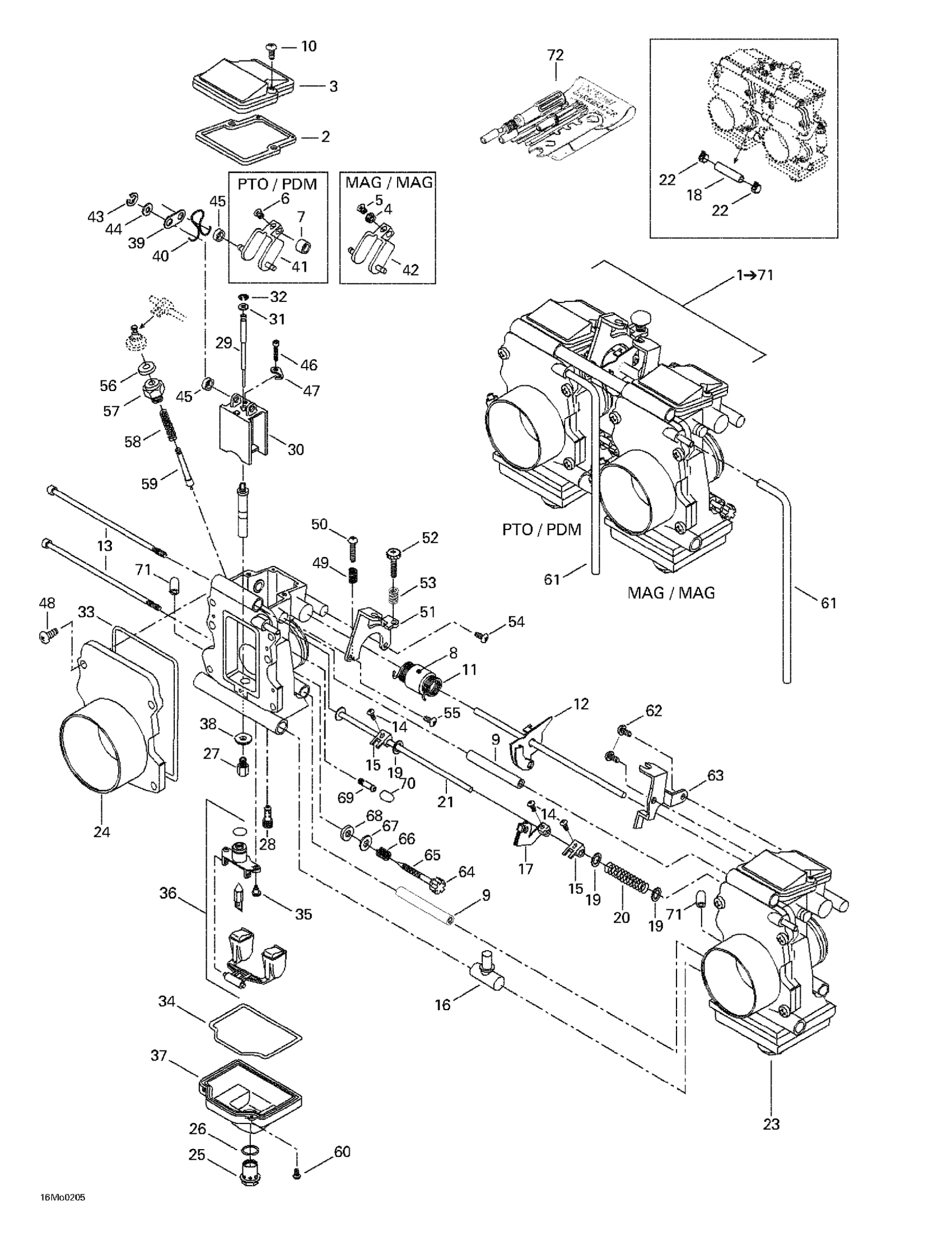

Ski-Doo Grand Touring 500/600/700/800, 2002 Carburetors Diagram

#

Description
Price

1

CARBURETOR KIT TM 40 B-151 - Call your local BRP dealership | Grand Touring 500.

403138701

Unavailable

Carburetor Kit TM 40 B-154 | Grand Touring 600.

403138700

$1,009.99

DEEP BLACK, CARBURETOR KIT TM 40 - Call your local BRP dealership | Grand Touring 700.

403138699

Unavailable

Carburetor Kit TM 40 B-166 | Grand Touring 800.

403138698

Unavailable

2

Gasket

404161940

$25.34

3

COVER - Call your local BRP dealership

404161939

$37.28

4

Ring

404161937

Unavailable

5

Screw

404161936

Unavailable

6

Screw

404161928

$11.85

7

Ring

404161926

$11.85

8

Ring

404161925

Unavailable

9

RING - Call your local BRP dealership

404161924

Unavailable

10

Screw

404161923

$7.34

11

Spring

404161915

Unavailable

12

Throttle Shaft

404161914

Unavailable

13

Screw

404161911

Unavailable

14

Screw

404161910

$11.85

15

Lever

404161909

Unavailable

16

Nipple

404161905

$48.48

17

Starter Lever

404161901

$35.79

18

Hose | Grand Touring 500.

404161956

$17.88

19

Packing

404161894

$11.85

20

Spring

404103500

$8.00

21

Shaft | Grand Touring 500.

404161892

Unavailable

SHAFT - Call your local BRP dealership

404161981

Unavailable

22

Clip | Grand Touring 500.

404161957

$15.64

23

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

24

Funnel (PTO)

404161959

Unavailable

Funnel (MAG)

404161958

Unavailable

25

DRAIN SCREW - Call your local BRP dealership

404161955

Unavailable

26

O-Ring

404161945

$7.90

27

Main Jet 500 | 600

404108200

$5.19

Main Jet 510N | 700

404161983

Unavailable

Main Jet 520N | 800 ADRENALINE & RENEGADE MX Z 800.

404161984

$17.88

28

Pilot Jet 17.5

404161944

$5.19

Pilot Jet 20 | 600

404108600

$5.19

29

Needle J8-9Ghy01-58 | 600

404161980

Unavailable

NEEDLE J8-9ZLY03-58 - Call your local BRP dealership | 700

404161953

Unavailable

Needle J8-9zly02-58 | Grand Touring 800.

404161962

Unavailable

30

Piston Valve 2.0

404161950

Unavailable

31

Packing

404137600

$6.49

32

E-Ring

404152200

$4.24

33

O-Ring

404161935

$25.34

34

O-Ring

404161961

$16.39

35

Screw

404161933

$10.99

36

Float

404161932

$124.60

37

BODY FLOAT ASS'Y - Call your local BRP dealership

404161960

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Plate

404161930

Unavailable

40

Clip

404161929

Unavailable

41

Lever (PTO)

404161927

Unavailable

42

Lever (MAG)

404161938

Unavailable

43

E-Ring

404138300

$11.49

44

Washer

404161922

Unavailable

45

Ring

404161921

Unavailable

46

Screw

404161920

$11.85

47

Plate

404161919

$11.85

48

Screw

404138800

$6.19

49

Spring

404161918

Unavailable

50

Screw

404161917

Unavailable

51

Bracket TM 40-98 (PTO)

404161916

Unavailable

52

Adjustment Screw

404137500

$17.88

53

Spring

404161913

$11.85

54

Screw

404161912

$6.49

55

Screw

404136100

$6.49

56

Cap

404140000

$11.49

57

Guide Holder

404136900

$16.39

58

Spring

404161908

$12.99

59

Plunger Ass'y

404161907

$32.81

60

Screw

404161906

$6.49

61

HOSE - Call your local BRP dealership

404161904

Unavailable

62

Screw

404161903

$3.15

63

Bracket, Mag

404161902

Unavailable

64

Cap

404161899

$11.51

65

Adjuster

404161898

$24.60

66

Spring

404161897

$6.07

67

Washer

404161896

$6.19

68

Packing

404161895

$7.90

69

Nipple

404153400

$11.16

70

CAP - Call your local BRP dealership

404154900

Unavailable

71

Cap

270500095

$7.30

72

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
