Description

Price

1

Crankcase Ass'y | Includes 1 - 11. Grand Touring 500. Grand Touring 600.

420888763

Unavailable

Crankcase Ass'y | Grand Touring 700.

420889082

Unavailable

Crankcase Ass'y | Grand Touring 800.

420889084

Unavailable

2

Hex. Collar Screw M8 X 75

420640836

$13.16

3

Hex. Collar Screw M8 x 45

420640432

$8.57

4

Allen Screw M6 x 45 This part replaces 420640311.

420640312

$4.44

5

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.48

6

Socket Head Screw M6 X 30

205063044

$1.69

7

Stud M10 X 23

420941644

Unavailable

8

Check Valve

420956511

$35.99

9

Center Pin 8 X 12

420632010

$4.01

10

Cable Grommet

420860965

$14.28

11

Cap

420960770

$4.12

12

Ball Bearing

420232100

$20.99

13

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$369.99

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Oil Seal

420230195

$15.36

16

Ball Bearing

420232100

$20.99

17

Rotary Seal

420650371

$43.49

18

O-Ring

420950890

$4.44

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Allen Screw M5 x 16

420840514

$1.90

21

Thrust Washer

420227945

$4.01

22

Water Impeller

420222505

$19.99

23

Gasket This part replaces 420931810.

420931811

$13.76

24

Water Pump Housing

420922630

$61.49

25

Hex. Screw M6 X 25

420240034

$1.90

26

O-Ring

293300041

$8.57

27

Oil Pump Ass'y

420888780

$409.99

OIL PUMP ASSY - Call your local BRP dealership | 800 H.O. no DPM

420888770

Unavailable

28

Taptite Screw M5 X 16

420941928

Unavailable

29

Oil Hose 1500Mm Long

219704404

$17.26

30

Short Block Ass'y | Grand Touring 500.

420049303

Unavailable

SHORT BLOCK ASS'Y - Call your local BRP dealership | Grand Touring 600.

420059305

Unavailable

Short Block Ass'y | Grand Touring 700.

420069306

Unavailable

SHORT BLOCK ASS'Y - Call your local BRP dealership | Grand Touring 800.

420079303

Unavailable

31

Loctite 243, 10 ml

293800060

$21.49

32

Dow Corning 111, 150 g

413707000

$59.99

33

Petamo Grease, GHY133N, 400 g

420899271

$67.99

34

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

35

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

36

Sealant Loctite 648

219703000

$45.99

37

Flat Washer 10 mm

234001410

$1.26

38

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

39

Hex. Nut M10 X 1.5

232006414

$1.37

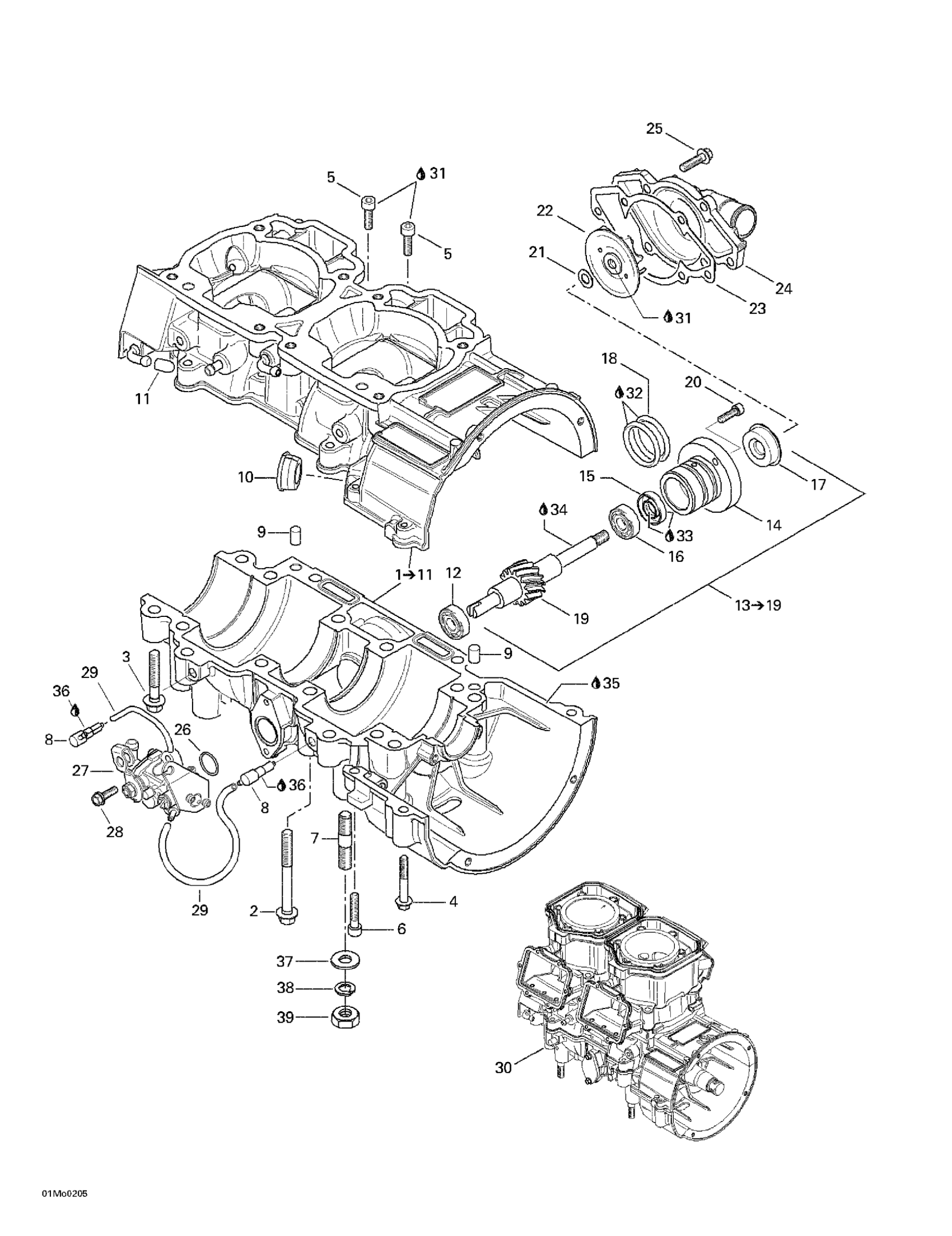

Ski-Doo Grand Touring 500/600/700/800, 2002 01- Crankcase, Water Pump And Oil Pump Diagram
