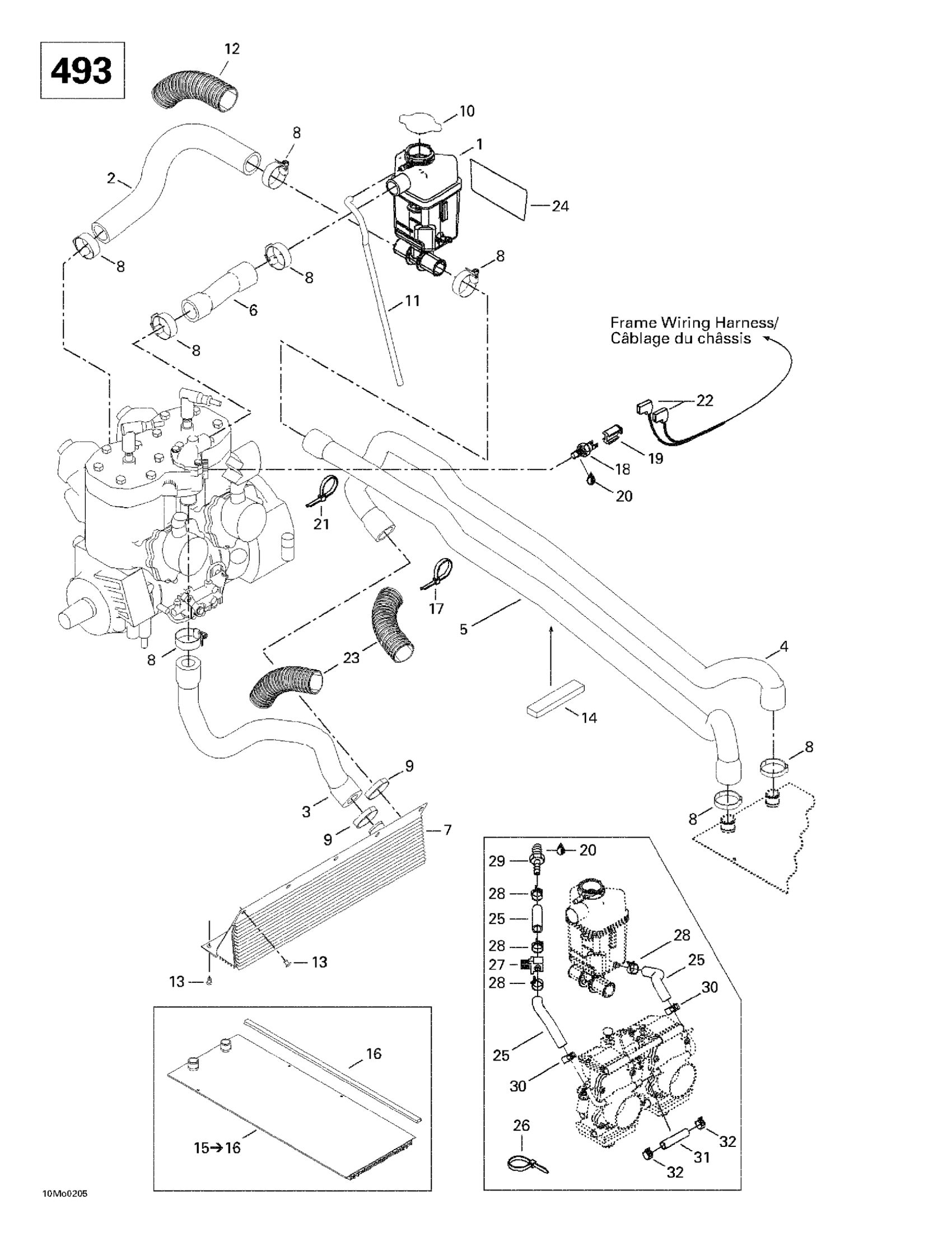

Ski-Doo Grand Touring 500/600/700/800, 2002 01- Cooling System (493) Diagram

#

Description
Price

1

Tank Coolant | Grand Touring 500. This part replaces 509000133.

509000134

$91.99

2

ENGINE INLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000135

Unavailable

3

ENGINE OUTLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000046

Unavailable

4

RADIATOR INLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000003

Unavailable

5

Radiator Outlet Hose | Grand Touring 500.

509000004

Unavailable

6

Deviation Hose | Grand Touring 500.

509000112

Unavailable

7

Front Radiator | Grand Touring 500.

517297100

Unavailable

8

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

9

Oetiker Gear Clamp 36.1MM

509000045

$8.29

10

Pressure Cap

509000187

$29.49

11

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

12

Was 415084700 Protective Shield | Grand Touring 500.

219704413

Unavailable

13

Pop Rivet 3/16"

390402200

$0.35

14

Neoprene Seal (1PAC=3M)

219704364

$27.49

15

Rear Radiator | Includes 15 - 16. Grand Touring 500.

518322905

Unavailable

16

Radiator Protector | Grand Touring 500.

518321656

Unavailable

17

Tie Wrap 368 mm

293750008

$1.04

18

Temperature Sensor | Grand Touring 500.

512047000

Unavailable

19

Connector Plug | Grand Touring 500.

515175297

Unavailable

20

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

21

Tie Wrap 142 mm

293750002

$1.25

22

Female Terminal

409010300

$4.39

23

Tubing 25 MM 1000MM Long

219704402

$15.99

24

Reflective Sheet | Grand Touring 500.

514053399

Unavailable

25

Hose 8 mm

509000093

Unavailable

26

Clip | Grand Touring 500.

404161957

$17.08

27

Valve 5/16” | Grand Touring 500.

512059324

$44.99

28

Spring Clamp

414655700

$0.72

29

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

30

Tridon Gear Clamp

293650170

$1.99

31

Hose | Grand Touring 500.

404161956

$19.49
