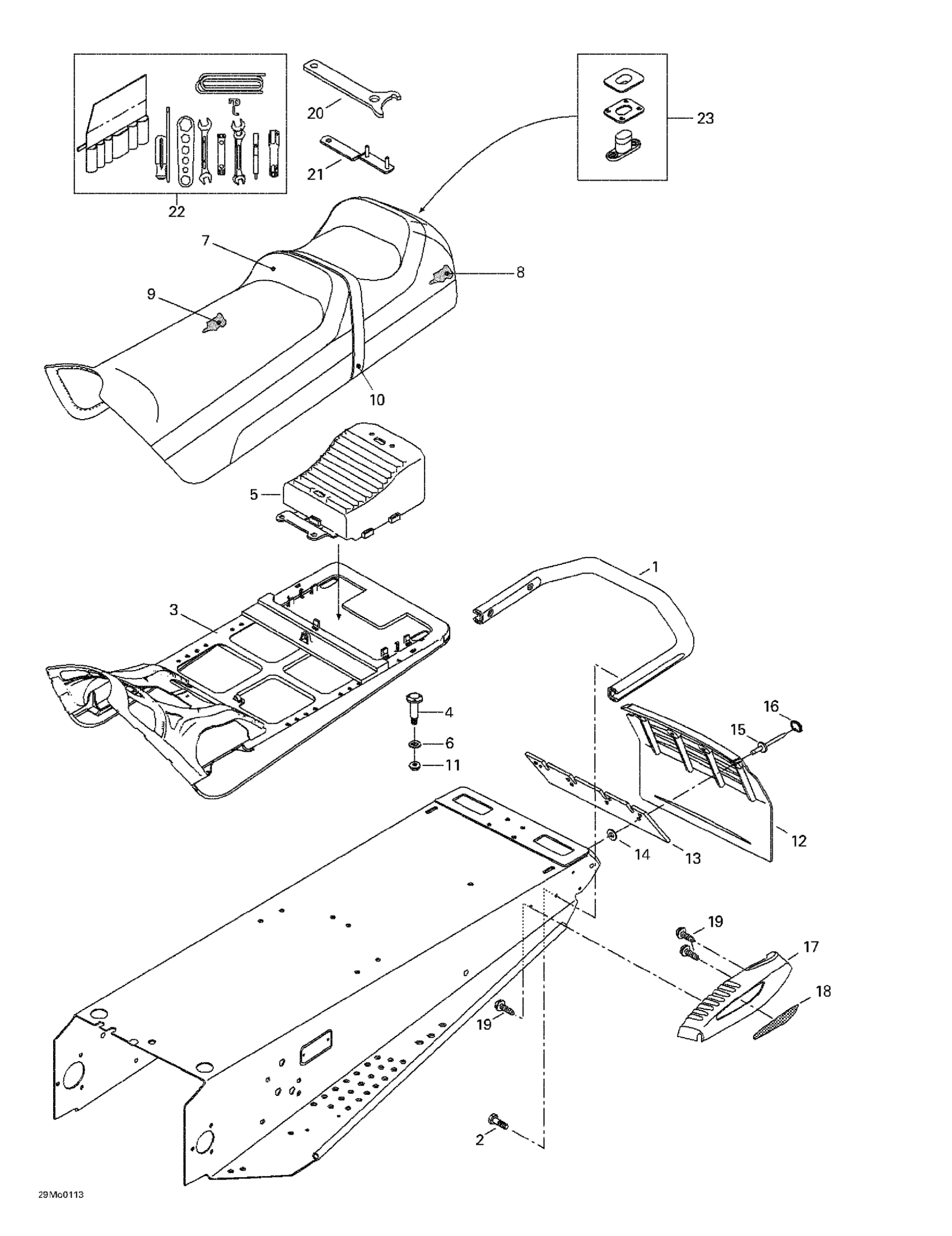

Ski-Doo Grand Touring 500/600/700, 2001 09- Seat And Accessories Diagram

#

Description
Price

1

Rear Bumper | Includes 32 to 33

517272510

Unavailable

2

Hex. Flange Screw M8 X 20

207682044

$1.15

3

Sub-Seat

510003739

Unavailable

4

«T» Bolt

732601221

Unavailable

5

Rear Trunk

510003751

Unavailable

6

Push Nut

732610072

$2.19

7

Seat Cover

510003835

Unavailable

8

Seat Foam, Side

510003741

Unavailable

9

Seat Foam, Top

510003752

Unavailable

10

Seat Belt

510003753

Unavailable

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

SNOW GUARD - Call your local BRP dealership

520000229

Unavailable

13

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

14

Flat Washer

517225900

$0.18

15

Pop Rivet 3/16"

293150100

$1.09

16

Cap

415073300

Unavailable

17

RH Moulding

572103900

Unavailable

LH Moulding

572104000

Unavailable

18

RH Reflector, Red

516000237

Unavailable

RH Reflector, Yellow, Europe | SE GT Europe

516000241

Unavailable

LH Reflector, Red

516000238

Unavailable

LH Reflector, Yellow, Europe | SE GT Europe

516000242

Unavailable

19

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

20

Adjustment Wrench

529000035

$2.09

21

Adjustment Wrench | LT

520000126

$1.49

22

Tool Kit | Includes 12 to 13

529035596

$27.99

23

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable
