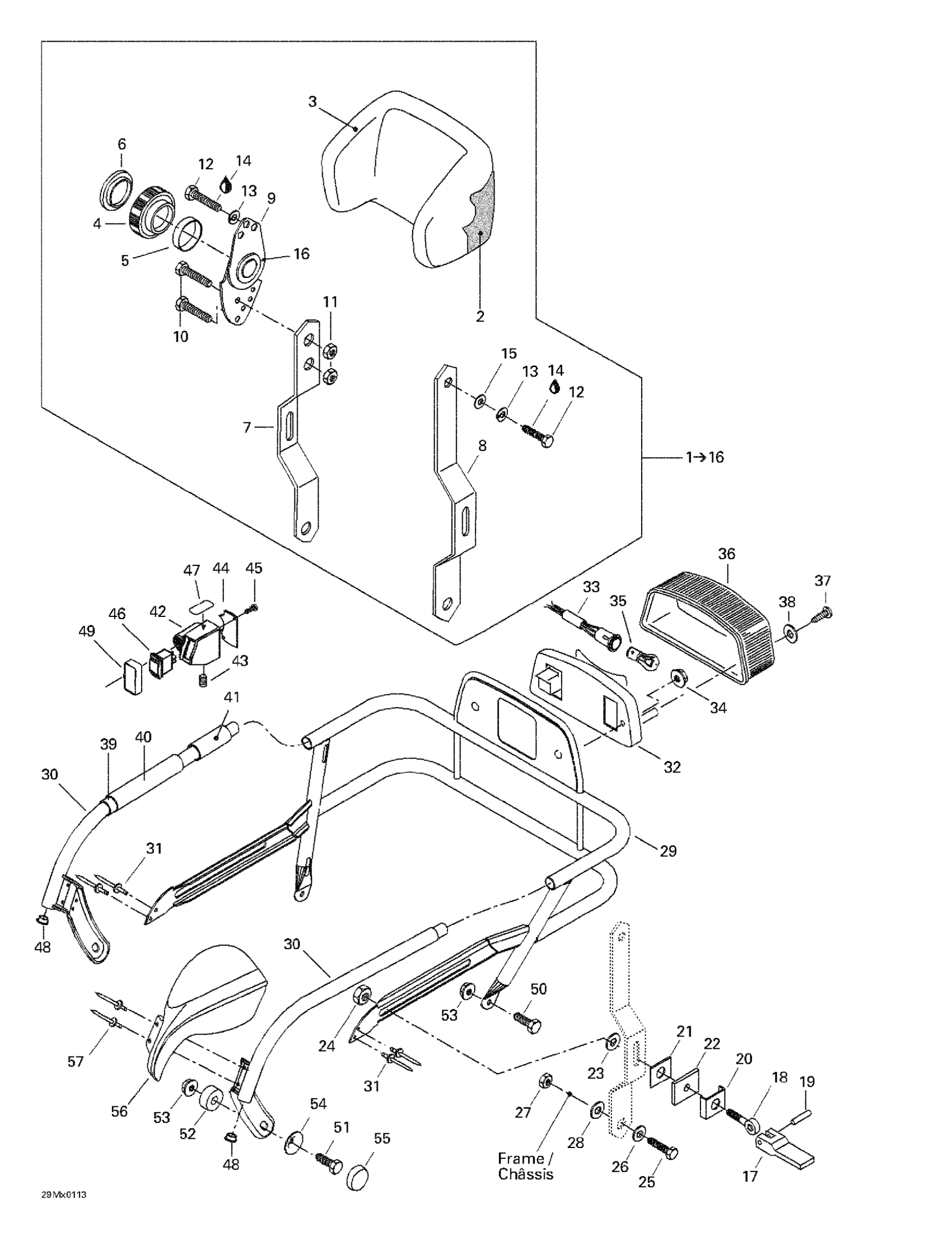

Ski-Doo Grand Touring 500/600/700, 2001 09- Luggage Rack, Hitch Diagram

#

Description
Price

1

Backrest Ass'y | Includes 1 - 16.

510003783

Unavailable

2

Backrest Foam

414821200

Unavailable

3

Backrest Cover

510003782

Unavailable

4

TILLER HANDLE - Call your local BRP dealership

414820900

Unavailable

5

STRIP - Call your local BRP dealership

415015500

Unavailable

6

Cap

414821000

Unavailable

7

RH Arm

517296400

Unavailable

8

LH Arm

517296500

Unavailable

9

Recliner

414813300

Unavailable

10

Hex. Screw M8 X 25

207182544

$0.90

11

Hex. Elastic Stop Nut M8

232581414

$0.56

12

Hex. Screw M8 X 20

207182044

$0.74

13

Lock Washer 8 mm

234181401

$0.92

14

Loctite 243, 10 ml

293800060

$21.49

15

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

16

Cap

517250500

Unavailable

17

Lock Lever

572038200

Unavailable

18

Eye Bolt

517257600

Unavailable

19

Pin

414821400

$7.55

20

Guide

517257300

Unavailable

21

SPACER - Call your local BRP dealership

517251300

Unavailable

22

Rubber Shim

570027400

Unavailable

23

Washer

414819500

Unavailable

24

Nut

517250000

Unavailable

25

Hex. Screw M8 X 25

207182584

Unavailable

26

Stainless Steel Flat Washer 8 mm

234081670

$0.67

27

Hex. Elastic Stop Nut M8

232581414

$0.56

28

Washer

414819600

Unavailable

29

Rack Ass'y

511000126

Unavailable

30

RH Arm

511000108

Unavailable

LH Arm

511000111

Unavailable

31

Pop Rivet 3/16 | Grand Touring 600. Grand Touring 800.

390403600

Unavailable

32

LAMP HOUSING - Call your local BRP dealership

515175397

Unavailable

33

Socket

515175539

Unavailable

34

Hex. Flange Elastic Nut M5

233251414

$1.04

35

Bulb

520000758

$9.10

36

Lens

414513700

$28.99

37

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

38

Washer - Call your local BRP dealership

414516400

Unavailable

39

Reflective Sheet

414988700

Unavailable

40

LH Grip, 370 mm

415050200

Unavailable

RH Grip, 250 mm

415050300

Unavailable

41

Grip, Short, 60 mm

415050400

Unavailable

42

Switch Housing

572089200

Unavailable

43

Pressure Screw M8 X 8 | 4X4

206580890

$1.69

44

Plate

572089300

Unavailable

45

Screw

732601255

Unavailable

46

Rocker Switch

511000001

Unavailable

47

HEAT GRIP DECAL - Call your local BRP dealership

418001800

Unavailable

48

CAP, BLACK - Call your local BRP dealership

572110800

Unavailable

49

Switch Protector

511000002

Unavailable

50

Hex. Screw M8 X 20

207182044

$0.74

51

Hex. Screw M8 X 40

207084044

$1.15

52

Spacer

511000114

Unavailable

53

Hex. Flange Elastic Nut M8

233281414

$1.47

54

Cup | Package Hunter

705007171

$7.89

55

CAP - Call your local BRP dealership

572045900

Unavailable

56

RH Protector

572089400

Unavailable

LH Protector

572089500

Unavailable

57

Pop Rivet 3/16"

390906800

$0.93
