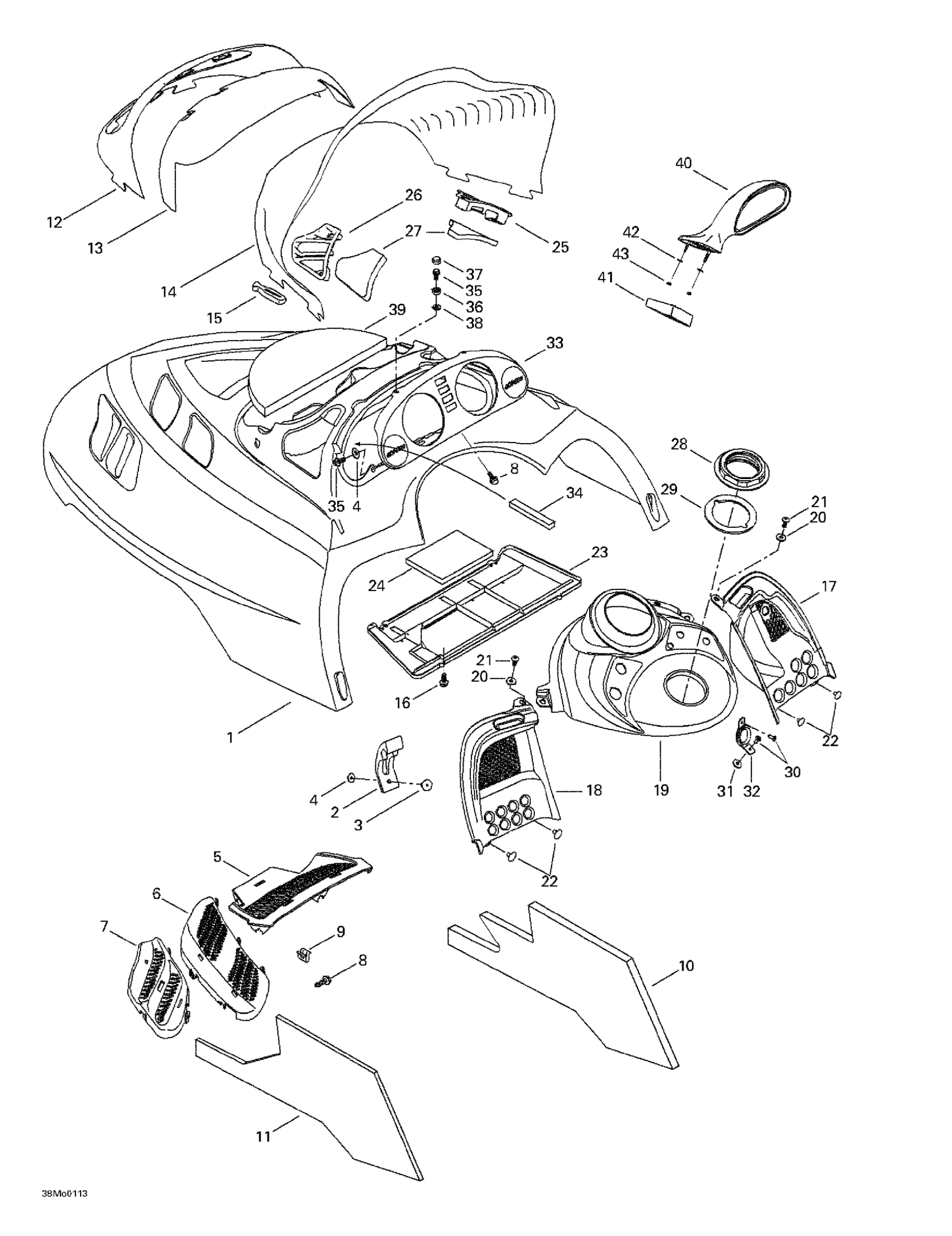

Ski-Doo Grand Touring 500/600/700, 2001 09- Cab, Console Diagram

#

Description
Price

1

Hood (Pearl Cloud (B-210))

517302507

Unavailable

Deep Black, Hood

517302505

Unavailable

2

Hood Latch

570027100

$13.49

3

Pop Rivet 3/16"

390906800

$0.93

4

Washer

517124300

$0.19

5

CENTER GRILL, BLACK - Call your local BRP dealership

517302026

Unavailable

6

RH Intermediate Grill, Black | Grand Touring 500.

517302028

Unavailable

LH Intermediate Grill, Black | Grand Touring 500.

517302031

Unavailable

7

RH Side Grille

517302034

Unavailable

LH Side Grille

517302036

Unavailable

8

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

9

Edge Clip

517302785

$0.88

10

RH Side Foam

517302490

Unavailable

11

LH Side Foam

517302491

Unavailable

12

HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership

517302158

$69.99

13

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

Unavailable

14

WINDSHIELD - Call your local BRP dealership

517302356

Unavailable

15

Windshield Latch

570023800

$4.49

16

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

17

RH Console

517302434

Unavailable

18

LH CONSOLE - Call your local BRP dealership

517302006

Unavailable

19

Center Console (Black) (Standard/GS)

517302464

Unavailable

20

Washer | DS 650 X

391301600

$0.48

21

Forming Screw M5 x 16

250000676

$1.01

22

Pop Rivet 3/16"

390406500

$0.88

23

Air Intake Plate

517302413

Unavailable

24

Secondary Foam

517302425

Unavailable

25

RH AIR INTAKE GRILL - Call your local BRP dealership

517302024

Unavailable

26

LH AIR INTAKE GRILL - Call your local BRP dealership

517302025

Unavailable

27

Air Intake Foam

517302151

Unavailable

28

CONSOLE NUT - Call your local BRP dealership

517302043

Unavailable

29

Gasket

293250029

$14.82

30

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

31

Rubber Stopper

517302286

Unavailable

32

Rope Guide

517302129

Unavailable

33

Indicator Support (STD) | Grand Touring 500. Grand Touring 600. Grand Touring 700.

572098604

Unavailable

Gauge Support

572098600

Unavailable

34

Foam

517302420

Unavailable

35

Screw K40 X 10

241140060

$1.48

36

RETAINER CAP - Call your local BRP dealership

414436800

Unavailable

37

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

38

Flat Washer 4 mm, Stainless

234042600

$1.15

39

CENTER FOAM - Call your local BRP dealership | FOR HOOD RIM

517302317

Unavailable

40

RH Mirror

517302471

Unavailable

LH Mirror

517302472

Unavailable

41

Retainer Plate

517302539

Unavailable

42

Washer

517124300

$0.19

43

Elastic Stop Nut M4

232541414

$0.58
