Description

Price

1

Front Arm

503189292

Unavailable

2

Washer

503189276

$3.28

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.96

7

SHAFT - Call your local BRP dealership

503190387

Unavailable

8

Bushing

503189324

$14.15

9

Washer

732900049

$0.58

10

Urethane Bushing

503189117

$8.19

11

Bushing | Includes 240d to 240d1

503189282

$4.34

12

Bushing

503189271

$13.99

13

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

14

Elastic Locking Nut M10 X 1.5

233601416

$1.69

15

AXLE - Call your local BRP dealership

503189562

Unavailable

16

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

17

Washer

503189564

$0.74

18

Spacer

503189265

$4.99

19

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

20

Hex. Screw M8 X 25

207182544

$0.90

21

Flat Washer

224081301

$0.88

22

Hex. Elastic Stop Nut M8

232581414

$0.56

23

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

24

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

25

Washer

503189276

$3.28

26

Washer

503189273

$3.28

27

SPACER - Call your local BRP dealership

503189274

Unavailable

28

Rocker

503189417

Unavailable

29

Rocker Axle

503189388

Unavailable

30

Cushion

503189410

Unavailable

31

Center Shock | Grand Touring 500. Grand Touring 600. Grand Touring 700.

503189554

Unavailable

32

Rear Shock

503189426

Unavailable

32

HPG Shock Kit (Europe) | Includes 7 - 9. Grand Touring 500.

860306200

Unavailable

33

HPG Decal (Europe)

516000182

Unavailable

34

Bushing

414936000

$13.99

35

Hex. Flange Screw M8 X 40

207684044

$1.48

36

Hex. Flange Elastic Nut M8

233281414

$1.47

37

Bushing

414936000

$13.99

38

Grease Fitting

408200700

$3.49

39

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

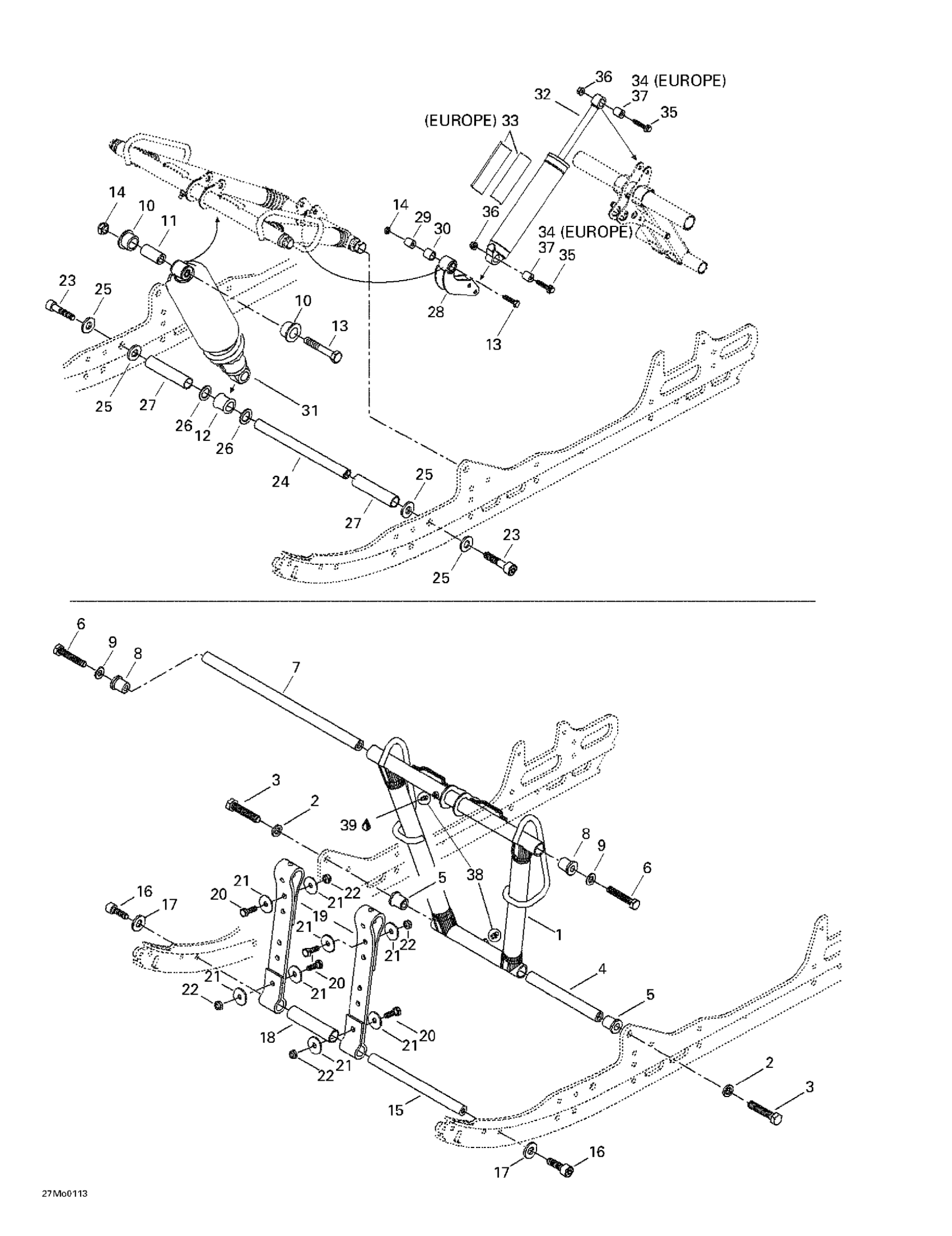

Ski-Doo Grand Touring 500/600/700, 2001 08- Front Arm Diagram

Front Arm

Washer

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

SHAFT - Call your local BRP dealership

CUSHION - Call your local BRP dealership

Hex. Screw M10 X 55, Scotch Grip | RT

SHAFT - Call your local BRP dealership

Bushing

Washer

Urethane Bushing

Bushing | Includes 240d to 240d1

Bushing

Hex. Screw M10 X 1.5 X 50

Elastic Locking Nut M10 X 1.5

AXLE - Call your local BRP dealership

Socket Head Screw M10 X 35, Scotch Grip

Washer

Spacer

STOPPER STRAP - Call your local BRP dealership

Hex. Screw M8 X 25

Flat Washer

Hex. Elastic Stop Nut M8

Socket Head Screw M12 X 35, Scotch Grip

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

Washer

Washer

SPACER - Call your local BRP dealership

Rocker

Rocker Axle

Cushion

Center Shock | Grand Touring 500. Grand Touring 600. Grand Touring 700.

Rear Shock

HPG Shock Kit (Europe) | Includes 7 - 9. Grand Touring 500.

HPG Decal (Europe)

Bushing

Hex. Flange Screw M8 X 40

Hex. Flange Elastic Nut M8

Bushing

Grease Fitting

SYNTHETIC GREASE, 400 G - Call your local BRP dealership
