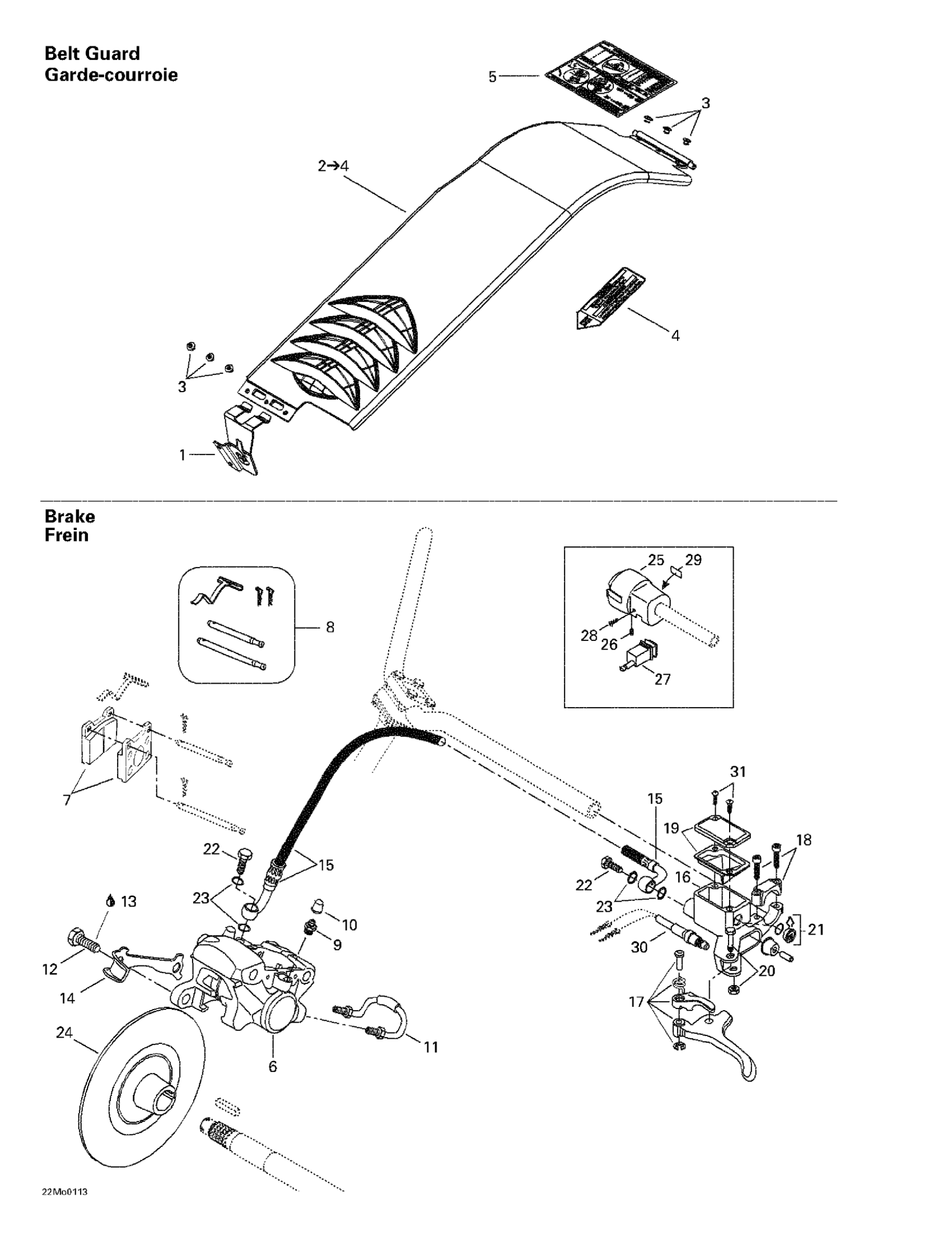

Ski-Doo Grand Touring 500/600/700, 2001 06- Hydraulic Brake And Belt Guard Diagram

Bracket

417300001

Unavailable

Belt Guard Ass'y | Includes 2 - 4.

417300002

Unavailable

Pop Rivet 3/16"

390402200

$0.35

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

Suspension Adjustment Decal | Grand Touring 500. Grand Touring 600. Grand Touring 700.

516000954

Unavailable

Caliper | Includes 6 - 11. 500 F.

415034500

Unavailable

Brake Pad Kit

415129172

$52.99

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

Hex. Screw M10 X 35

207103544

$1.58

Loctite 243, 10 ml

293800060

$21.49

Locking Tab

507029900

Unavailable

HOSE - Call your local BRP dealership

507032237

Unavailable

Master Cylinder Kit | Includes 20 - 26. This part replaces 507032294.

415130002

$369.99

LEVER - Call your local BRP dealership

507032428

Unavailable

Clamp And Screw Kit

507032477

$23.99

Cap

415029900

$41.49

Pin Ass'y

415030000

$19.99

WINDOW - Call your local BRP dealership

414990600

Unavailable

Banjo Bolt

414920500

$8.68

Washer

414920600

$1.90

Brake Disk

507032203

Unavailable

BRAKE DISK - Call your local BRP dealership

507031300

Unavailable

Brake Housing

515175307

Unavailable

Socket Set Screw M8 X 10

414440800

$4.12

Light Switch | 500 F.

515175390

Unavailable

SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership

250000022

Unavailable

Switch Decal

415025500

Unavailable

Microswitch

507032366

$98.99

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable
