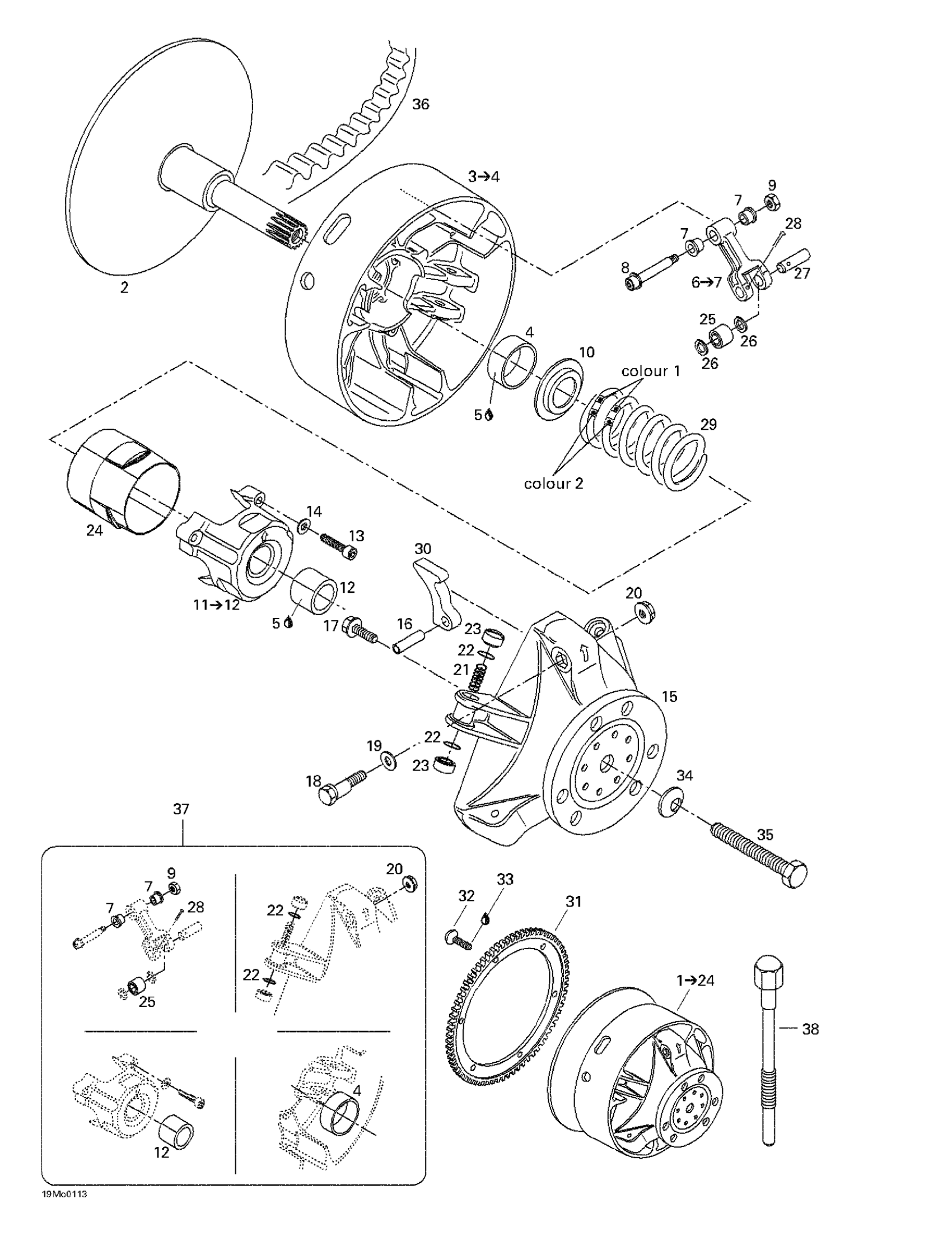

Ski-Doo Grand Touring 500/600/700, 2001 05- Drive Pulley Diagram

#

Description
Price

1

Drive Pulley Ass'y | Includes 1 - 24.

417222369

Unavailable

2

Fixed Flange

417222411

$539.99

3

SLIDING FLANGE ASSY - Call your local BRP dealership | Includes 2 to 4

417222241

Unavailable

4

Bushing

417004201

$25.99

5

Loctite 609, 10 ml

413703100

$26.99

6

LEVER ASSY - Call your local BRP dealership | Includes 5 to 6

417222383

Unavailable

7

Bushing

417004305

$11.52

8

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

9

Elastic Stop Nut M6

232561414

$0.55

10

Spring Seat

417222044

Unavailable

11

Spring Cover Ass‘Y | Includes 17 to 18

417222304

Unavailable

12

Bushing

417004501

$24.99

13

Socket Head Screw M6 X 40

250000038

$7.59

14

WASHER - Call your local BRP dealership

420245370

Unavailable

15

GOVERNOR CUP ASSY - Call your local BRP dealership

417222081

Unavailable

16

Pin M8 X 24

732804009

Unavailable

17

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

18

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

19

Washer

417005600

$4.09

20

Hex. Flange Nut M6

233061414

$1.68

21

Spring

417005700

$4.76

22

O-Ring

732401030

$0.98

23

Slider Shoe This part replaces 420460045.

417223021

$5.90

24

Guard

417222176

Unavailable

25

Roller

417222947

$21.99

26

Stopper Washer

417004302

$15.90

27

Pin

417004308

$13.99

28

Cotter Pin

250400060

$2.00

29

Spring, Blue/yellow | S-LEV&P-146

414689500

$46.49

Spring (Blue/Blue)

414689400

$41.49

30

Ramp 292X | Grand Touring 500.

417005292X

Unavailable

Ramp 281 | Formula Deluxe 500. Formula Deluxe 600.

417005281

Unavailable

RAMP 299 - Call your local BRP dealership

417222372

Unavailable

31

Ring Gear

417300057

Unavailable

32

Hex. Screw M8 X 16

236281684

$4.12

33

Loctite 271, 10 ml

293800005

$26.99

34

Spring Washer 14 mm

250200006

$6.99

35

Drive Pulley Bolt

417120000

$65.49

36

Drive Belt

414860700

$104.99

Drive Belt

417300585

$154.99

37

Clutch Repair Kit

417006100

$189.99

38

Puller This part replaces 529022400.

529000064

$71.99
