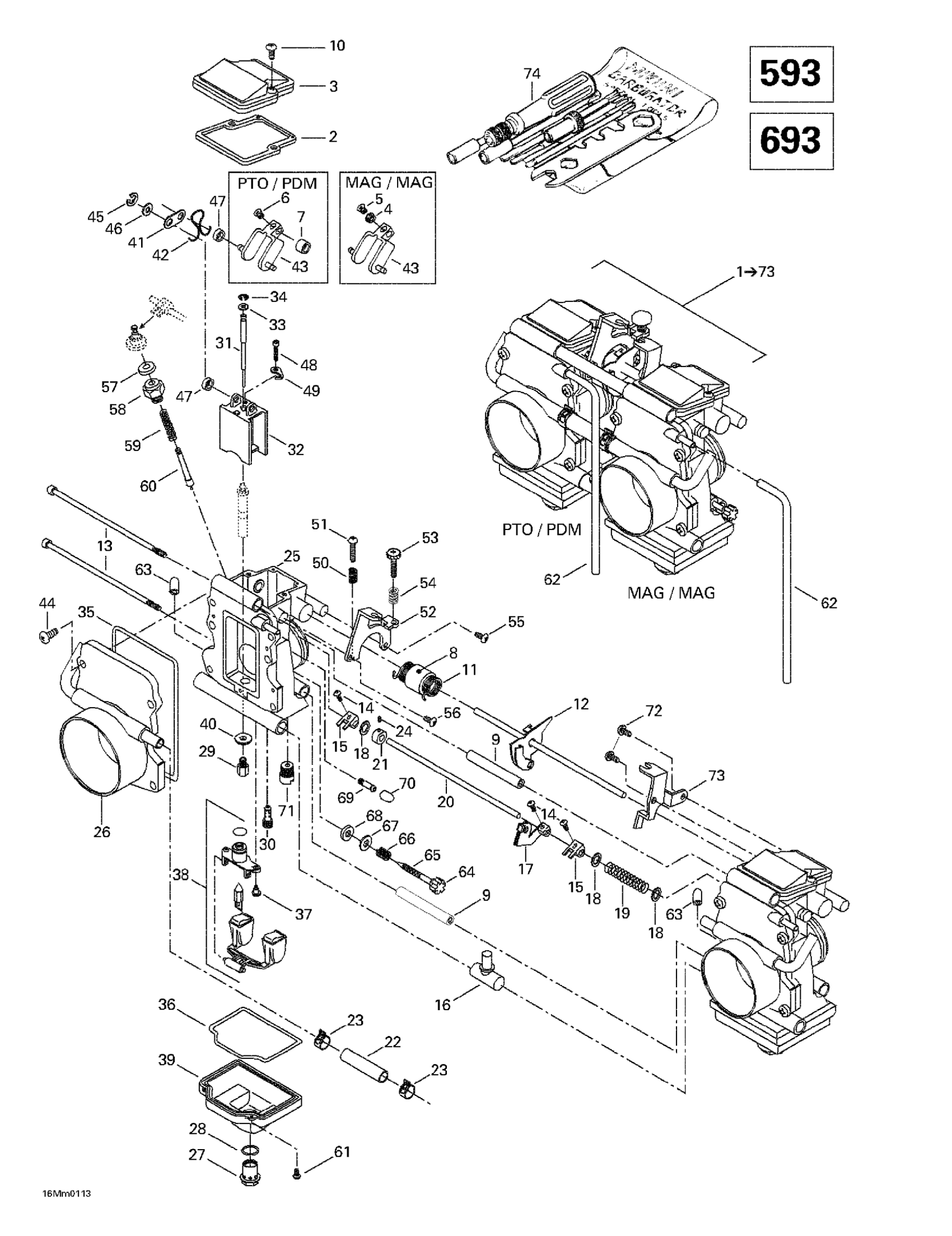

Ski-Doo Grand Touring 500/600/700, 2001 02- Carburetors (593 Diagram

#

Description
Price

1

CARBURETOR KIT TM 40 B-112 - Call your local BRP dealership | Formula Deluxe 600.

403138670

Unavailable

CARBURETOR KIT TM 40 B-115 - Call your local BRP dealership | Formula Deluxe 700.

403138671

Unavailable

2

Gasket

404161940

$24.49

3

COVER - Call your local BRP dealership

404161939

$38.99

4

Ring

404161937

Unavailable

5

Screw

404161936

Unavailable

6

Screw

404161928

$12.70

7

Ring

404161926

$12.70

8

Ring

404161925

$12.70

9

RING - Call your local BRP dealership

404161924

Unavailable

10

Screw

404161923

$7.23

11

Spring

404161915

Unavailable

12

Throttle Shaft

404161914

Unavailable

13

Screw

404161911

$34.99

14

Screw

404161910

$12.70

15

Lever

404161909

$17.99

16

Nipple

404161905

$47.99

17

Starter Lever

404161901

$35.99

18

Packing

404161894

$12.70

19

Spring

404103500

$8.47

20

Shaft | Formula Deluxe 600. Formula Deluxe 700.

404161952

Unavailable

21

Ring | Formula Deluxe 600. Formula Deluxe 700.

404161951

Unavailable

22

Hose | Grand Touring 500.

404161956

$19.49

23

Clip | Grand Touring 500.

404161957

$17.08

24

Screw | Formula Deluxe 600. Formula Deluxe 700.

404161949

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Funnel (PTO)

404161959

Unavailable

Funnel (MAG)

404161958

Unavailable

27

DRAIN SCREW - Call your local BRP dealership

404161955

Unavailable

28

O-Ring

404161945

$9.06

29

Main Jet 500 | 600

404108200

$5.21

Main Jet 520 | Formula Deluxe 700.

404115100

Unavailable

30

Pilot Jet 20 | 600

404108600

$5.21

Pilot Jet 17.5

404161944

$5.21

31

Needle J8-9hfy02-53 | Formula Deluxe 600.

404161954

Unavailable

NEEDLE J8-9ZLY03-58 - Call your local BRP dealership | 700

404161953

Unavailable

32

Piston Valve 2.0

404161950

Unavailable

33

Packing

404137600

$6.38

34

E-Ring

404152200

$4.14

35

O-Ring

404161935

$24.49

36

O-Ring

404161961

$17.99

O-RING - Call your local BRP dealership | Formula Deluxe 600.

404161934

Unavailable

37

Screw

404161933

$11.18

38

Float

404161932

$122.49

39

Float Body Ass'y | Formula Deluxe 600.

404161931

Unavailable

BODY FLOAT ASS'Y - Call your local BRP dealership

404161960

Unavailable

40

WASHER - Call your local BRP dealership

404161862

Unavailable

41

Plate

404161930

Unavailable

42

Clip

404161929

Unavailable

43

Lever (PTO)

404161927

Unavailable

Lever (MAG)

404161938

Unavailable

44

Screw

404161923

$7.23

45

E-Ring

404138300

$11.18

46

Washer

404161922

Unavailable

47

Ring

404161921

Unavailable

48

Screw

404161920

$12.70

49

Plate

404161919

$12.70

50

Spring

404161918

$6.45

51

Screw

404161917

$12.70

52

Bracket TM 40-98 (PTO)

404161916

Unavailable

53

Adjustment Screw

404137500

$19.49

54

Spring

404161913

$12.70

55

Screw

404161912

$6.38

56

Screw

404136100

$6.38

57

Cap

404140000

$11.18

58

Guide Holder

404136900

$16.49

59

Spring

404161908

$12.77

60

Plunger Ass'y

404161907

$31.99

61

Screw

404161906

$6.38

62

HOSE - Call your local BRP dealership

404161904

Unavailable

63

Cap

270500095

$9.59

64

Cap

404161899

$12.18

65

Adjuster

404161898

$23.99

66

Spring

404161897

$5.95

67

Washer

404161896

$6.06

68

Packing

404161895

$9.06

69

Nipple

404153400

$12.16

70

CAP - Call your local BRP dealership

404154900

Unavailable

71

Jet 331-1.1 | Formula Deluxe 600.

404161900

Unavailable

72

Screw

404161903

$3.08

73

Bracket, Mag

404161902

Unavailable

74

Tool Kit

407112000

Unavailable
