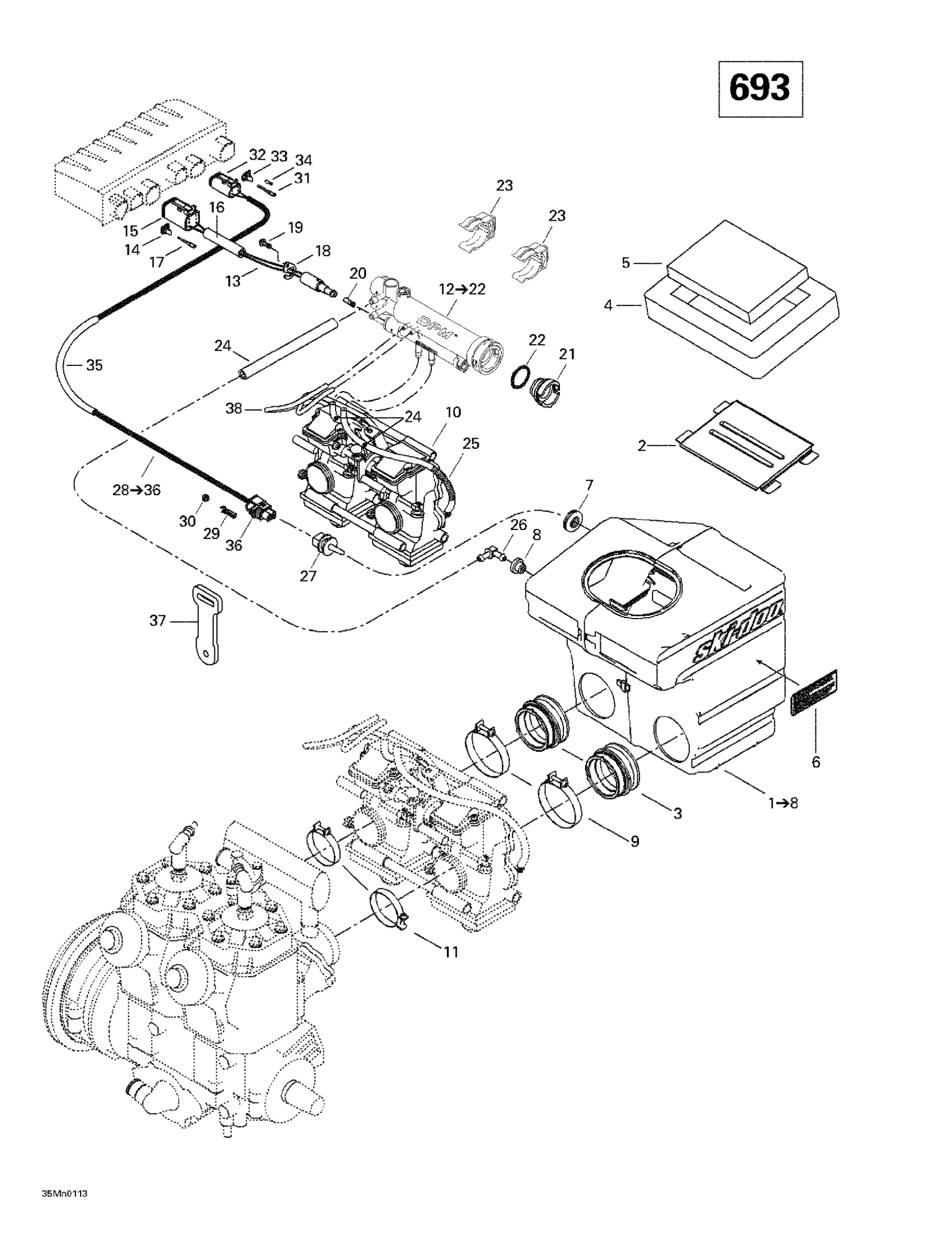

Ski-Doo Grand Touring 500/600/700, 2001 02- Air Intake System (693) Diagram

#

Description
Price

1

Air Intake Ass'y (GSE/GS) | Includes 1 - 8. Formula Deluxe 700.

508000169

Unavailable

2

INTAKE GRILL - Call your local BRP dealership

508000004

Unavailable

3

Air Intake Adaptor, 40 mm

508000092

Unavailable

4

Lower Foam

508000099

Unavailable

5

Air Filter

508000154

$23.49

6

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

7

GROMMET - Call your local BRP dealership

570065500

Unavailable

8

Grommet

513032908

$10.49

9

Gemi Clamp

508000346

$10.33

10

CARBURETOR KIT TM 40 B-115 - Call your local BRP dealership | Formula Deluxe 700.

403138671

Unavailable

11

Gemi Clamp

512059835

$11.60

12

Pressure Manifold Ass'y (GSE/GS) | Includes 14 - 26. Formula Deluxe 700.

512059408

Unavailable

13

Pressure Manifold Harness | Includes 4 - 8.

515175271

Unavailable

14

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

Unavailable

15

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

Unavailable

16

Tubing 10 MM 1000MM Long

219704407

$2.79

17

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

18

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

19

Screw K40 X 10

241140060

$1.48

20

STARTER JET - Call your local BRP dealership

404161825

Unavailable

21

Cap | Grand Touring 600. Grand Touring 700.

512058949

Unavailable

22

O-Ring | Grand Touring 600. Grand Touring 700.

512058950

Unavailable

23

SUPPORT - Call your local BRP dealership

512058919

Unavailable

24

Polyurethane Hose 10000Mm Long

219704410

$56.99

25

Was 409901700 Tubing (9 mm)

219704399

$84.99

26

Elbow Male Connector

414580600

$4.23

27

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

28

Temperature Harness | Includes 33 - 41. Formula Deluxe 600. Formula Deluxe 700.

515175589

Unavailable

29

Female Terminal

278000998

$4.39

30

Wire Seal

278000999

$3.19

31

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

32

Female Terminal Housing (4 circuits)

515175245

Unavailable

33

Female Lock (4 circuits)

515175246

Unavailable

34

PLUG - Call your local BRP dealership

515175303

Unavailable

35

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

36

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

515175588

Unavailable

37

CARBURETOR LATCH - Call your local BRP dealership

512059372

Unavailable

38

HOSE - Call your local BRP dealership

404161904

Unavailable
