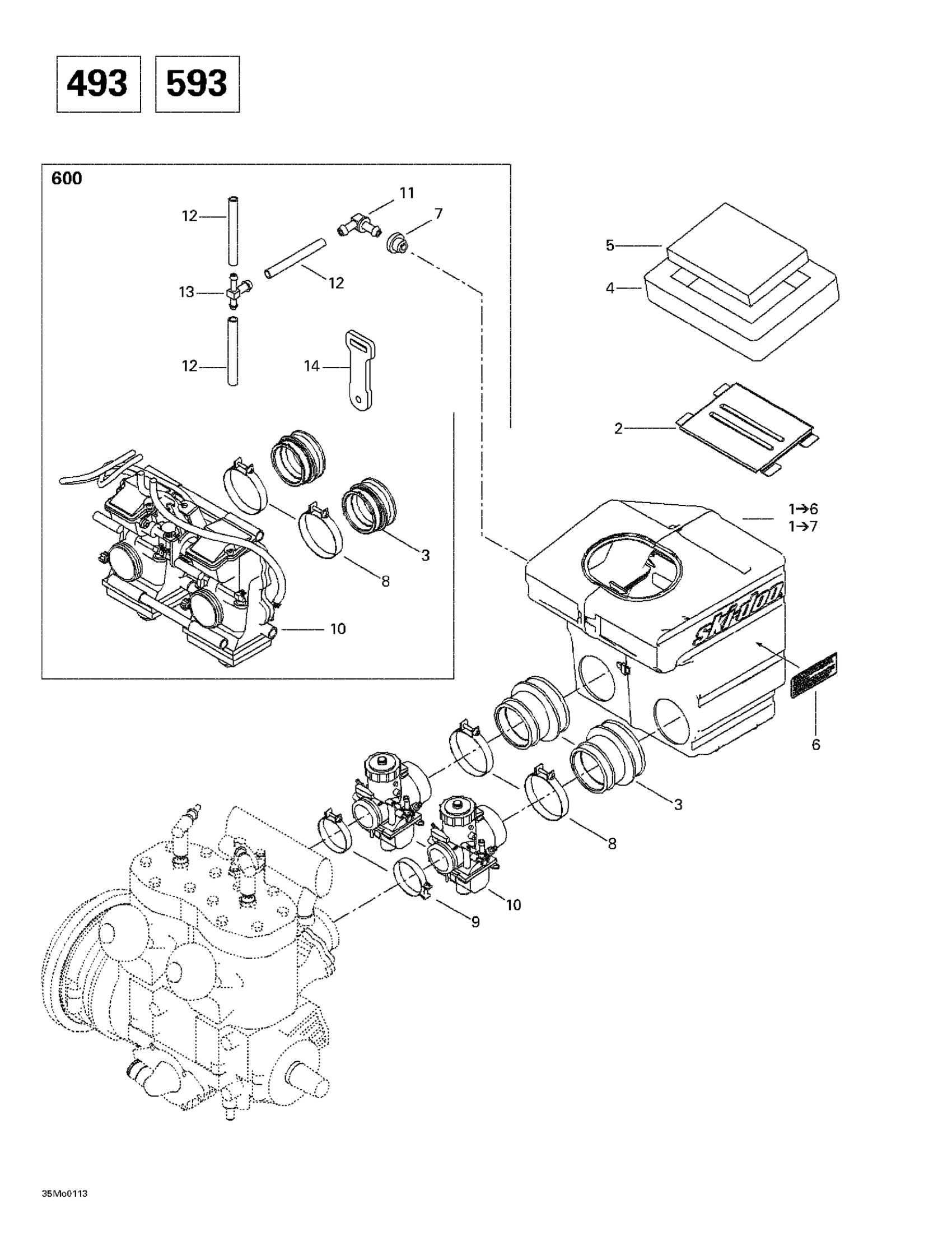

Ski-Doo Grand Touring 500/600/700, 2001 02- Air Intake System (493, 593) Diagram

#

Description
Price

1

Air Intake Ass'y | Includes 1 - 6. Formula Deluxe 500.

508000153

Unavailable

1

Air Intake Ass'y (Standard) | Includes 1 - 7. Formula Deluxe 600.

508000139

Unavailable

2

INTAKE GRILL - Call your local BRP dealership

508000004

Unavailable

3

Air Intake Adaptor (38 mm) | Formula Deluxe 500.

508000073

Unavailable

Air Intake Adaptor, 40 mm

508000092

Unavailable

4

Lower Foam

508000099

Unavailable

5

Air Filter

508000154

$23.49

6

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

7

Grommet

513032908

$10.49

8

Clamp | Formula Deluxe 500.

508000046

Unavailable

Gemi Clamp

508000346

$10.33

9

GEMI CLAMP - Call your local BRP dealership

512059005

Unavailable

Gemi Clamp

512059835

$11.60

10

VM 38-429 Carburetor | Formula Deluxe 500.

403138581

Unavailable

CARBURETOR KIT TM 40 B-112 - Call your local BRP dealership | Formula Deluxe 600.

403138670

Unavailable

11

Elbow Male Connector

414580600

$4.23

12

Polyurethane Hose 10000Mm Long

219704410

$56.99

13

T-Fitting

572045500

$7.51

14

CARBURETOR LATCH - Call your local BRP dealership

512059372

Unavailable
